Applies to: Z4

Starting the machine

The workflow for restoration is as follows:

→

→

→

→

→

→

→

  1. Make sure that the machine is properly installed.
  2. Switch on the machine at the main power switch.
  3. Machines with internal CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Press the start button.
  4. Machines with external CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Start the CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

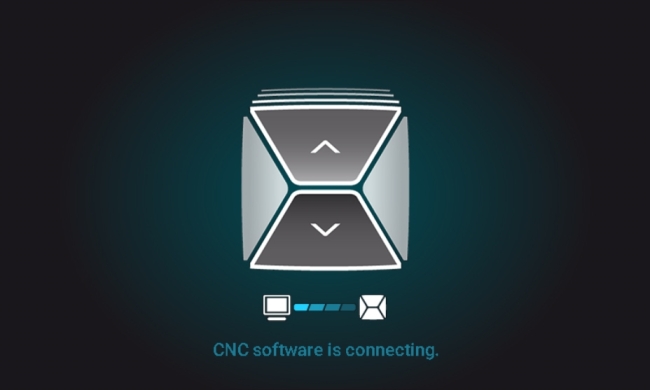

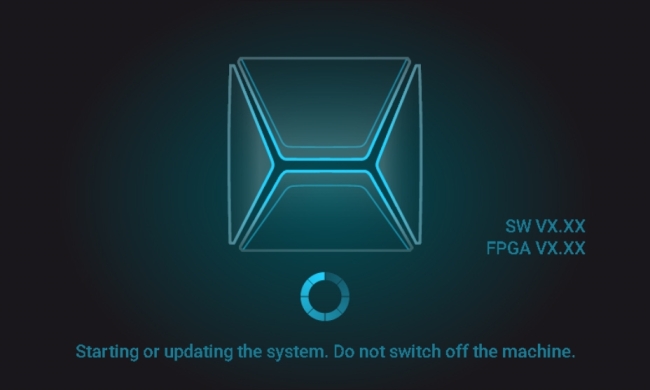

    • The machine indicates on the touchscreen that it is starting up.

      •

  5. Wait until the machine has started up. This usually takes up to 2 minutes, but can take significantly longer in case of a Windows® update.

    6. The machine will not reference if the working chamber door is open.

  6. If the working chamber door is open, confirm the respective dialog on the touchscreen to close the door.
    • After the machine has referenced, the Home section displays on the touchscreen.



If the touchscreen displays that there is a tool in the collet chuck which needs to be removed: Starting the machine with a tool in the collet chuck

Starting the machine with a tool in the collet chuck

Under some circumstances like a power failure, there can be a tool in the collet chuck of the spindle when you start the machine.

CAUTION

Danger of cuts and burns when touching tools with your bare hands

If you handle tools on the cutting surface, you may be injured. As the tool may be very hot, you may also suffer from skin burns.

  • Only touch tools at their shank.
  • When handling tools, wear protective gloves.
NOTICE

Machine damage if you do not remove the tool

If the tool remains in the spindle after confirmation of the message, it will collide with and damage machine parts.

  • Remove the tool as described below.
  1. Start the machine.
    • The touchscreen displays that there is a tool in the collet chuck. The working chamber door opens.

  2. CAUTION!Wear gloves.

  3. Hold the tool in the collet chuck in place.

    4.

  4. Confirm the current message.
    • The collet chuck opens.
  5. Remove the tool from the collet chuck.



  6. Confirm the current message.
    • The working chamber door closes. The machine is ready for operation.
