Operating the working chamber door and multi-purpose drawer
The workflow for restoration is as follows:
→
→
→
→
→
→
→

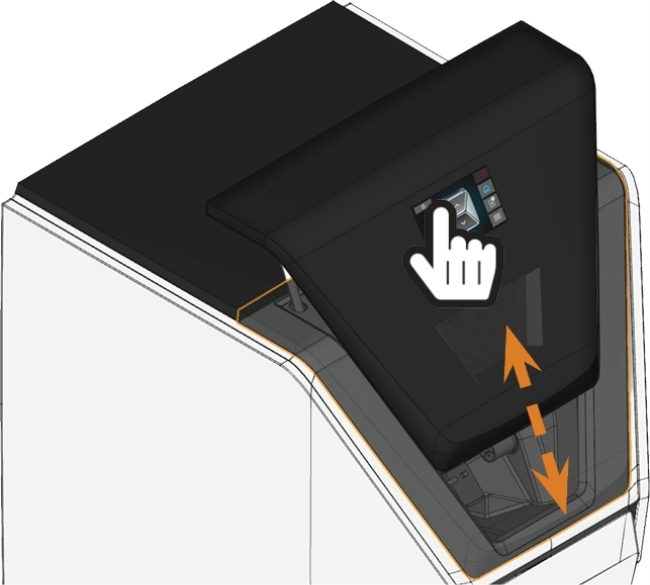

Open and close working chamber door
NOTICE
Damaging of the machine by operating the working chamber door inappropriately
The working chamber door is operated by electricity. If you manually open or close the working chamber door, you can damage the machine.
- Manually open or close the working chamber door only in case of an emergency.
- Before you manually open or close the working chamber door, read the respective information in the chapter .
Open and close multi-purpose drawer
NOTICE
Damaging of the machine by operating the multi-purpose drawer inappropriately
If you open the multi-purpose drawer by force, if you do not maintain it properly or if you do not remove leaked cooling liquid, the machine may get damaged.
- Before you pull out the multi-purpose drawer, unlock it.
- Check regularly if the area below the cooling liquid tank is dry and remove leaked cooling liquid immediately.

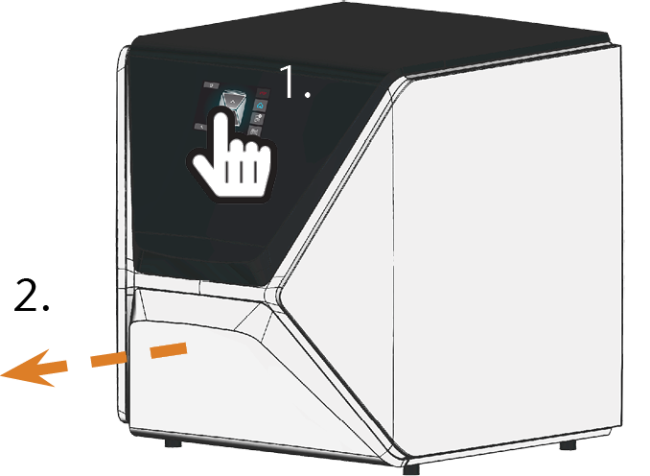

To unlock the multi-purpose drawer, select the lower arrow of the depicted icon in the Home section of the touchscreen.- After a couple of seconds, the drawer will move slightly forward.
- Pull the drawer open.
- To close the multi-purpose drawer, push it until it locks back in place.
- You will hear a clicking sound.
