Maintenance and do-it-yourself

Several times per day

Once per day

Action	Recommended interval	Procedure / Parts	Tool illustration
Exchanging the cooling liquid and cleaning the cooling liquid tank	3 operating hours After work	Brush, Water, Cooling liquid
Daily cleaning of the working chamber	After work If soiled	Wet cloth

Once per week

Action	Recommended interval	Procedure / Parts	Tool illustration
Weekly cleaning of the working chamber	Once per week If soiled If tool magazines are no longer recognized or are difficult to move when mounted	Wet cloth, Dry cloth, Brush, Collet chuck grease
Cleaning the collet chuck	Once per week In the event of out-of-true running	Spindle service set, Collet chuck grease
Cleaning the nozzle plate	Once per week In case of irregular spray patterns	Interdental brush

Every 4 weeks

When necessary

Action	Recommended interval	Procedure / Parts	Spare part illustration
Updating the software and firmware	When an update is available
Cleaning the housing		Microfiber cloth, Water, Mild cleaning agent (optional)
Exchanging the main fuse		Spare fuse T6,3A L250V

Wear parts that you can exchange yourself

Wear part	Recommended interval	Procedure / Parts	Spare part illustration
View window wiper	200 operating hours*
Tool magazine inserts	500 operating hours* Every 2 years*
Collet chuck	1,000 operating hours* Every year*	Remove and insert collet chuck as when cleaning it
Collet chuck (Blank holder)	1,000 operating hours* Every 2 years*	Remove and insert collet chuck as when cleaning it

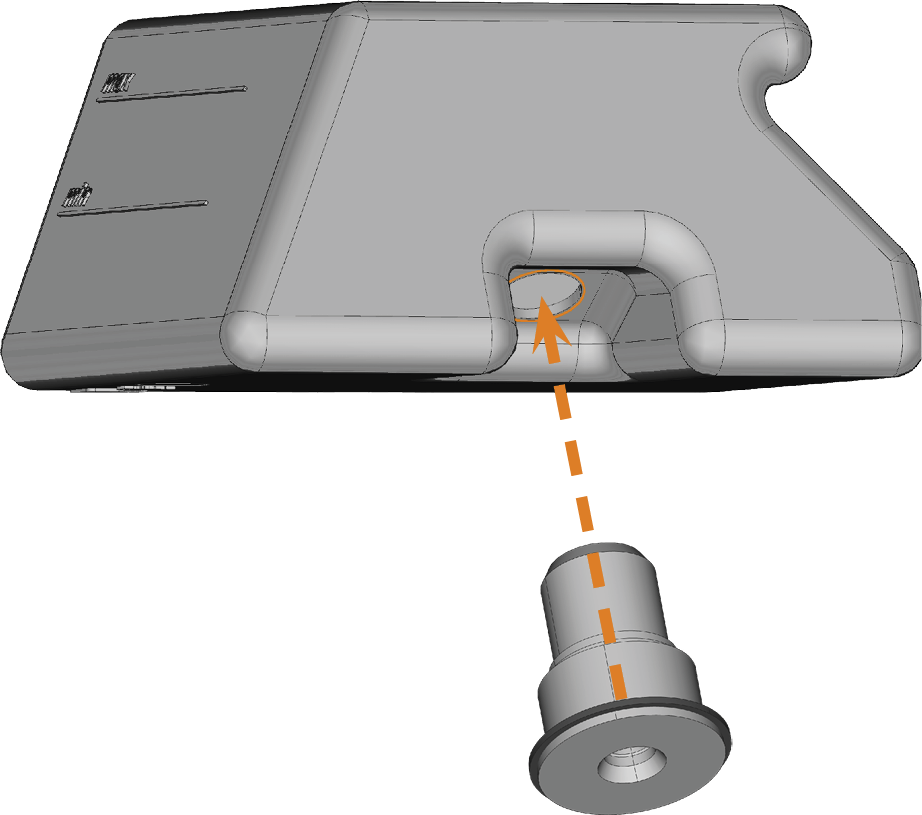

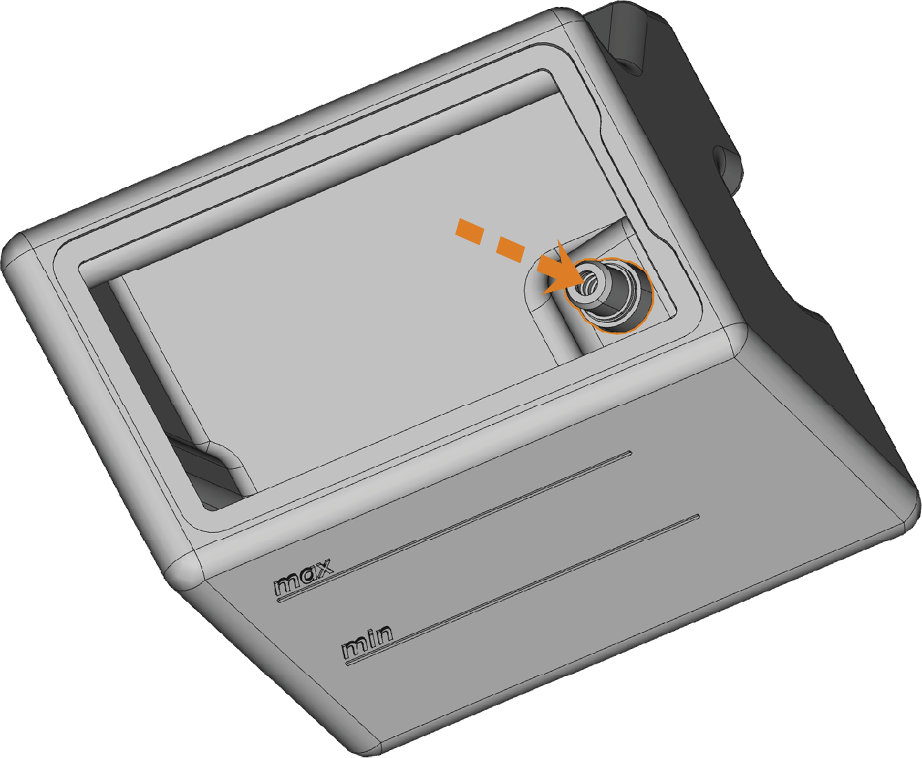

Coupling of the cooling liquid tank	1,000 operating hours* Every year*

Wear parts that customer service exchanges for you

Wear part	Recommended interval	Procedure / Parts	Spare part illustration
Cooling liquid pump	1,000 operating hours*
Spindle bearings (requires spindle exchange by customer service)	1,000 operating hours*
Air intake filter	1,000 operating hours*

*These are recommendation guidelines. Depending on the processing material and how well the machine is cleaned, these values may differ.

For your convenience, the machine lists all basic maintenance tasks in the Maintenance section on the touchscreen. In the Maintenance section, you can see when the individual tasks are due.

You can open the maintenance section as follows:

1. To open the Home section, select the depicted icon.
2. To open the Maintenance section, select the depicted icon.
• The Maintenance section displays. The touchscreen lists all required maintenance tasks in order of their urgency.

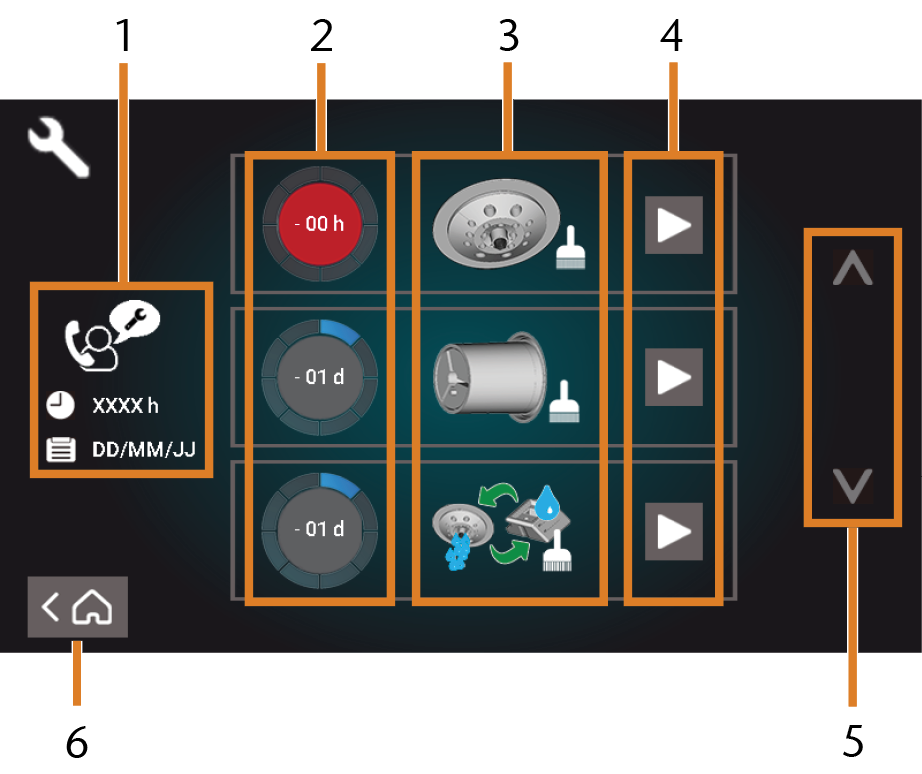

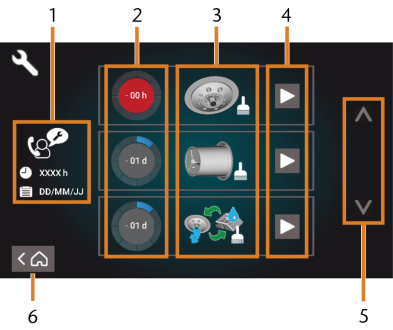

The maintenance section with the list of maintenance tasks

1. Preventive maintenance: Remaining operating hours / due date
2. Circles showing the urgency of the task
3. Illustrations depicting the individual tasks
4. Start icons to begin the individual tasks
5. Arrows to scroll through the list
6. Icon to go back to the Home section

In the center of the screen the list with all maintenance tasks displays. The higher a task is listed, the more urgent it is.

• Use the circles in the first column to determine how much time remains until the task is due:

• The numbers in the circles show how many operating hours (h) or days (d) are left before the task must be performed.
• The number of blue segments decreases over time.
• If a circle is red, the corresponding task is due.

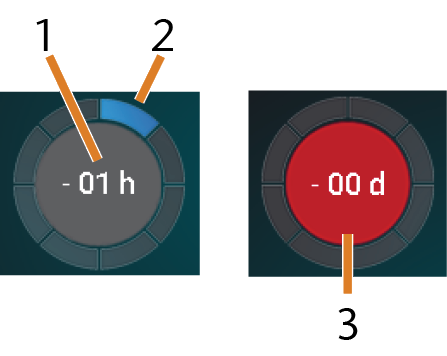

Circles indicating when a task is due

1. The remaining time (here: 1 operating hour)
2. Only 1 segment remains because the task is due soon
3. The red circle indicates that this task is due

List of all maintenance tasks

The following maintenance tasks and illustrations can display on the touchscreen:

1 Only customer service can complete this task and reset the time interval.

2 This task only appears if the machine is not regularly connected to the Internet. The task is completed automatically as soon as a connection is established.

Performing maintenance tasks

The Maintenance section contains interactive on-screen guides for every maintenance task. To perform the maintenance tasks you need to use the respective guide. With the guides you can do the following:

• Read the basic steps required to perform individual maintenance tasks.
• Execute necessary machine functions for individual maintenance tasks.
• Mark individual tasks as complete.

• To start a maintenance task, select the depicted icon for the respective entry in the Maintenance section.
• The corresponding on-screen guide opens. It has several pages which will guide you through the maintenance task.

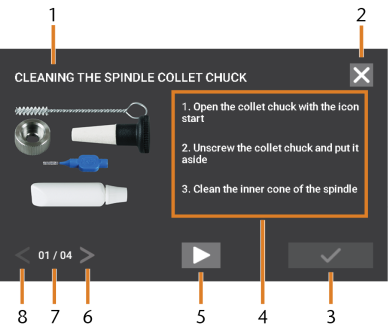

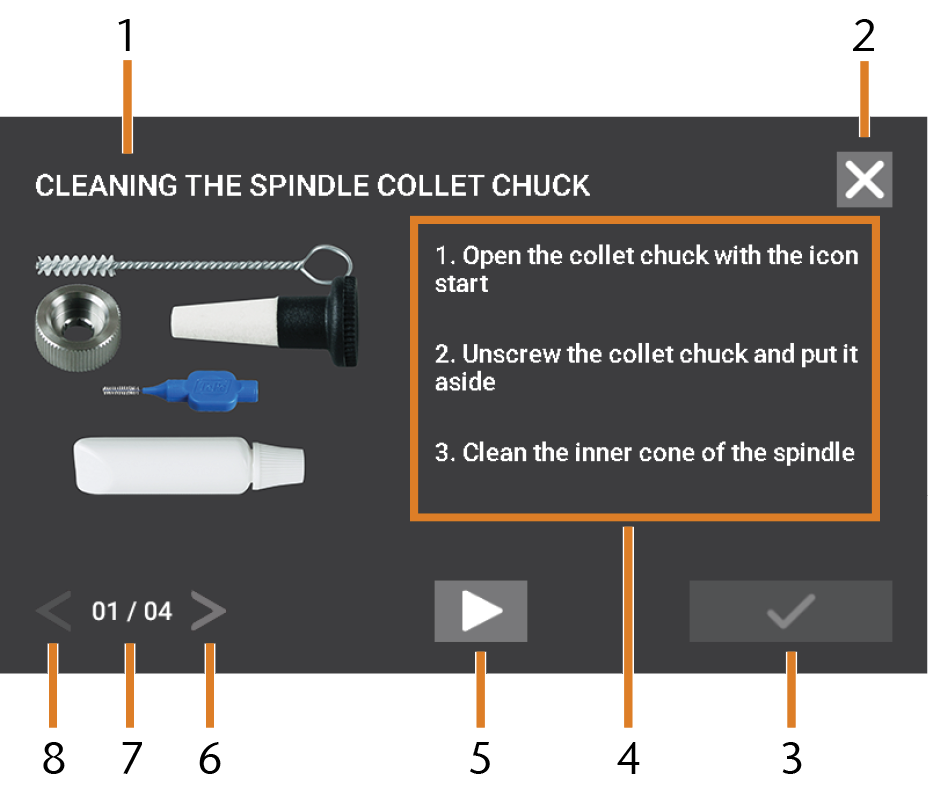

Interactive on-screen guide for maintenance task

1. Title of the on-screen guide
2. Icon to close the guide without marking the task as complete
3. Icon to mark the task as complete
4. Numbered instructions
5. Icon for a required machine operation (e. g. open collet chuck – only for some tasks)
6. Go to next page
7. Current and maximum page of the guide
8. Go to previous page

You can use the on-screen guides as follows:

1. Select the arrows [6/8] to navigate through the guide.
2. Follow the instructions [4] on every page of the guide.
3. Perform the maintenance task as required.
4. If the depicted icon displays, select it to execute the required machine function for the maintenance task.
• The icon changes its color as depicted and the the machine function is executed.
5. To mark the task as complete, select the depicted icon.
6. To close the guide without marking the task as complete, select the depicted icon.

Leaving the Maintenance section

To close the Maintenance section, do as follows:

1. Ensure that the list with maintenance tasks displays.
2. To go back to the Home section, select the depicted icon.

Cleaning the working chamber includes the following components:

• Measuring key
• Blank holder
• View window
• Webcam
• Tool magazines
• Tool magazine holder
• Nozzle plate
• Sealing lip

These components have different maintenance intervals according to the maintenance table. Therefore, depending on the components that need to be cleaned, perform daily or weekly cleaning of the working chamber.

• When performing the weekly cleaning, also perform the daily cleaning.

1. Have ready:
   • A wet cloth
   • A mild cleaning agent (optional)
   • A suction unit
   • Small cleaning brush for the blank holder
2. Open the working chamber door.
3. Remove the tool magazine from the working chamber and clean it with the damp cloth.
4. Thoroughly clean all surfaces and gaps in the working chamber with the damp cloth. Use a mild cleaning agent if necessary.
5. Suction any machining residue off of the measuring sensor from a distance of 3 cm.

Performing the weekly cleaning

1. Have ready: The cleaning brush for the blank holder.
2. Remove the tool magazine from the working chamber. Clean it with the cloth and the brush.
3. Open the multi-purpose drawer. Clean the other tool magazines.
4. Clean the blank holder with its respective brush.


1. Tool magazine holder
2. Measuring sensor with protective cage (marked orange)
3. Blank holder
5. Screw the protective cap off the webcam and clean the inside of the cap with a dry cloth.


Screwing the protective cap off the webcam

6. Clean the webcam with a wet cloth. Screw on the protective cap.
7. Clean the tool magazine holder thoroughly.
8. Apply a bit of collet chuck grease to the bolts of the tool magazine holder.
9. To apply the collet grease to the holes of all tool magazines, mount all tool magazines once.

You need to clean the collet chuck with the spindle service set which was provided with your machine.

Alongside the current improved version of the spindle service set, there is a previous version.

Depending on which spindle service set you use, follow the corresponding instructions.

Current spindle service set

1. Cleaning brush
2. Knurled nut
3. Tube of collet chuck grease
4. Cleaning cone

Previous spindle service set

1. Cleaning brush
2. Knurled nut
3. Tube of collet chuck grease
4. Cleaning cone

Instructions for the current spindle service set

NOTICE

Damaging of the spindle when cleaning with compressed air

If you clean the collet chuck with compressed air, the spindle bearings can be damaged.

• Clean the collet chuck only with the appropriate service set.

Spindle service set

1. Cleaning brush
2. Knurled nut
3. Tube of collet chuck grease
4. Cleaning cone

To clean the collet chuck do the following:

1. Have the spindle service set ready.
2. Start the maintenance by selecting the corresponding entry in the Maintenance section on the touchscreen.
• The following happens:
1. The on-screen quick guide displays.
2. The working chamber door opens.
3. Open the collet chuck using the quick guide.
4. Untighten the collet chuck with the knurled nut:
   1. Insert the pin of the knurled nut into the collet chuck.
   2. Make sure that the collet chuck is properly seated in the recess of the knurled nut (marked orange).




   3. Twist the knurled nut counterclockwise.




5. Unscrew the collet chuck by hand and remove it.




6. Put the knurled nut and the collet chuck aside within reach.
7. Clean the inner cone of the spindle with the cleaning cone of the service set.




8. Clean the collet chuck with the brush of the service set.

   1. Insert the brush into the collet chuck until the end of the brush aligns (marked orange) with the end of the collet chuck.

      NOTICE! Do not push any further because otherwise dirt my get into the thread of the collet chuck.





   2. Rapidly pull the brush out of the collet chuck and twist it at the same time.





   3. Repeat the last 2 steps multiple times.

NOTICE
Damaging of the spindle when using the wrong grease or applying the grease incorrectly
If you use unsuitable grease or if grease gets into the longitudinal slots of the collet chuck, the machine may get damaged.
• Before applying the grease, ensure that the collet chuck is perfectly clean.
• Ensure that no grease gets into the longitudinal slots of the collet chuck.
• Only use a very small amount of grease, less than the size of a pinhead.
• Only use the provided grease of the service set.

9. Thoroughly clean the complete outer surface of the collet chuck with a clean and dry cloth.





10. Put a small amount of the collet grease on the index finger and smear it with the thumb.
11. Apply the smeared collet chuck grease to the flanks of the collet chuck (marked blue). Make sure that no collet chuck grease gets into the slots (marked red).




12. Insert the collet chuck (marked orange) into the spindle. Screw in the collet chuck by twisting it clockwise by hand.





13. Insert the pin of the knurled nut into the collet chuck. Make sure that the collet chuck is properly seated in the recess of the knurled nut.

NOTICE! Rotational imperfections when the collet chuck is not tightened properly.

14. Tighten the collet chuck with the knurled nut:
    1. Insert the pin of the knurled nut into the collet chuck.
    2. Make sure that the collet chuck is properly seated in the recess of the knurled nut (marked orange).




    3. Turn the knurled nut clockwise until the collet chuck fits tightly in the spindle.




15. Store the spindle service set in a safe place.
16. Clean the nozzle plate.

Instructions for the old spindle service set

NOTICE

Damaging of the spindle when cleaning with compressed air

If you clean the collet chuck with compressed air, the spindle bearings can be damaged.

• Clean the collet chuck only with the appropriate service set.

Spindle service set

1. Cleaning brush
2. Knurled nut
3. Tube of collet chuck grease
4. Cleaning cone

To clean the collet chuck do the following:

1. Have the spindle service set ready.
2. Start the maintenance by selecting the corresponding entry in the Maintenance section on the touchscreen.
• The following happens:
1. The on-screen quick guide displays.
2. The working chamber door opens.
3. Open the collet chuck using the quick guide.
4. Put the knurled nut to the spindle with one hand. With the other hand insert the measuring pin into the collet chuck and keep holding it.




5. Loosen the collet chuck with the knurled nut. Unscrew the collet chuck by hand or with the knurled nut.
6. Remove the measuring pin from the collet chuck. Then put it aside within reach together with the knurled nut.
7. Clean the inner cone of the spindle with the cleaning cone of the service set.




8. Clean the collet chuck with the brush of the service set.



1. Longitudinal slot
2. Cleaning brush
NOTICE
Damaging of the spindle when using the wrong grease or applying the grease incorrectly
If you use unsuitable grease or if grease gets into the longitudinal slots of the collet chuck, the machine may get damaged.
• Before applying the grease, ensure that the collet chuck is perfectly clean.
• Ensure that no grease gets into the longitudinal slots of the collet chuck.
• Only use a very small amount of grease, less than the size of a pinhead.
• Only use the provided grease of the service set.
9. Put a small amount of the collet grease on the index finger and smear it with the thumb.
10. Apply the smeared collet chuck grease to the flanks of the collet chuck (marked blue). Make sure that no collet chuck grease gets into the slots (marked red).




NOTICE! Rotational imperfections when the collet chuck is not tightened properly.

11. Insert the measuring pin into the collet chuck with one hand and keep holding it. Screw the collet chuck with the knurled nut in your other hand tightly into the spindle.
12. Remove the measuring pin from the collet chuck and store it together with the other components of the spindle service set.
13. Clean the nozzle plate.

Clean the openings in the nozzle plate every time you clean the collet chuck.

1. Have the interdental brush ready.
2. Move the axes into the cleaning position by selecting the depicted icon in the Machining view in DentalCNC.
3. Open the working chamber door.

4. Clean the smaller openings in the inner area of the nozzle plate. For this, move the interdental brush up and down.



   (The number of nozzles in your machine may vary.)

5. Clean the area around the collet chuck with a small brush.

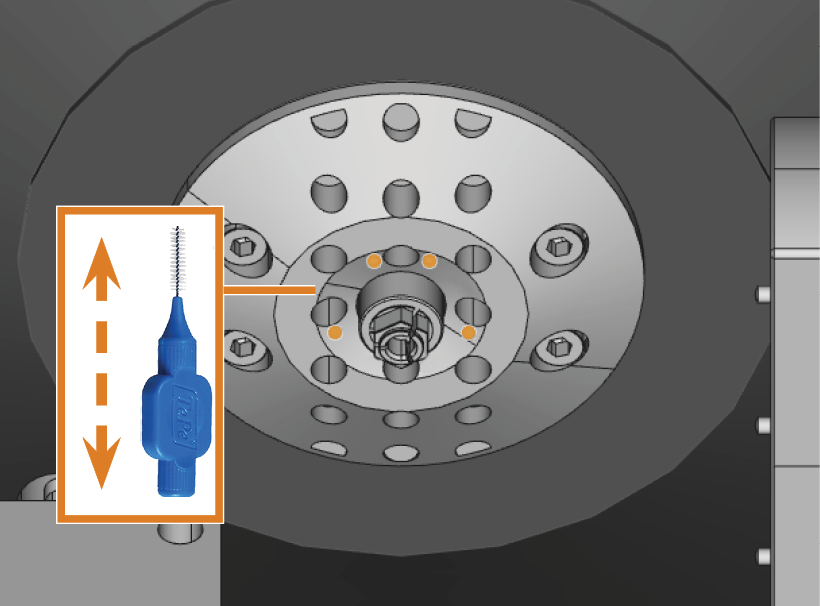

Cleaning the nozzle plate; nozzles marked orange (the number of nozzles in your machine may be different)

1. Have ready:
   • Block holder service set
   • Collet chuck grease

Block holder service set
1. Torque screwdriver (1.8 Nm)
2. Cleaning cone
3. Cleaning brush
4. Tube of collet chuck grease
NOTICE
Damaging of the block holder when using the wrong torque screwdriver or performing the maintenance with the machine switched off
If you use a torque screwdriver other than the one included in the scope of delivery, or if you perform the maintenance with the machine switched off, the block holder can get damaged.
• Ensure that the machine is switched on during the entire duration of the repair.
• Only use the provided torque screwdriver.
• Ensure that you apply a maximum torque of 1.8 Nm.
2. Switch on the machine at the main power switch.
3. Open the working chamber door.
4. Insert the bit of the torque screwdriver into the collet chuck and hold it in place.
5. Put the torque screwdriver on the bit and unscrew the screw by twisting the torque screwdriver.


Loosening the screw of the blank holder collet chuck

6. Remove the collet chuck and the screw from the blank holder. Put both items aside within reach.


Removing the collet chuck from the blank holder

7. Clean the inner cone of the blank holder with the cleaning cone of the service set.
8. Clean the collet chuck with the brush of the service set.
NOTICE
Damaging of the collet chuck when using the wrong grease or applying the grease incorrectly
If you use unsuitable grease or if grease gets into the longitudinal slots of the collet chuck, the machine may get damaged.
• Before applying the grease, ensure that the collet chuck is perfectly clean.
• Ensure that no grease gets into the longitudinal slots of the collet chuck.
• Only use a very small amount of grease, less than the size of a pinhead.
• Only use the provided grease of the service set.
9. Clean the outside of the collet chuck.
10. Grease the collet chuck. Apply the grease only to the conical surface of the collet chuck.



Greasing the collet chuck; surface in which grease is to be applied is marked in blue; slot that may not be greased is marked in red

11. Check the condition of the fixing screw and replace it by a spare screw if necessary.
12. Push the collet chuck with fixing screw into the blank holder as far as you can. Twist the collet chuck until it snaps in place and is properly seated. Depending on the position you may need to twist it up to 360°.


Inserting the collet chuck into the blank holder

13. Insert the bit of the torque screwdriver into the collet chuck and hold it in place.
14. Put the torque screwdriver on the bit and screw down the screw by twisting the torque screwdriver.

Variants of the cooling liquid filter

There are the following variants of the cooling liquid filter:

Variant B



1. Fine filter
2. Cap of the carbon filter
3. Carbon filter
4. Mesh filter

Variant	Current	Filter fixation	Nut required?

^**An additional nut fixates the coupling of the cooling liquid tank onto which the filter is screwed. The nut is supplied with the spare part.

• Older versions are possible no longer be available as spare parts.

• All variants are compatible with all cooling liquid tanks.

To exchange the carbon pellets and clean the filter, do the following:

1. Empty and clean the cooling liquid tank.

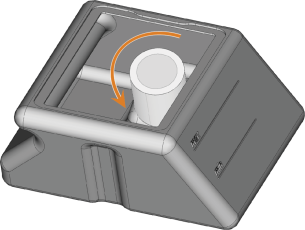

2. Filter version B: Unscrew the filter in the cooling liquid tank by hand and remove the filter.





3. Remove the fine filter by stretching the top end slightly and pulling it straight off the filter with both hands.




4. Clean the fine filter under running water. If the fine filter is too soiled for proper cleaning, exchange it with a new one when reassembling the filter.
Filter version A: Remove the carbon filter by pulling it straight off the filter.



Filter version A

Filter version A: Carefully lift the cap of the carbon filter with your fingernail or a flat blunt tool and pull it off the carbon filter.



Filter version A

5. Filter version B: Screw the cap of the carbon filter off the filter.


Filter version B

6. Empty the filter and dispose of the carbon pellets.
7. Filter version B: If the mesh filter is soiled, clean it under running water.
8. Clean the carbon filter and dry it with a cloth.
9. Fill new carbon pellets into the carbon filter.


Filter version A



Filter version B

10. Firmly close the carbon filter with the cap.
11. Filter version A: If the filter mesh is soiled, pull it off the cooling liquid filter and rinse it under running water.

12. Clean the coupling of the cooling liquid tank.

     Cleaning or exchanging the coupling of the cooling liquid tank

13. Reassemble the cooling liquid filter. Make sure that the fine filter covers the complete filter. If the fine filter is too long, cut it to the length of your cooling liquid filter.
14. Filter version B: Screw down the filter in the cooling liquid tank by hand.
15. Fill new cooling liquid into the tank.
16. Reinsert the cooling liquid tank until the tank is properly attached to the machine.

1. Clean the cooling liquid tank and remove the cooling liquid filter.

    Exchanging the cooling liquid and cleaning the cooling liquid tank

    Replace carbon pellets

NOTICE
Damaging of the machine when improperly cleaning the cooling liquid coupling
Internal components of the cooling liquid coupling can get lost during cleaning, which impedes the proper functioning of the coupling. Unscrewing the fixing nut can alter the position of the coupling and cause leakage.
• Always open the cooling liquid coupling carefully and ensure that you do not lose any components during cleaning.
• Never unscrew the fixing nut during cleaning or the filter socket (filter version A).
2. Unscrew the cap [1] of the coupling by hand. Do not unscrew the filter socket (filter version A) or the nut [6] that fixates the coupling to the tank.
3. Remove the valve spring [2], ball [3] and valve seat [4] from the socket [5] and the cap [1] of the coupling.


1. Cap of the coupling
2. Valve spring
3. Ball
4. Valve seat
5. Socket of the coupling
6. Fixing nut (do not unscrew during cleaning)
4. Rinse the disassembled components of the coupling under running water and dry them with a cloth.
5. Place the valve seat in the socket of the coupling.
6. Place the spring in the cap of the coupling.
7. Position the ball in the valve seat and screw the cap onto the socket of the coupling.

8. Install the cooling liquid filter and refill the tank.

    Replace carbon pellets

    Filling the cooling liquid

If the flow rate of the cooling liquid isn’t sufficient or the corresponding interval in the maintenance table has been exceeded, you must clean the cooling liquid system.

The task consist of the following automated processes:

1. Have ready:

   1 x Tec Powder (50 g)





2. Open the maintenance section of the touchscreen.  Using the maintenance section
3. Select the Cleaning the cooling liquid system maintenance task.
• The on-screen guide displays.
4. Remove the following items from the working chamber:
   • Any blank and holder
   • The tool magazines

5. Perform a weekly cleaning of the working chamber.

    Performing the weekly cleaning

6. Empty and clean the cooling liquid tank.

    Exchanging the cooling liquid and cleaning the cooling liquid tank

7. CAUTION!Pay attention to the label on the packaging of the TecPowder and wear personal protective equipment.

8. Fill 2 l (2.1 qt) of drinking water without cooling lubricant into the tank.

9. Add 50 g Tec Powder to the water. Stir the water until the powder is completely dissolved.

10. Insert the tank into the machine.
11. Close the multi-purpose drawer.

12. Select the left Play icon on the touchscreen.

13. Confirm that the multi-purpose drawer is closed.

• The cleaning process starts. The remaining time is displayed in the info area of DentalCNC‘s main application window.

The remaining time doesn’t display on the touchscreen.

14. Wait until the process is finished.

15. Empty the cooling liquid tank. Refill it with drinking water without cooling lubricant.

16. Insert the tank into the machine.

17. Close the multi-purpose drawer.
18. Select the right Play icon on the touchscreen.
19. Confirm that the multi-purpose drawer is closed.
• The rinsing process starts. The remaining time is displayed in the info area of DentalCNC‘s main application window.

The remaining time doesn’t display on the touchscreen.

20. Wait until the process is finished.
21. Dry the working chamber with a cloth.
22. Empty the cooling liquid tank.

23. Exchange the carbon filter.

     Replace carbon pellets

24. Thoroughly clean the cooling liquid tank.

25. Fill in cooling liquid for the machining process.

     Filling the cooling liquid

26. Insert the tool magazine into the working chamber.

27. To mark the task as complete, select the depicted icon.

1. Have ready:

   Microfiber cloth





2. Clean the surface with a dry microfiber cloth.

3. If some dirt cannot be removed this way, moisten the cloth. Use a pH neutral cleaning agent if necessary.

The internal power supply of the machine has a main fuse that is accessible from the outside and can be exchanged if necessary.

• As a replacement fuse, only use a fuse of the following type: T6,3A L250V

1. DANGER!Switch off the machine at the main power switch.

2. Remove the power cord from the connection panel.
3. Remove the cover (marked orange) of the fuse.




4. Remove the defective fuse and replace it with a new fuse.
5. If you do not have a replacement fuse ready, take the replacement fuse from the right side of the fuse cover and put it into the left side of the fuse cover.
6. Remount the fuse cover.

Calibrating the machine with a test and calibration specimen may improve machining results. Customer service will assist you with this.

Your machine is delivered with a calibration set. Customer service will need this set for calibration. It contains the following parts:

• Calibration blanks which are used to mill calibration and test specimens
• A tool for milling the calibration or test specimens
• A micrometer for measuring the machining precision

If tool magazine inserts are worn, you should replace them. New inserts are delivered without holes for the tools. The holes must be drilled into the inserts with the machine.

• Your machine comes with tool magazine inserts as spare parts and with the drill tool.
• Additional inserts and drill tools are available via customer service.

Customer service exchanges the tool magazine inserts during preventive maintenance. If required, you can exchange tool magazine inserts yourself and have customer service drill the holes into the inserts via remote maintenance.

You can replace tool magazine inserts as follows:

1. Contact customer service. They will assist you with drilling the holes into the new inserts. Otherwise, you won't be able to insert tools into the tool magazines.
2. Remove all tools from the desired magazine.
3. Remove the screws from the bottom of the tool magazine and put them aside.
4. Firmly press against the tool magazine insert.
• The insert moves out of the magazine together with its retainer.


Removing an insert from a tool magazine

5. Insert the new insert into the magazine together with its retainer. Position the insert with the smooth side pointing forwards so that it forms an even surface with the upper side of the tool magazine.
6. Insert the screws and screw them down.


Inserting an insert into a tool magazine

7. Follow the instructions you receive from customer service and drill the tool positions in the new inserts.



Tool magazine before and after drilling the tool positions

8. Insert the tools into the correct positions of the magazine.  Inserting and exchanging tools
9. Ensure that the correct tool magazine for the next job is mounted.  Attaching and exchanging tool magazines

Variants of the cooling liquid filter

There are the following variants of the cooling liquid filter:

Variant A



1. Fine filter
2. Cap of the carbon filter
3. Carbon filter
4. Mesh filter
5. Filter socket

Variant B



1. Fine filter
2. Cap of the carbon filter
3. Carbon filter
4. Mesh filter

Variant C



1. Fine filter
2. Cap of the carbon filter
3. Carbon filter
4. Filter housing

Variant	Current	Filter fixation	Nut required?
A	No	Plugged	No
B	No	Screwed	Yes*
C	Yes	Screwed	Yes*

^**An additional nut fixates the coupling of the cooling liquid tank onto which the filter is screwed. The nut is supplied with the spare part.

• Older versions are possible no longer be available as spare parts.

• All variants are compatible with all cooling liquid tanks.

1. Empty the cooling liquid tank.
2. While holding the coupling of the cooling liquid tank from the outside with one hand, unscrew the filter of the cooling liquid tank with the other hand.
3. Put the filter aside.
4. Filter variant B / C: While holding the coupling of the cooling liquid tank from the outside with one hand, unscrew the nut with which the cooling liquid tank is fixated with the other hand.





5. Push the coupling out of the tank.





6. Thoroughly clean the cooling liquid tank. Especially clean the sealing surface around the opening for the coupling. Otherwise the cooling liquid tank may leak.

7. Insert the spare coupling into the designated opening as shown in the following figure.



NOTICE! Damage to the coupling due to premature tightening of the filter

Filter version A: Screw down the filter onto the coupling by hand. Do not tighten the filter completely yet.

9. Filter versions B /C: Screw down the nut onto the coupling by hand. Do not tighten the nut completely yet.

10. Reinsert the cooling liquid tank until the tank is properly attached to the machine.
11. Pull the cooling liquid tank out of the machine again.
Filter version A: Fully tighten the filter.
13. Filter versions B /C: Tighten the nut completely and screw down the filter onto the coupling by hand.
14. Fill new cooling liquid into the tank.
15. Reinsert the cooling liquid tank until the tank is properly attached to the machine.

The view window wiper removes liquid from the back of the view window when the working chamber door opens and closes. You need to exchange it according to the interval given in the maintenance table or when the wiping effect is too low.

The view window wiper is fixated by a two-part holder.

You exchange the view window wiper as follows:

1. Open the working chamber door.
2. Unscrew the 3 screws (marked orange in the following figure) that attach the lower part of the holder to the upper part. Remove the lower part of the holder (marked blue in the figure).


Removing the view window wiper from the machine

3. Remove the view window wiper from the holder and dispose of it.
4. Clean the holder of the view window wiper with a wet cloth. Clean the part that you removed and the upper part in the machine.
5. Put the spare view window wiper into the lower part of the holder according to the following figure.


Positioning the spare view window wiper

6. Place the lower part of the holder on the upper part in the machine with the wiper lying between the two parts. Hold it in place.
7. Screw down the holder with the 3 screws.

It is essential for security that you regularly update the following components of the dental machine:

• The Windows® operating system on the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.
• DentalCAM & DentalCNC on the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.
• The firmware of the machine

It may be required to transfer multiple gigabytes of data.

The method of updating the software and firmware depends on the DentalCAM & DentalCNC version that is installed on the internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

DentalCAM & DentalCNC Version 7.06

You need to update Windows®, DentalCAM & DentalCNC and the firmware separately.

Updating Windows® on the CAM computer

Updates may take several hours. During this time, you cannot operate the machine.

1. Select the depicted icon in the Home section of the touchscreen.
• If the maintenance interval for software updates has been exceeded, the machine will ask you whether you want to search for updates.
2. Select .
• The machine searches for updates and automatically installs them.
3. Wait for the updates to finish.
• The machine shuts down. You can restart it immediately.

Updating DentalCAM & DentalCNC

The update from Version 7.06 to 7.07 is completely manual:

1. Obtain the installation package which is provided as a ZIP file A compressed file which contains multiple other files. Has the .ZIP file extension. ZIP files must be unzipped before use..
2. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. via a Remote Desktop connection or hardware.  Installing the machine
3. Quit DentalCAM & DentalCNC.
4. Unpack the installation package onto the local hard drive of the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
1. Right-click onto the ZIP file A compressed file which contains multiple other files. Has the .ZIP file extension. ZIP files must be unzipped before use. and select Extract all from the context menu.
2. Enter a destination folder into the input field or select Browse… and navigate to the desired folder.
3. Select Extract.
• Windows® unpacks the installation data into the selected folder.
5. Start Setup.exe in the folder with the installation data.
6. If Windows® asks you whether Setup.exe may make changes to your computer, select Yes.
7. If Windows® Defender SmartScreen notifies you that it prevented the start of an unknown app to protect the PC, do the following:
1. Select Further information.
2. Select Run anyway.
• The settings window opens.
8. Continue with configuring the update.

Configuring DentalCAM & DentalCNC updates

In the setup window, do the following:

1. Activate the Update option.
2. Activate the Create Desktop Icon option (optional).
3. Activate the Install engine driver option (optional).
4. Leave the text in the Destination folder input field as it is. Otherwise, the setup program A separate program called "Setup.exe" which installs the applications on your hard drive. will install a second copy of the applications instead of updating the existing installation.
5. To start the update, select the following icon:
• The setup program A separate program called "Setup.exe" which installs the applications on your hard drive. updates the core applications. Depending on the selected components, multiple installation wizards Application which installs software on your hard drive and leads you through every single step. open.
6. To check for installation wizards Application which installs software on your hard drive and leads you through every single step. that display behind the setup window, drag the setup window to the side.
7. Install all components with the help of the installation wizards Application which installs software on your hard drive and leads you through every single step..
• When all installation wizards Application which installs software on your hard drive and leads you through every single step. have completed successfully, the update of DentalCAM and DentalCNC is complete.
8. Shut down the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
9. Switch off the machine at the main power switch. Wait for 10 seconds. Switch on the machine at the main power switch.
10. If the machine has an internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Press the start button.
11. If the machine has an external CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Start the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

Updating the firmware of the machine

The firmware is the internal control software of your machine. New versions may introduce new functions and improve existing ones. New firmware versions come as part of new versions of DentalCNC.

NOTICE

Damaging of the control unit when a firmware update is interrupted

If the firmware update is interrupted, the control unit of the machine may become permanently damaged.

• Only update the firmware if a permanent electrical supply of the machine and the computer is guaranteed.
• Only update the firmware if the computer's operating system is stable and is free of malware.
• Only update the firmware if the connection between the computer and the machine is stable. Always use a wired connection during the update.
• Do not disconnect the machine or the computer from the electrical source nor switch off the machine or computer during a firmware update.
• Do not close DentalCNC during a firmware update.

If DentalCNC contains a new firmware, you will be prompted to update the firmware after DentalCNC connected to the machine or when you start machining. The firmware update should take 5 – 15 minutes to complete.

1. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. via a Remote Desktop connection or hardware.  Installing the machine
2. Switch to DentalCNC.
3. To update the firmware, confirm the message. You can cancel the message to postpone the update, but we recommend updating the firmware immediately.
4. In the current window, select the following icon:
• The following happens:
1. DentalCNC updates the firmware of the connected machine.
2. DentalCNC prompts you to restart the machine.
5. Shut down the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
6. Switch off the machine at the main power switch.
7. Wait for 3 seconds.
8. Switch on the machine at the main power switch.
9. If the machine has an internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Press the start button.
10. If the machine has an external CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Start the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
• The machine references.The machine is ready for operation.

DentalCAM & DentalCNC Version 7.07

DentalCAM & DentalCNC and the firmware will be updated together. You need to update Windows® separately.

Updating Windows® on the CAM computer

Updates may take several hours. During this time, you cannot operate the machine.

1. Select the depicted icon in the Home section of the touchscreen.
• If the maintenance interval for software updates has been exceeded, the machine will ask you whether you want to search for updates.
2. Select .
• The machine searches for updates and automatically installs them.
3. Wait for the updates to finish.
• The machine shuts down. You can restart it immediately.

Update DentalCAM & DentalCNC including the firmware

DentalCAM & DentalCNC and the firmware will be updated together.

The update workflow is as follows:

1. Check for updates via the touchscreen (optional).
2. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
3. Download the update via DentalCNC.
4. Configure the update and follow the installation wizards Application which installs software on your hard drive and leads you through every single step..

Checking for DentalCAM & DentalCNC updates via the touchscreen

1. Start the machine.
• If a new DentalCAM & DentalCNC version is available, the machine displays a corresponding message on the touchscreen.
2. Confirm the current message.
3. Continue with downloading and starting the update. After updating DentalCAM & DentalCNC, mark the maintenance task as complete.

Downloading and starting updates

You can perform the following procedure without checking for updates via the touchscreen.

New firmware versions will be automatically installed after a new DentalCAM & DentalCNC version has been downloaded via the automatic update function.

The firmware is the internal control software of your machine. New versions may introduce new functions and improve existing ones. New firmware versions come as part of new versions of DentalCNC.

NOTICE

Damaging of the control unit when a firmware update is interrupted

If the firmware update is interrupted, the control unit of the machine may become permanently damaged.

• Only update the firmware if a permanent electrical supply of the machine and the computer is guaranteed.
• Only update the firmware if the computer's operating system is stable and is free of malware.
• Only update the firmware if the connection between the computer and the machine is stable. Always use a wired connection during the update.
• Do not disconnect the machine or the computer from the electrical source nor switch off the machine or computer during a firmware update.
• Do not close DentalCNC during a firmware update.

You can start the automatic download of new DentalCAM & DentalCNC versions as follows:

1. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. via a Remote Desktop connection or hardware.  Installing the machine
2. Switch to DentalCNC.
3. Select the depicted icon which displays in the right corner of the application window.
4. Confirm the current message.
• The following happens:
1. DentalCNC downloads the update. This may take some time, depending on the speed of your internet connection (download size: approx. 700 MB).
2. If a firmware update is available, it will be installed automatically.
3. When the download has finished, DentalCNC displays a corresponding message.
5. Confirm the current message.
• The following happens:
1. DentalCNC closes.
2. The download folder opens.
6. Start Setup.exe.
• The settings window opens.
7. Continue with configuring the update.

Configuring updates

In the setup window, do the following:

1. Activate the Update option.
2. Activate the Create Desktop Icon option (optional).
3. Activate the Install engine driver option (optional).
4. Leave the text in the Destination folder input field as it is. Otherwise, the setup program A separate program called "Setup.exe" which installs the applications on your hard drive. will install a second copy of the applications instead of updating the existing installation.
5. To start the update, select the following icon:
• The setup program A separate program called "Setup.exe" which installs the applications on your hard drive. updates the core applications. Depending on the selected components, multiple installation wizards Application which installs software on your hard drive and leads you through every single step. open.
6. To check for installation wizards Application which installs software on your hard drive and leads you through every single step. that display behind the setup window, drag the setup window to the side.
7. Install all components with the help of the installation wizards Application which installs software on your hard drive and leads you through every single step..
• When all installation wizards Application which installs software on your hard drive and leads you through every single step. have completed successfully, the update of DentalCAM and DentalCNC is complete.
8. Shut down the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
9. Switch off the machine at the main power switch. Wait for 10 seconds. Switch on the machine at the main power switch.
10. If the machine has an internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Press the start button.
11. If the machine has an external CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Start the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

Updating the firmware of the machine

Updating the firmware is part of the automatic DentalCAM & DentalCNC update process.

 Update DentalCAM & DentalCNC including the firmware

DentalCAM & DentalCNC Version 8 / 7.08

DentalCAM & DentalCNC and the firmware will be updated together. You need to update Windows® separately.

Updating Windows® on the CAM computer

If the maintenance interval for Windows® updates has expired, the corresponding maintenance task will be displayed in the maintenance section.  Using the maintenance section

• If you see this task in the maintenance section, check for Windows® updates immediately. After updating Windows®, mark the maintenance task as complete.

You can also search for and install Windows® updates when the maintenance task is not displayed. This will not reset the maintenance interval.

Updates may take several hours. During this time, you cannot operate the machine.

Checking for Windows updates

1. Access the internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. via a Remote Desktop connection or hardware.  Installing the machine
2. On the desktop, double-click the Update & security icon.
3. If the icon is missing, open the Windows® settings and select Update and Security.
• Windows® lists all available updates. If no updates display, you are finished.
4. Select Check for updates.
5. Download and install all available updates.
6. Wait until the update is complete. This may require several reboots of the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
7. Shut down the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
8. Switch off the machine at the main power switch. Wait for 10 seconds. Switch on the machine at the main power switch.
9. Press the start button.
10. Start the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
11. Repeat the whole procedure until no further Windows updates are available.

Updating DentalCAM & DentalCNC including the firmware

The update workflow is as follows:

1. Check for updates via the touchscreen (optional).
2. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
3. Download the update via DentalCNC.
4. Configure the update and follow the installation wizards Application which installs software on your hard drive and leads you through every single step..
5. Mark the corresponding maintenance task as complete.

Checking for DentalCAM & DentalCNC updates via the touchscreen

1. To open the Home section, select the depicted icon.
2. To open the Maintenance section, select the depicted icon.
• If a DentalCAM & DentalCNC update is available, the corresponding maintenance task is displayed.
3. Continue with downloading and starting the update. After updating DentalCAM & DentalCNC, mark the maintenance task as complete.

Downloading and starting DentalCAM & DentalCNC and firmware updates

New firmware versions will be automatically installed after a new DentalCAM & DentalCNC version has been downloaded via the automatic update function.

NOTICE

Damaging of the control unit when a firmware update is interrupted

If the firmware update is interrupted, the control unit of the machine may become permanently damaged.

• Only update the firmware if a permanent electrical supply of the machine and the computer is guaranteed.
• Only update the firmware if the computer's operating system is stable and is free of malware.
• Only update the firmware if the connection between the computer and the machine is stable. Always use a wired connection during the update.
• Do not disconnect the machine or the computer from the electrical source nor switch off the machine or computer during a firmware update.
• Do not close DentalCNC during a firmware update.

You can start the automatic download of new DentalCAM & DentalCNC versions as follows:

1. Access the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. via a Remote Desktop connection or hardware.  Installing the machine
2. Switch to DentalCNC.
3. Select the depicted icon which displays in the main icon bar.
4. Confirm the current message.
• The following happens:
1. DentalCNC downloads the update. This may take some time, depending on the speed of your internet connection (download size: approx. 700 MB).
2. If a firmware update is available, it will be installed automatically.
3. When the download has finished, DentalCNC displays a corresponding message.
5. Confirm the current message.
• The following happens:
1. DentalCNC closes.
2. The download folder opens.
6. Start Setup.exe.
• The settings window opens.
7. Continue with configuring the update.

Configuring DentalCAM & DentalCNC updates

In the setup window, do the following:

1. Activate the Update option.
2. Activate the Create Desktop Icon option (optional).
3. Activate the Install USB/Ethernet driver option (optional).
4. Leave the text in the Destination folder input field as it is. Otherwise, the setup program A separate program called "Setup.exe" which installs the applications on your hard drive. will install a second copy of the applications instead of updating the existing installation.
5. To start the update, select the following icon:
• The setup program A separate program called "Setup.exe" which installs the applications on your hard drive. updates the core applications. Depending on the selected components, multiple installation wizards Application which installs software on your hard drive and leads you through every single step. open.
6. To check for installation wizards Application which installs software on your hard drive and leads you through every single step. that display behind the setup window, drag the setup window to the side.
7. Install all components with the help of the installation wizards Application which installs software on your hard drive and leads you through every single step..
• When all installation wizards Application which installs software on your hard drive and leads you through every single step. have completed successfully, the update of DentalCAM and DentalCNC is complete.

Does not apply to the Z4. Never install anti malware applications on the internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. of the Z4.

8. Shut down the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
9. Switch off the machine at the main power switch. Wait for 10 seconds. Switch on the machine at the main power switch.
10. If the machine has an internal CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Press the start button.
11. If the machine has an external CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.: Start the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

Updating the firmware of the machine

Updating the firmware is part of the automatic DentalCAM & DentalCNC update process.

 Updating DentalCAM & DentalCNC including the firmware

In case of a manual DentalCAM & DentalCNC installation or update, customer service must update the firmware manually. The applications will not notify you of new firmware versions.
