Applies to: S5

Managing tools

The workflow for restoration is as follows:

→

→

→

→

→

→

→

NOTICE

Damaging of the spindle or the tool positions if you use improper tools

Inappropriate tools may damage the spindle collet chuck and/or tool positions.

  • Use only tools with a sufficiently large chamfer on the tool shaft.

  • Install a retaining ring as a stop ring according to DIN 471-A3.

    This does not apply to AirTools.

  • See the further instructions in chapter Technical data.

We recommend original tools as they are designed especially for the designated jobs.

  • If you use tools from other manufacturers, make sure that the following specifications are met:
  • Maximum tool length: 40 mm
  • Maximum shaft diameter: 3 mm
  • Minimum shaft length: 7 mm (recommended clamping length: 13 – 14 mm)

You can insert up to 16 tools into the tool magazine.

Tool magazine in the working chamber (marked orange)

Tool change can take place automatically via the tool magazine or manually via the collet chuck. Since each tool position can be configured individually, automatic and manual changes are possible in parallel.

Automatic tool change properties

  • The machine automatically loads the necessary tools from the magazine during machining.

  • You must insert all required tools into the tool magazine before the job begins.

  • Default case for all tool positions where no manual change is configured in DentalCNC.

Automatic tool change is not possible in the following cases:

  • A tool position is worn out and can no longer hold any tools properly.

  • You use tools which do not fit into the tool magazine.

Manual tool change properties

  • During the application, you manually insert the tools into the spindle’s collet chuck at the request of DentalCNC.

  • You must configure this manual tool change for individual tool positions in DentalCNC.

  • This is described in the DentalCNCmanual.

    Forcing a manual tool change for certain tool positions

If tool magazine inserts become worn, exchange them. Exchanging the tool magazine inserts

Inserting and exchanging tools

You need to insert or exchange tools in the following cases:

  • Upon first use of the machine
  • After exchanging tool magazine inserts due to wear
  • When the tool life of a tool has expired
  • When tools are damaged or worn
  • If the next jobs require additional / different tools than those in the tool magazine

You can check the remaining tool life of all tools in the Tool management view in DentalCNC.

You can equip the tool magazine of your machine in two ways:

  • By manual insertion into the tool magazine This is the fastest way. It is described below.
  • About the spindle You insert a tool into the collet chuck and the spindle places the tool in the tool magazine. This option takes more time, but might be more convenient for some. It is described in the documentation for the manufacturing software.

You insert tools manually as follows:

  1. Remove worn or damaged tools from the tool magazine if any.
  2. Insert the new tools:
    1. Ensure that the positions of the tools in the tool magazine match the tool positions in DentalCNC.
    2. Insert the tools in the tool positions with the edge facing downward. Push them in until the ring touches the rubber.

    If the positions of the tools in the tool magazine do not match the tool positions in DentalCNC, the machine will use the wrong tool(s) during job execution and the job result will become unusable.

  3. After replacing a tool, reset the tool life value. For this, use the Tool management view in DentalCNC.

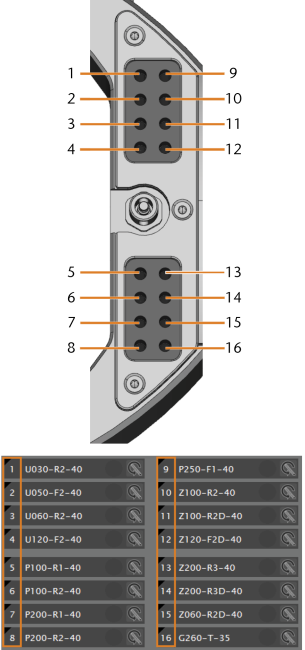

Top: Tool positions 1 – 16 in the tool magazine
Bottom: Tool positions 1 – 16 in DentalCNC

What's next?

Using the ionizer
