Exchanging the tool magazine inserts

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

If tool magazine inserts are worn, you should replace them. New inserts are delivered without holes for the tools. The holes must be drilled into the inserts with the machine.

  • Your machine comes with tool magazine inserts as spare parts and with the drill tool.
  • Additional inserts and drill tools are available via customer service.

The documentation for the manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC. contains step-by-step instructions for drilling the holes into the inserts. Below you find a description of how to exchange the tool magazine inserts in the machine.

You can replace tool magazine inserts as follows:

  1. Have ready:

    • Tool magazine inserts

    • Drill tool (provided)

  2. Open the working chamber door.

  3. CAUTION!Wear gloves.

  4. NOTICE! Remove all tools from the tool magazine.

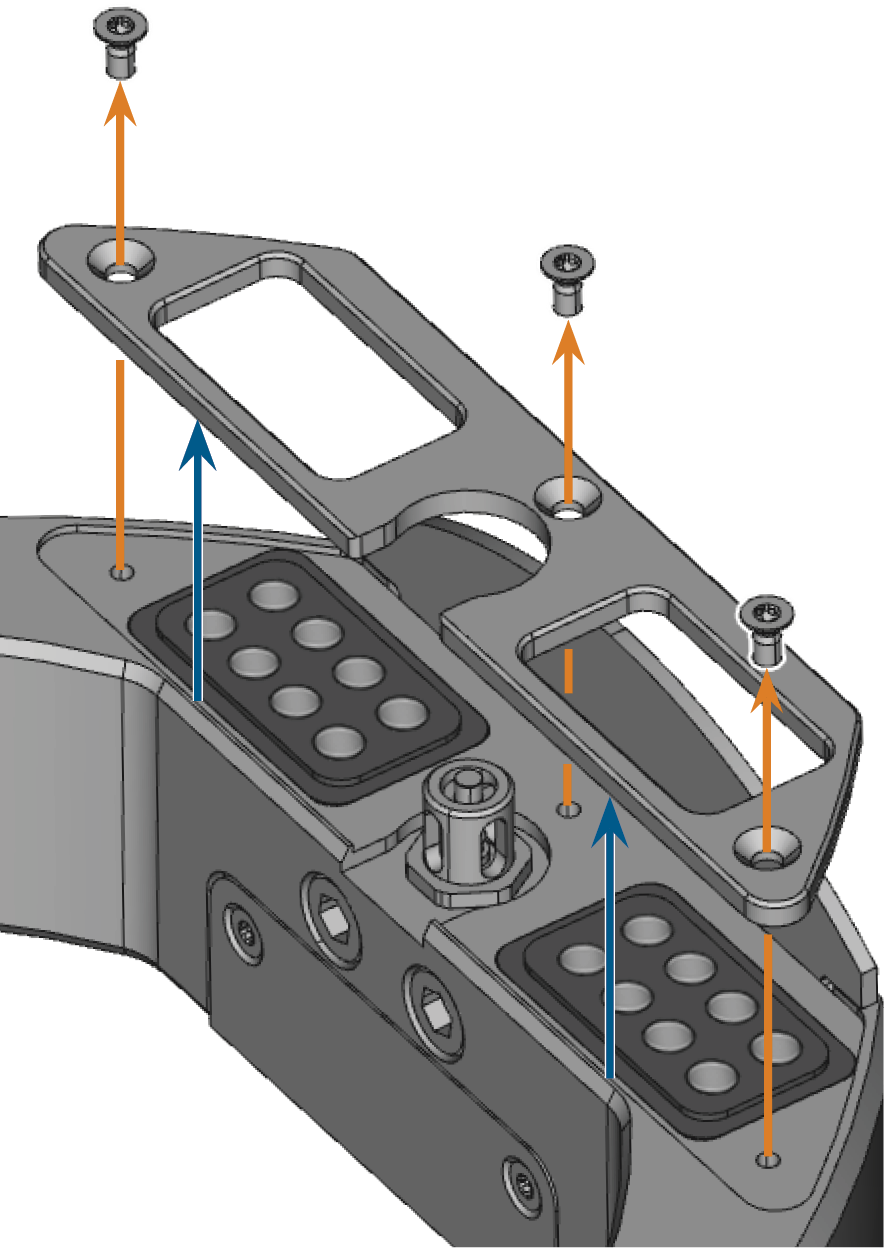

  5. Unscrew the 3 screws on the upper side of the tool magazine and lift the cover.

    6.

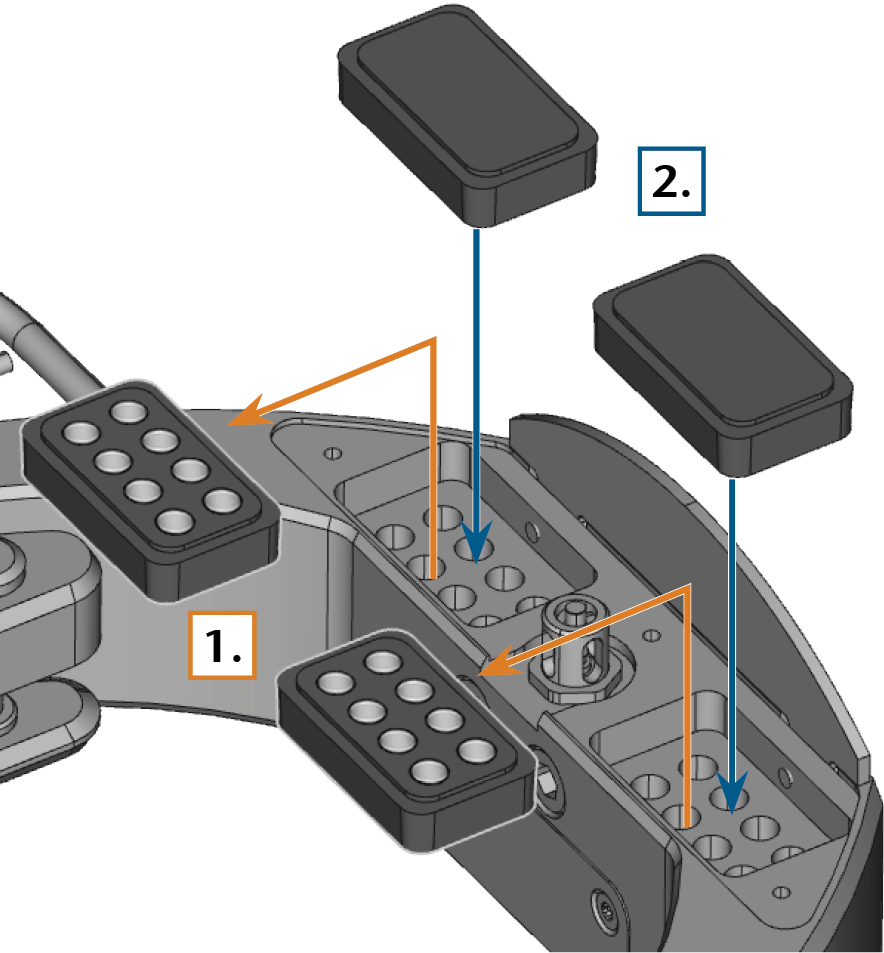

  6. Remove the 2 existing tool magazine inserts and replace them with 2 new ones.

    7.

  7. Put the cover back onto the tool magazine and screw it down.
  8. Follow the instructions in the documentation for DentalCNC and drill the tool positions using the provided drill bit.
