Applies to: Z4

Checking the scope of delivery

The installation steps up to operation are:

→

→

→

  • Unpack the machine and ensure that you have received the following items:

Machine, cables, hoses

1

2

3

Dental tools

4





Maintenance tools

5

6

7

8

9

10

11

12

13

Spare parts

14

15

16

17

18

19

CAM computerClosed

20

21

  1. 1 x Machine Z4

  2. 1 x Ethernet network cable

  3. 1 x Power cable

  4. 5 x Tool magazine (in the drawer)

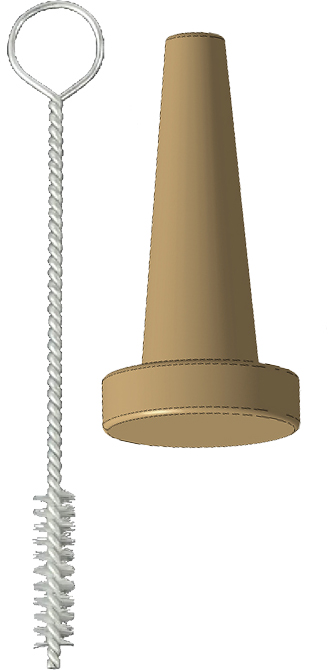

  5. 1 x Spindle service set

  6. 1 x Calibration set:

    • 1 x Micrometer

    • 5 x Calibration blank

    • 1 x Single-tooth radius cutter (P200-R1-35)

  7. 1 x Cleaning brush

  8. 1 x Interdental brush (for cleaning the nozzle plate)

  9. 1 x Block holder service set

  10. 1 x Drill bit for tool positions (2.8 mm)

  11. 1 x Measuring pin

  12. 1 x Tube of collet chuck grease (for spindle, blank holder, tool magazine holder)

  13. 1 x Microfiber cloth

  14. 1 x Tank with activated carbon

  15. 3 x Fine filter

  16. 5 x Tool magazine insert

  17. 1 x View window wiper

  18. 3 x Fixing screw for the collet chuck of the blank holder

  19. 5 x Tool magazine cap

  20. 1 x External CAM computerClosed (figure may differ from delivered product) with power cord (only for machines with serial number from Z4ID4...)

  21. 2 x USB cable A / B black (only for machines with serial number from Z4ID4...)

Not shown:

  • 1 x Brief machine information
  • 1 x Carrying aid for transporting the machine
  • 1 x Transport lock in the working chamber
  • 1 x Supplement about removing the carrying aid and transport lock
  • 1 x Transport protection cover in the multi-purpose drawer
  • 1 x Allen key for the tool magazine release screw
  • 1 x Allen key for the holder of the view window wiper
  • 3 x Bag with Tec Powder for cleaning the cooling liquid system (50 g per bag)

  • Transport lock

    • 1 x Transport box

    • 1 x Transport protection cover

    • 1 x Housing protection cover

Unpacking and positioning

  • Store the measuring pin and the calibration set safely near the machine. Customer service will need them for maintenance.
  • Keep the packaging of the machine, the carrying aid and the transport lock for future transports.
