Applies to: R5

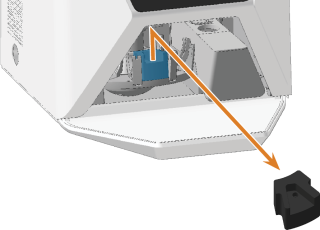

Commissioning

The installation steps up to operation are:

Preparing the installation

For integrating the machine into your network, you will require the assistance of your IT specialist.

• Ensure that your network is working without disruptions. Network failures will lead to aborted jobs and unusable machining results.

• Do not contact customer support for setting up your network or troubleshooting network issues. Customer service will only help you with machine-related issues.

• If you want to control multiple machines with 1 CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC., use our multi-machine control feature. See the documentation for the manufacturing software.

1. Plug the Ethernet cable into the network port at the connection panel of the machine.
2. Plug the other end of the Ethernet cable into the network port of the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.. Do not use a router, hub or switch to connect the 2 units at this point.
3. Make sure that you have administrator rights on the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..

4. Install DentalCAM & DentalCNC.  Installing DentalCAM & DentalCNC

• During installation, the SX Virtual Link setup program A separate program called "Setup.exe" which installs the applications on your hard drive. opens.





5. If the SX Virtual Link setup program A separate program called "Setup.exe" which installs the applications on your hard drive. opened, continue with the next step.

   If the SX Virtual Link setup program A separate program called "Setup.exe" which installs the applications on your hard drive. did not open, open the installation program in the DentalCAM & DentalCNC installation folder The folder on your hard drive that you installed DentalCAM and DentalCNC in..

   USB\Silex\Cosetup.exe

6. Follow the SX Virtual Link setup program A separate program called "Setup.exe" which installs the applications on your hard drive. until the installation is finished.

7. Continue with the DentalCAM & DentalCNC installation.

Configuring SX Virtual Link & DentalCNC

1. Ensure that the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. is directly connected to the machine via an Ethernet cable. Otherwise, the machine may obtain incorrect network settings and may become unreachable.

   If this happens, an on-site visit by customer service may be necessary:  What to do if the machine is unreachable

2. Switch on the machine at the main power switch.

• The working chamber is illuminated in white.

  The machine does not reference.

3. Open the SX Virtual Link application window:

• The software should already be running – select the arrow on the right side of your task bar to open the system tray.

  In the system tray, select the SX Virtual Link icon.





• If the SX Virtual Link icon is not in the system tray, start the application via the start menu. You should find it in the Silex Device Server group.




• The SX Virtual Link application window displays.

• If SX Virtual Link cannot find your machine, the following image displays in the window:





• If SX Virtual Link has found your machine, the internal network devices of the machine display in the window.

4. If the machine was found, continue with the next step.

   If the machine was not found, do the following:

   1. Check if the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. is properly connected to the machine.

   2. Restart the machine.

5. In the SX Virtual Link application window, select the depicted icon.

• A more detailed list of the network devices displays.





1. The internal devices of the machine
2. The superior list entry for the machine
6. In the SX Virtual Link window, right-click on SMI USB 2.0 Camera.
7. From the context menu, select Properties….
8. Switch to the Disconnect tab.
9. Activate the Allow auto-disconnect when a Request Use is received check box.
10. From the Auto-disconnect timeout drop-down list, select 10.
11. To save your settings, select OK.
12. Right-click on SMI PC Cam.
13. From the context menu, select Connect.
14. In the SX Virtual Link window, locate the device whose name starts with FTDI. Repeat steps 7 – 13 for this device.
• Green check marks (marked orange) indicate that the connections have been established.




15. In the SX Virtual Link application window, select the depicted icon.
• The Options window opens.
16. In the Options window, activate the following options:
    • Launch SX Virtual Link at Windows startup
    • Don't show SX Virtual Link main window on program launch
    • Hide the main window if the close button is clicked

17. Deactivate the Automatically connect newly discovered USB devices option.

18. To save your settings, select OK.

19. Start DentalCNC.

20. Open the DentalCNC Application settings with the following icon in the main icon bar:

21. Open the General settings with the following icon in the local icon bar:

22. Select the following icon next to the Port number input field:





• If DentalCNC is able to determine the port number, the number displays in the Port number input field. The machine references.

23. Read out the Ethernet address (marked orange) in the application window of SX Virtual Link. It displays behind the device name.





24. Enter the Ethernet address into the Machine Ethernet address input field in DentalCNC.

    Example:84:25:3F:23:4A:F4

25. Press Enter.
• From now on, DentalCNC will connect and disconnect the machine.
26. Activate the option Launch application at Windows startup in DentalCNC.
• From now on, DentalCNC will launch with Windows®. This is required to automate the connection process.

27. Quit DentalCNC.

    If you do not close DentalCNC now, your changes may not be saved.

28. In the SX Virtual Link application window, right-click on SMI USB 2.0 Camera.
29. From the context menu, select Disconnect.
30. Right click on the entry starting with FTDI.
31. From the context menu, select Disconnect.
• In the SX Virtual Link application window, the 2 check marks no longer display.
32. Start DentalCNC.
• DentalCNC establishes the connection to the machine. The 2 check marks display again.

33. (Optional) Install hub, router or switch to connect the computer and the machine. This may require additional configuration.

Step 2: Configuring the webcam

In the following cases, you need to configure the webcam of the machine:

• First installation of the machine
• Exchange of the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC.
• Exchange of the control unit
• Exchange of the webcam

1. Open the DentalCNC Application settings with the following icon in the main icon bar:

2. Open the General settings with the following icon in the local icon bar:

3. Select the following icon next to the Webcam selection label:


4. Select the webcam SMI from the drop-down list at the top of the window.




• The current still image of the webcam displays.





5. Select the depicted icon:
• The window closes. The webcam configuration is saved to the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC..
