Applies to: R5

Checking the scope of delivery

The installation steps up to operation are:

→

→

  • Unpack the machine and ensure that you have received the following items:

Machine, cables, hoses

1

2

3

4

5

Tools

6

7

8

9

10

11

Maintenance tools

12

13

14

15

16

17

18

19

20





Spare parts

21

22

23

24

  1. 1 x Machine R5

  2. 1 x Block holder

  3. 1 x Power cable

  4. 1 x Ethernet network cable

  5. 1 x Pneumatic hose

  6. 1 x Torque screwdriver (1.8 Nm) for mounting blocks

  7. 1 x Screwdriver with quick-change chuck for the blank holder

  8. 1 x Hexagon bit (2 mm)

  9. 1 x TX 25 bit

  10. 1 x Drill bit (2.8 mm) for tool positions

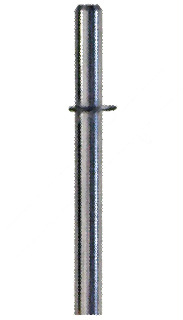

  11. 1 x Measuring pin

  12. 1 x Spindle service set

  13. 1 x Calibration set

    • 1 x Micrometer

    • 6 x Calibration blank

    • 1 x Radius cutter with 1 tooth (P200-R1-40)

  14. 1 x Crevice nozzle (for cleaning the working chamber)

  15. 1 x Microfiber cloth

  16. 1 x Cleaning brush

  17. 1 x Interdental brush (for cleaning the nozzle plate)

  18. 1 x Small cleaning brush

  19. 1 x Maintenance set for the blank holder

    • 1 x Gasket

    • 2 x Valve

    • 4 x Oval-head screw (M5 x 12)

  20. 3 x Tec Powder for cleaning the cooling liquid system (50 g per bag)

  21. 1 x Tank with activated carbon; sufficient for approx. 3 months

  22. 1 x Tool magazine insert

  23. 3 x Fine filter, long

  24. 5 x Grub screw (M5 x 10) for the block holder

Not shown:

  • 1 x Brief machine information
  • 1 x Carrying aid for transporting the machine
  • 1 x Transport lock in the working chamber
  • 1 x Supplement about removing the carrying aid and transport lock
  • 1 x Set of cover caps, diameter 7.5 mm
  • 1 x Grub screw (M5 x 16)

  • Packing set

    • 1 x Transport box

    • 1 x Packaging cushion, multi-part

    • 1 x Transport protection cover

    • 1 x Housing protection cover
