Applies to: E5

Looking forward to your E5

What you should check before delivery

To make sure that there are no nasty surprises on installation day.

So that your machine arrives at your premises undamaged.

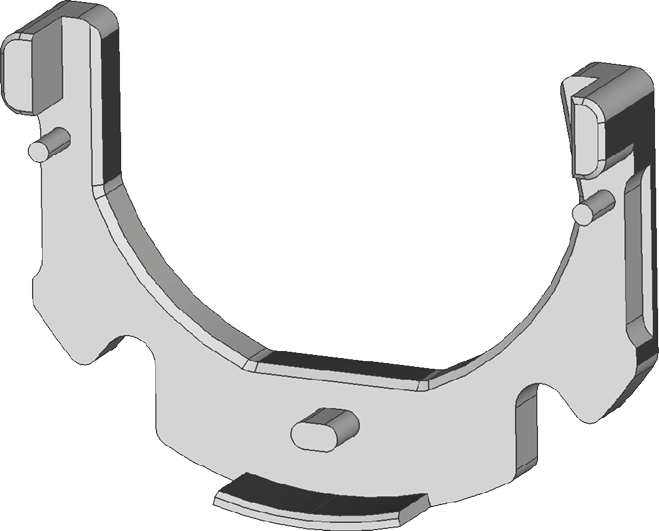

To get started right away, you should have all the tools and any extra equipment Physical component which must be obtained separately and which adds new functionality to your machine. there.

Installation requirements

Choosing the installation site

The installation site must meet the following criteria:

Firm and even surface, must be able to carry the weight of the machine.
Alternating current source.
An operational Residual Current Device / Ground Fault Circuit Interrupter on the electric circuit of the machine.
Machine requires an external air extraction system.
Access to the internet and local computer network via cable.

Length of the supplied power cord: 1.8 m (6 ft)

Length of the provided Ethernet network cable: 2 m

To avoid job interruptions, install an uninterruptible power supply (UPS), type online / VFI (IEC 62040-3, Class 1) if there are regular power failures or frequent mains voltage fluctuations.
You will need the help of your IT specialist to integrate the machine into the network. A direct connection between machine and the CAM computer The computer that is connected to your machine and which runs DentalCAM and DentalCNC. is also possible.

The technical data contains further requirements for the installation site.

Technical data

This is an excerpt. The complete technical data can be found here.

Dimensions (W/D/H)

	Unit	Value
Footprint (approx.)	mm in	387 x 370 15.2 x 14.6
Housing fully closed (approx.)	mm in	472 x 484 x 734 18.6 x 19.1 x 28.9
Minimum required space for operation (approx.)	mm in	680 x 760 x 780 26.8 x 25.2 x 30.7

Unit

Value

Footprint (approx.)

387 x 370

15.2 x 14.6

Housing fully closed (approx.)

472 x 484 x 734

18.6 x 19.1 x 28.9

Minimum required space for operation (approx.)

680 x 760 x 780

26.8 x 25.2 x 30.7

Base system

	Unit	Value
Weight (approx.)	kg lbs	47 104
Axes – Rotational axis A		5 360° / ± 35°
Overvoltage category (IEC 60664-1)		II

Unit

Value

Weight (approx.)

lbs

104

Axes

– Rotational axis A

360° / ± 35°

Overvoltage category (IEC 60664-1)

External air extraction system

	Unit	Value
Minimum extraction capacity	l/min cfm	2,500 (at 220 hPa) 88.3 (at 3.2 psi)
Suction unit		Designed for the commercial use in the dental sector Equipped with a filter of the filter class M

Unit

Value

Minimum extraction capacity

l/min

cfm

2,500 (at 220 hPa)

88.3 (at 3.2 psi)

Suction unit

Designed for the commercial use in the dental sector

Equipped with a filter of the filter class M

Ambient conditions

	Unit	Value
Relative humidity		80 %, non-condensing
Ambient temperature for storage/transport	°C °F	‑20 – 60 -4 – 140
Ambient temperature for operation	°C °F	10 – 35 50 – 95
Location type		Indoor
Maximum height above mean sea level	m ft	2000 6561
Ambient air (IEC 60664-1)		Dust free, pollution degree 2
Electromagnetic radiation (IEC 61326-1)		Residential, business and commercial areas
Electromagnetic interference (IEC 61326-1)		Industrial environment

Sound emission

Operating condition	Unit	Value
Machining – Sound pressure level – Sound power level	dB(A) dB(A)	82.98 (Nicht definierte Variable:GLB_ProductDataE5.SoundPowerLevel)
All other operating conditions	dB(A)	<70

Operating condition

Unit

Value

Machining

– Sound pressure level

– Sound power level

dB(A)

82.98

(Nicht definierte Variable:GLB_ProductDataE5.SoundPowerLevel)

All other operating conditions

dB(A)

<70

Measuring conditions	Value
Machined material	Composite (VITA CAD temp block)
Condition of the tools	worn
Measured value	Sound pressure level (distance: 1 m)
Measurement according to	ISO 3746, accuracy grade 3

Connections

	Unit	Value
Power connector (and maximum power consumption in watts)	V AC Hz W	100 – 240 50/60 500 Glass fuse T6,3A L250V
Network connection – Speed		RJ-45 10BASE/100BASE-TX/1000BASE-T (Auto-sensing)
USB port		2 x 2.0 A 1 x 2.0B
Data port for supported suction unit or switching unit		Yes

DentalCAM

System requirements:

CPU:
- Single machine control: 64-bit Intel Core i CPU of the 10th generation with 4 cores and hyperthreading (e.g., Intel Core i5-10500)
  Alternative: 64-bit AMD Ryzen CPU with at least 4 cores (e.g., AMD Ryzen 5 3600)
- Multi-machine control: 64-bit Intel Core i CPU of the 10th generation 6 cores and hyperthreading (e.g., Intel Core i7-10700)
  Alternative: 64-bit AMD Ryzen CPU with at least 6 cores and 12 threads (e.g., AMD Ryzen 5 3600)
Operating system: 64-bit version of Windows® 10, 11
Storage device: SSD with 512 GiB
Random access memory:
- Single machine control: 8 GiB
- Multi-machine control: 16 GiB
Display resolution: 1920 x 1080 (Full HD)
A permanent Internet connection during installation and use
