Applies to: E5

Unpacking and positioning

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

Choosing the installation site

The installation site must meet the limit values and requirements in chapter Technical data.

Technical data

Unpacking the machine

  1. Cut the straps. Remove the straps.
  2. Grasp the carton by the recessed grips. Lift the carton from the pallet.
  3. Position the transport carton on a surface that can carry the weight.

    • The arrows on the transport position sticker must be pointing upward.

    • You need a free space of at least 60 x 80 x 80 cm / 24 x 32 x 32 in (W/D/H) at the front of the carton.

  4. Cut the carton seal and open the carton.

  5.





  6.

  7. NOTICE! Housing damage by pulling on the housing

  8. The machine stands on a separate insert. Grasp the insert by the handle and pull the machine out of the carton.
  9. Cut the fastener of the blue transport protection cover on the front of the machine.

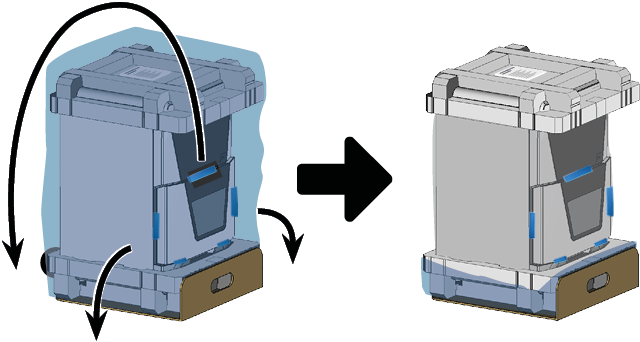

  10. Pull the transport protection cover backwards over the machine. Press down the transport protection cover on all sides until the top of the bottom cushion is exposed.

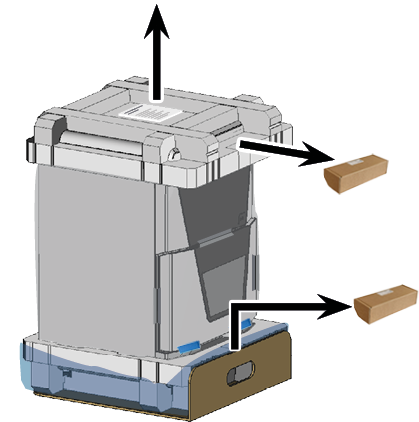

  11. Remove the machine safety information from the top cushion.

  12. Pull the accessory boxes out of the top cushion and the bottom cushion.

  13. Remove the top cushion from the machine.
  14.





  15.

  16. Reach into the left and right recessed grips in the bottom cushion.

    Slide your hands under the machine so that you securely grasp the handles on the underside of the machine.





  17. Lift the machine out of the bottom cushion.

  18. Position it on a surface that can carry the machine weight.

  19. Pull the protective housing cover upwards off the machine.







  20. Pull off the adhesive tapes from the left and right sides of the bottom service cover.

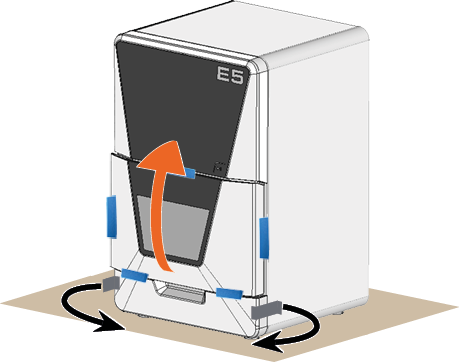

  21. Open the working chamber door.

  22. NOTICE! Make sure that the following safety distances are always maintained.



    Top view

    Blue area: Workspace

    Side view



  23. NOTICE! Damage to the A-B axis module as well as the spindle due to rotation of the A-B axis module

  24. Pull 5 parts of the transport lock out of the working chamber without turning the A-B axis module:

    1. Remove the center parts from top to bottom.

    2. Tilt the left part inward and remove it. Remove the right part in the same way.

  25.



    • Only the spindle lock in the blank holder remains in the working chamber as part of the transport lock.

      Remove the spindle lock when commissioning the unit.

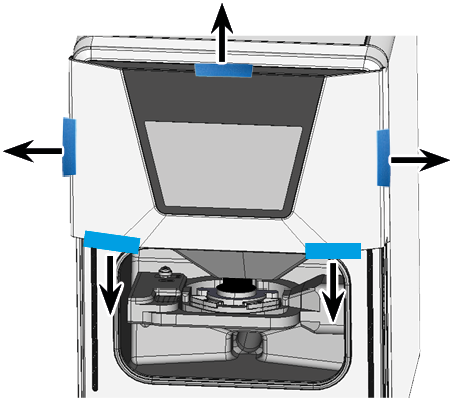

  26. Remove the working chamber door stoppers.

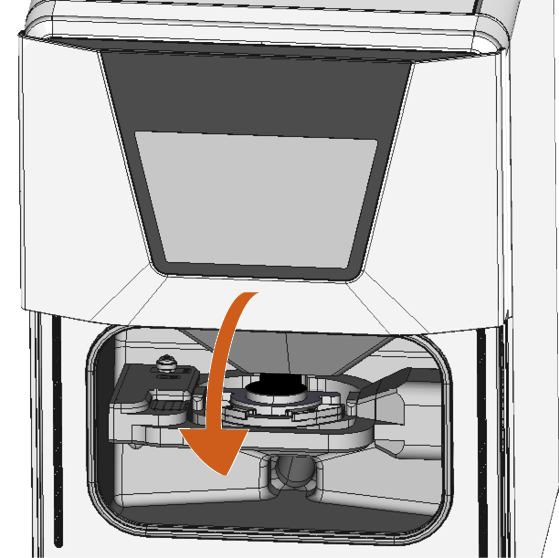

  27. Close the working chamber door.

    Commissioning is only possible with the working chamber door closed.

  28.



  29. Keep all parts of the transport lock and the packing set for possible service returns.



What's next?

If you want to proceed directly with the installation:

Checking the scope of delivery

If you want to get an overview of the machine first:

Machine overview
