Applies to: E5

Inserting and exchanging tools

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

The workflow for restoration is as follows:

→

→

→

NOTICE

Damaging of the spindle or the tool positions if you use improper tools

Inappropriate tools may damage the spindle collet chuck and/or tool positions.

  • Use only tools with a sufficiently large chamfer on the tool shaft.

  • Install a retaining ring as a stop ring according to DIN 471-A3.

    This does not apply to AirTools.

  • See the further instructions in chapter Technical data.

The machine requires different tools for the different machining strategies during a job.

vhf tools and match codes

Automatic or manual tool change

Tool change can take place automatically via the tool magazine or manually via the collet chuck. Since each tool position can be configured individually, automatic and manual changes are possible in parallel.

Automatic tool change properties

  • The machine automatically loads the necessary tools from the magazine during machining.

  • You must insert all required tools into the tool magazine before the job begins.

  • Default case for all tool positions where no manual change is configured in DentalCNC.

Automatic tool change is not possible in the following cases:

  • A tool position is worn out and can no longer hold any tools properly.

  • You use tools which do not fit into the tool magazine.

Manual tool change properties

  • During the application, you manually insert the tools into the spindle’s collet chuck at the request of DentalCNC.

  • You must configure this manual tool change for individual tool positions in DentalCNC.

  • This is described in the DentalCNCmanual.

    Forcing a manual tool change for certain tool positions

Inserting tools into the tool magazine

You can equip the tool magazine of your machine in two ways:

  • By manual insertion into the tool magazine This is the fastest way. It is described below.
  • About the spindle You insert a tool into the collet chuck and the spindle places the tool in the tool magazine. This option takes more time, but might be more convenient for some. It is described in the documentation for the manufacturing software.

(marked orange) tool magazine and insert for the AirTool (marked green)

Manual tool insertion:

  1. CAUTION!Wear gloves.

  2. Open the working chamber door.

  3. NOTICE! Remove worn or damaged tools from the tool magazine. DentalCNC shows tool life in the tool management view.

      4. NOTICE! Tool breakage and faulty processing results due to incorrect tool assignment

    • Make sure that the positions of the tools in the tool magazine correspond to the positions in DentalCNC.

      •

    • Insert the tools in the tool positions with the edge facing downward. Push them in until the ring engages the tool magazine insert.

      • The vhftool packaging helps you to insert the tools.



      1. Ring

      2. Tool magazine insert

      NOTICE! Incorrect processing results when not using the AirTool

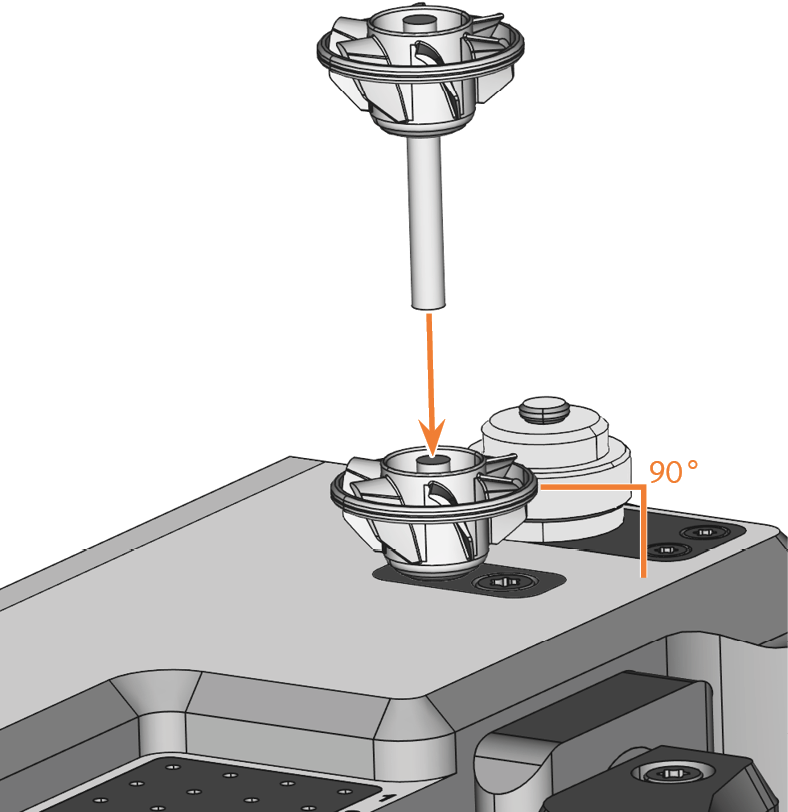

    • Insert the required AirTool into position E1. Slide it in until the propeller engages the tool magazine insert.

      DentalCNC shows the tool match code with the suffix -T in position E1.

      •

  4. If the new tool replaces an old tool of the same type, reset the tool life to DentalCNC.

Removing tools from the tool magazine

  1. CAUTION!Wear gloves.

  2. Open the working chamber door.

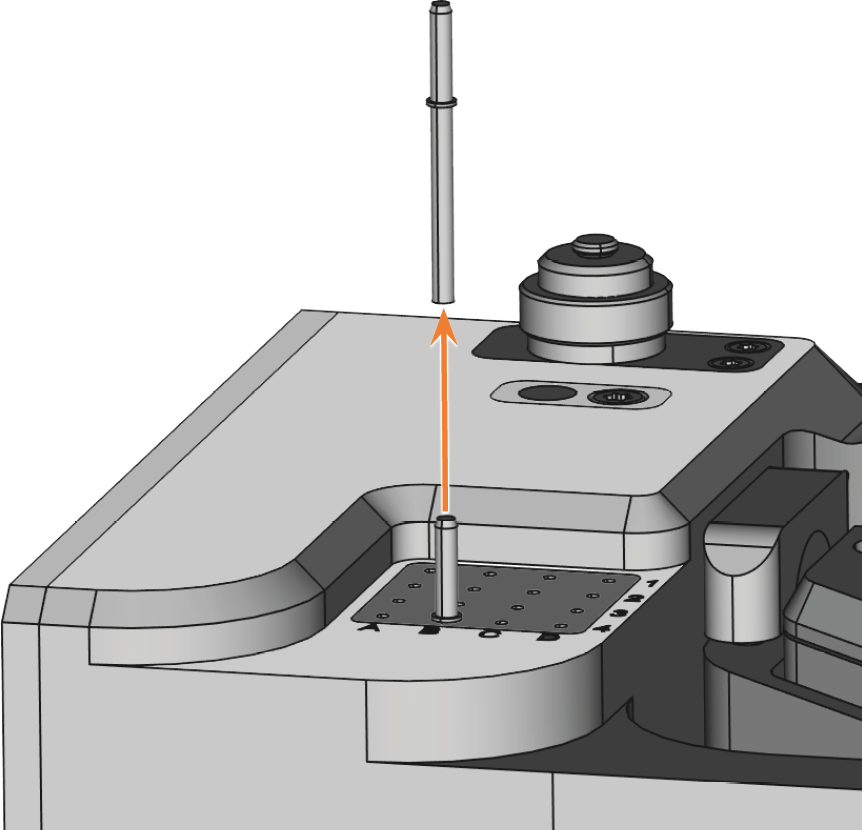

  3. Pull the tool upward out of the tool magazine.

  4. Depending on whether you place the tool back in your inventory or no longer use the tool type, configure DentalCNC accordingly:



Adding backup tools

If the tool life of a tool expires during machining, DentalCNC can automatically load a backup tool from the tool magazine to continue machining.

  1. Place backup tools in the tool magazine.

  2. Configure the backup tools in DentalCNC.

    Adding backup tools

Using ATB

You can store your tools in the ATB (Administrated Tool Board) provided.

You can store your tools with the Administrated Tool Board (Administrated Tool Board) that comes with the dry set.

  • Positions 1–9 and 14–22 can be used for conventional dental tools with retaining ring, which are suitable for your machine.

  • Positions 10–13 are suitable for 1 AirTool each.

The virtual ATB in DentalCNC maps the structure of the physical ATB. Clearly assigning physical and virtual tools lets you easily track tool lives in DentalCNC.

Empty ATB

Empty virtual ATB in DentalCNC

Filled ATB

What's next?

Start the job:

Starting, interrupting, canceling jobs
