Applies to: E4

Transportation and storage



WARNING

Injuries caused by unsafe transportation

If you transport the machine unsafely, the machine may slip and cause injuries.

Parts that are not properly mounted can fall and injure you and/or become damaged.

  • Only stack machines that are properly packed and secured against slipping.

  • Do not stack any loads on the machines.
  • Only transport packed machines on the provided pallet. Secure the machine against slipping.
  • Ensure that only trained personnel transport the machine to and from the installation site.
  • Always transport the machine in an upright position.
  • Transport and position the machine with as many people as required for the weight of the machine in accordance with local and / or national laws and regulations.
NOTICE

Machine damage due to improper transport and / or storage

  • Ensure that all conditions set forth in the chapter are met during the entire transport and / or storage period Technical data.

Transporting the machine in the carton

  • Grasp the carton by the recessed handles.

Storing the machine

  1. Clean the machine.

  2. If the machine was used for wet machining:

    1. Rinse the cooling liquid system.
    2. Empty and clean the cooling liquid tank. Ensure that the tank is completely dry.
    3. Clean the working chamber. Ensure that the working chamber is completely dry.

  3. Switch off the machine at the main power switch.

  4. Disassemble the machine by following the installation instructions in reverse order.

Putting the machine back into operation after storage

  • Follow the instructions for initial start-up.

Commissioning

Packing the machine

Preparing transport

  1. Clean the machine. Cleaning the machine

  2. If the machine was used for wet machining:

    1. Rinse the cooling liquid system.
    2. Empty and clean the cooling liquid tank. Ensure that the tank is completely dry.
    3. Clean the working chamber. Ensure that the working chamber is completely dry.
    4. Remove the drain insert from the working chamber.

  3. In case of overseas transport, take proper measures against corrosion.

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

Packing the machine

  1. Have ready:

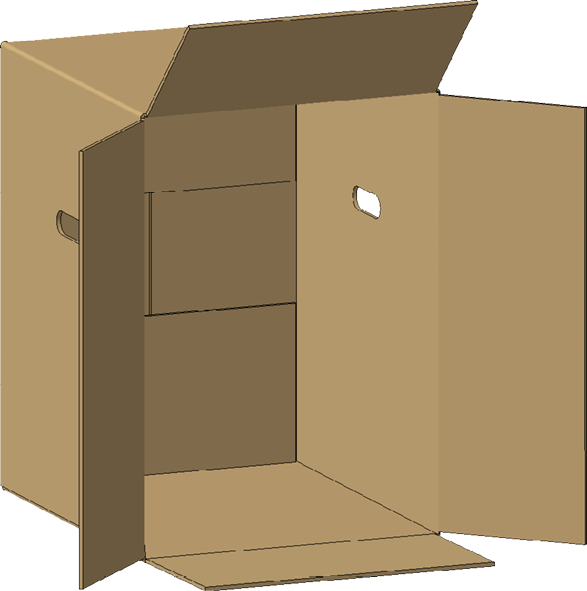

    • 1 x Transport carton



    • 1 x Inserter



    • 1 x Top pad



    • 1 x Bottom pad



    • 1 x Support pad

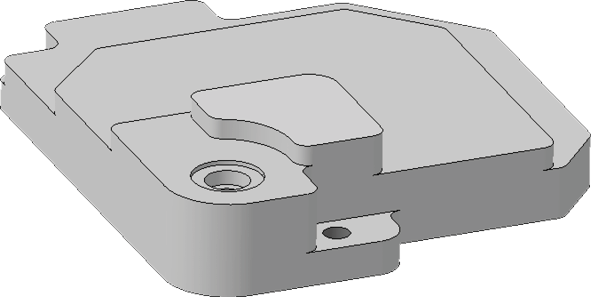

    • 1 x Transport lock, upper part

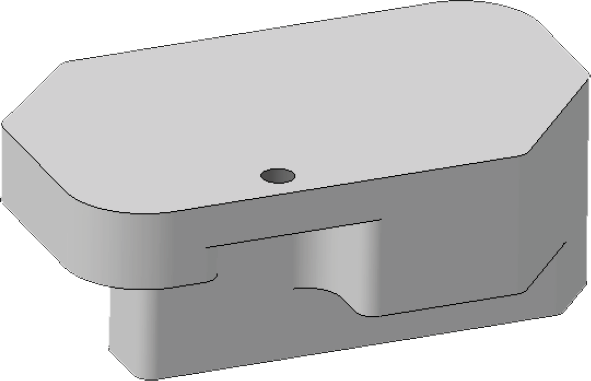

    • 1 x Transport lock, lower part



    • 6 x Plastic dowel



    • 1 x Accessory box 1



    • 1 x Accessory box 2

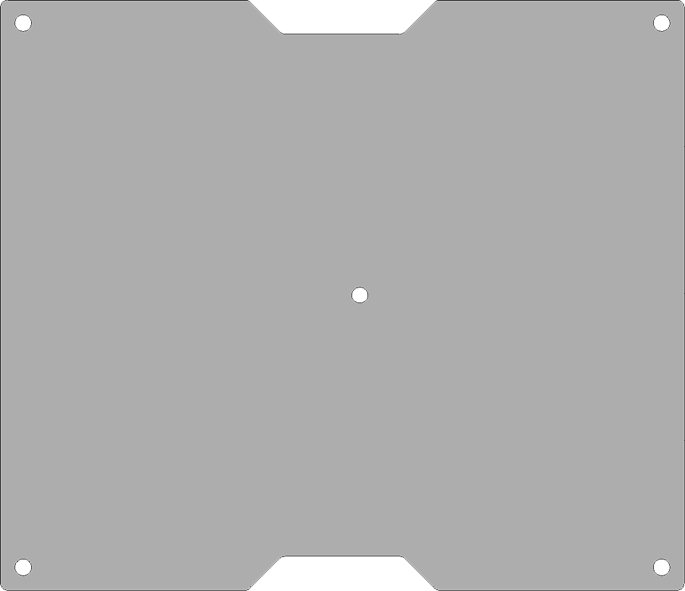

    • 1 x Accessory cover

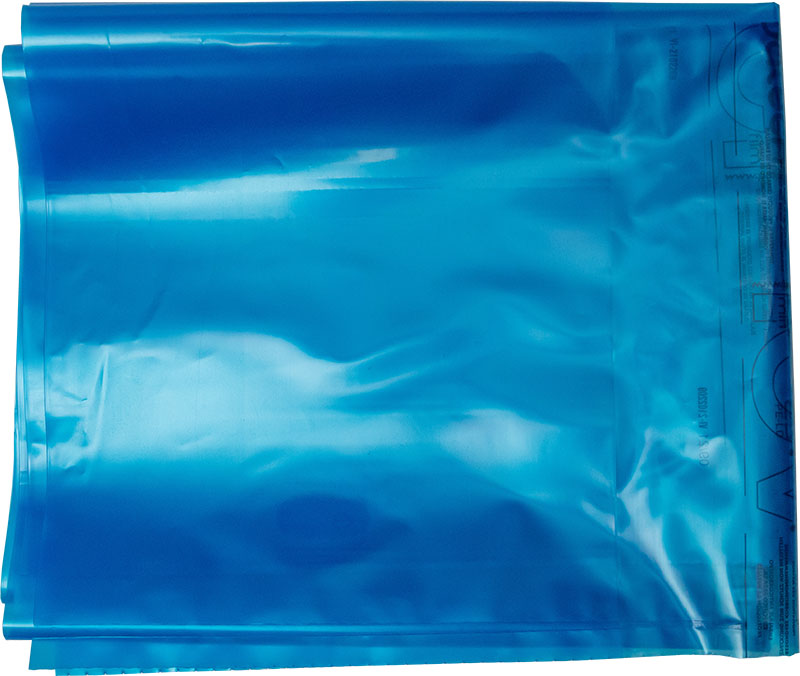

    • 1 x Transport protection cover



    • 1 x Housing protection cover



    • 1 x Adhesive tape



  2. If possible, use the original packaging. If the original packaging is not available, use packaging of similar size and quality.

    Original packaging is available from customer service.

  3. CAUTION!Wear gloves.

  4. Open the working chamber door.

  5. Remove the blank from the blank holder if present.

  6. Close the working chamber door.

    7.





  7. Start DentalCNC.

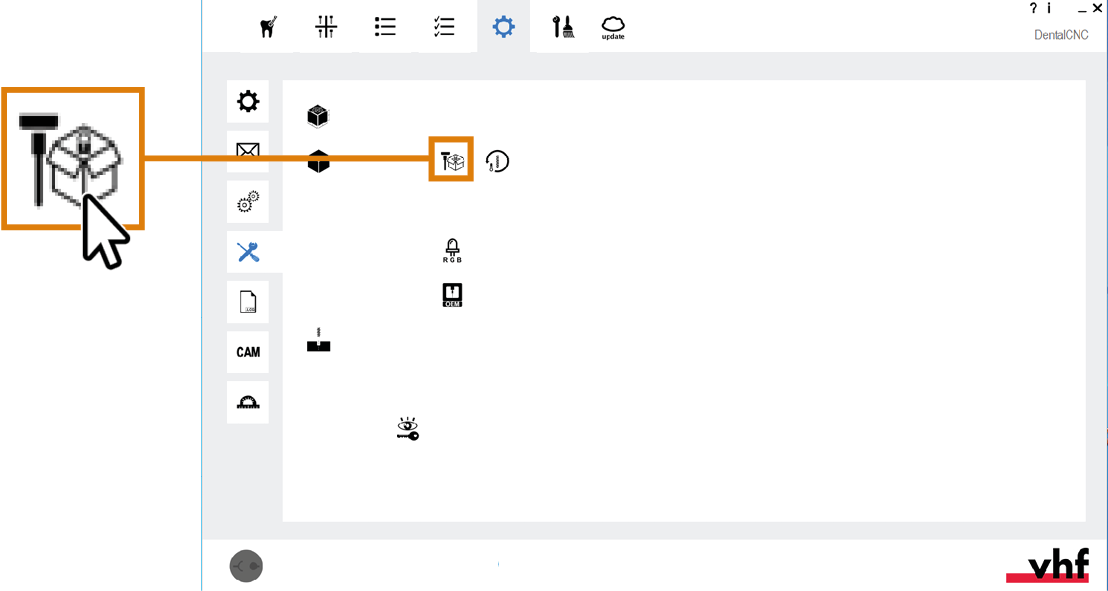

  8. Move the spindle to the transport position.

    Moving the spindle into transport position

  9. Close DentalCNC.

    10.





  10. Open the working chamber door.

  11. DANGER!Switch off the machine at the main power switch.

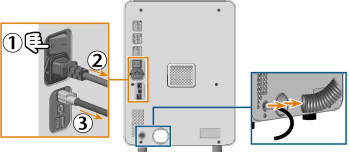

  12. Disconnect the machine from all lines.

    13.



  13. Attach the transport lock in the working chamber:

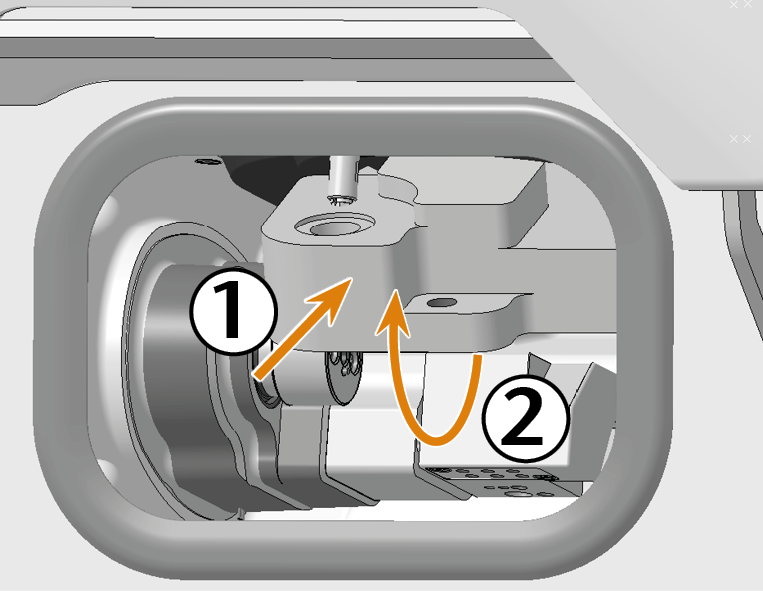

    1. Slide the upper part in at a downward angle and tilt it upward.

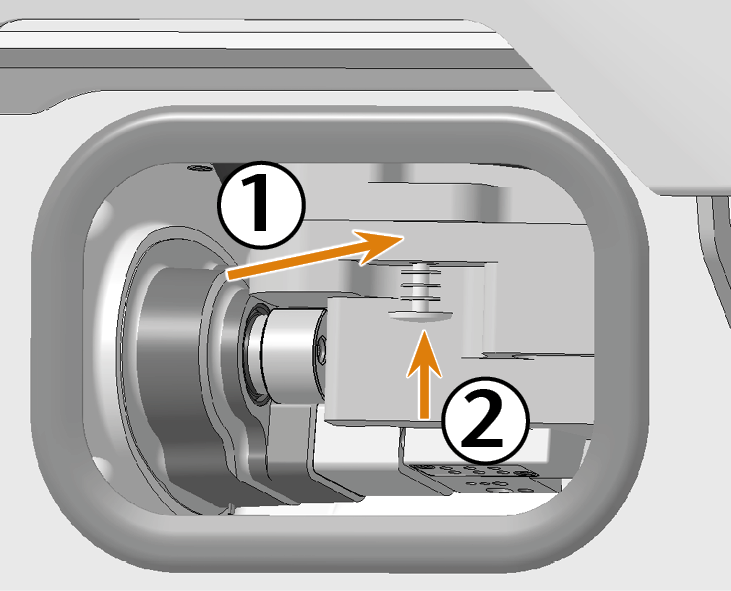

    2. Push the lower part into the machine.

    3. Press the plastic dowel into the transport lock from below.

    14.



  14. Place the protective housing cover over the machine from above.

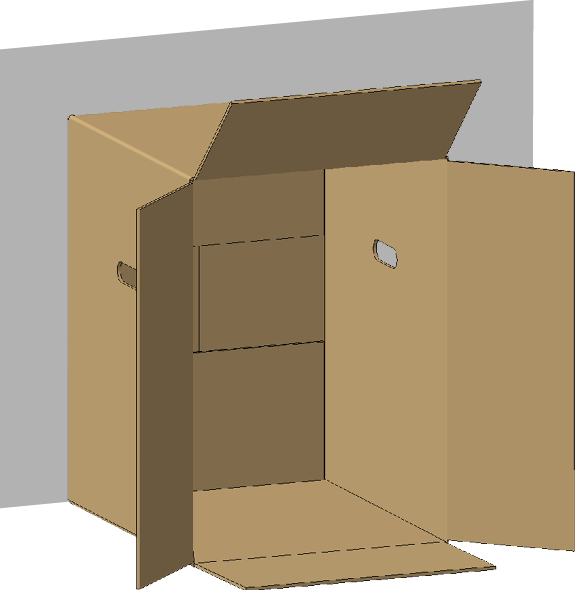

  15. Place the transport carton on a surface that can support the machine weight including the packing set.

    • Open the carton at the front with the label Open here.

    • Recommendation: The back of the carton should touch a solid wall. Otherwise, you will need a 2nd person for inserting the machine.

  16. Place the inserter in front of the transport carton such that the handle (marked in green) is on the opposite side of the carton opening.

    17.

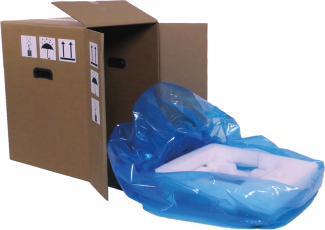

  17. Spread out the blue protective transport cover evenly on the inserter with the opening facing upwards.

  18. Center the bottom pad in the protective transport cover.

  19. Press down the protective transport cover on all sides such that the surface of the bottom pad is exposed.

  20. Slide your hands under the machine until you have a firm grip on the underside of the machine.

  21. Lift the machine into the bottom pad:

    • The back of the machine points towards the carton opening.

    • The left and right grip recesses in the bottom pad provide room for your hands.

    22.

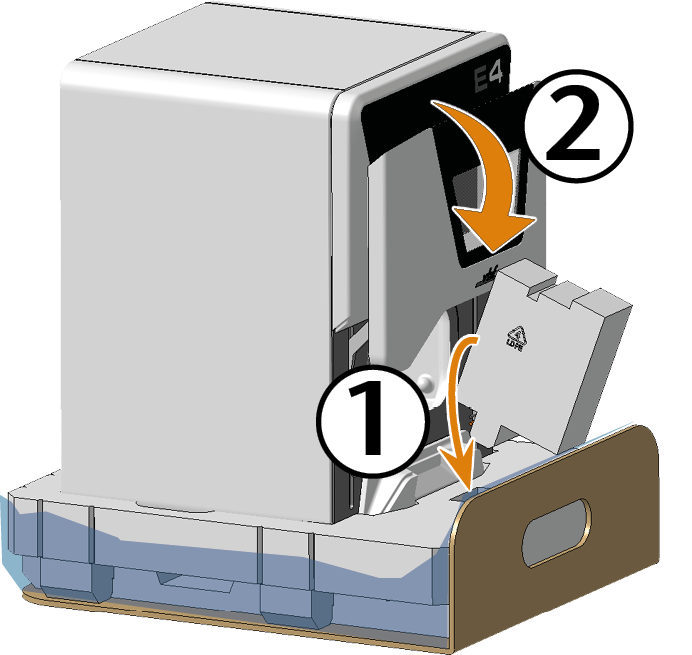

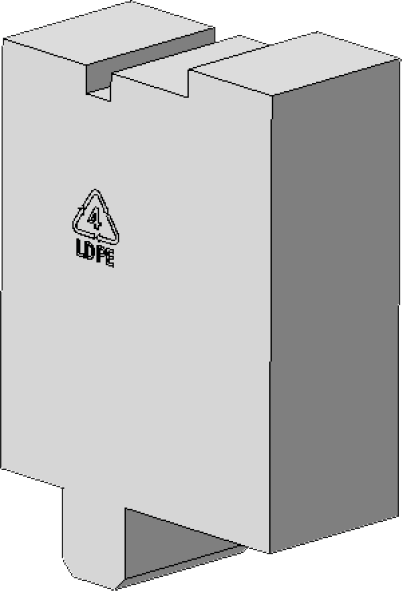

  22. Place the support pad in the bottom pad and close the working chamber door until it rests on the support pad.

  23. Place the top pad on the machine top.

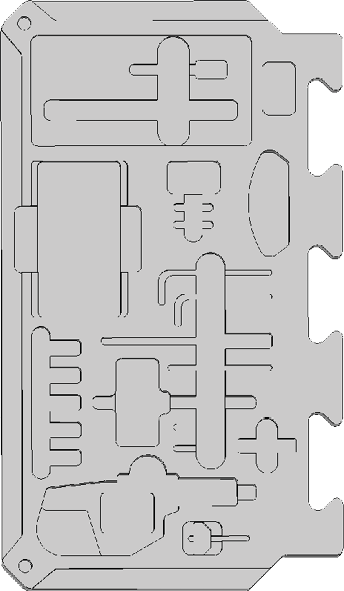

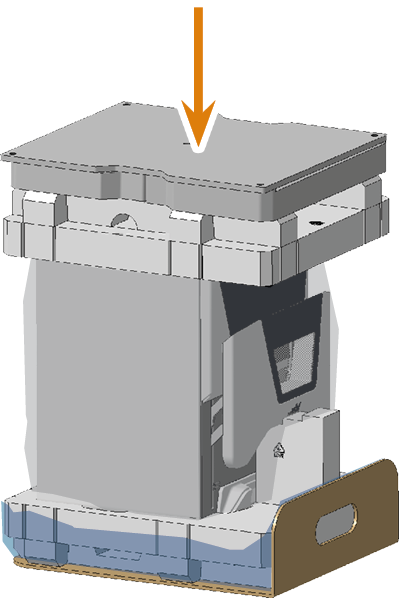

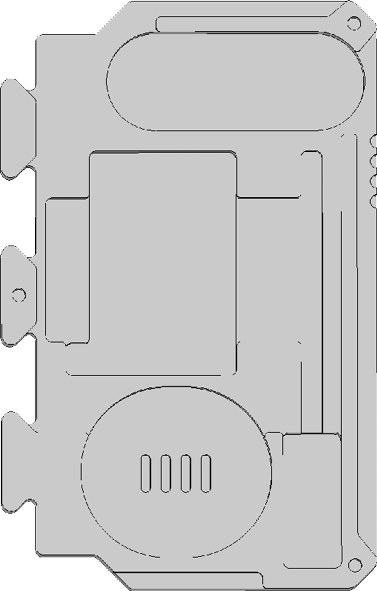

  24. Place the accessory pad on the top pad. The accessory pad consists of accessory box 1, accessory box 2 and the accessory cover.

    If customer service has asked you to send in accessories, stow the items in the accessory pad.

    25.

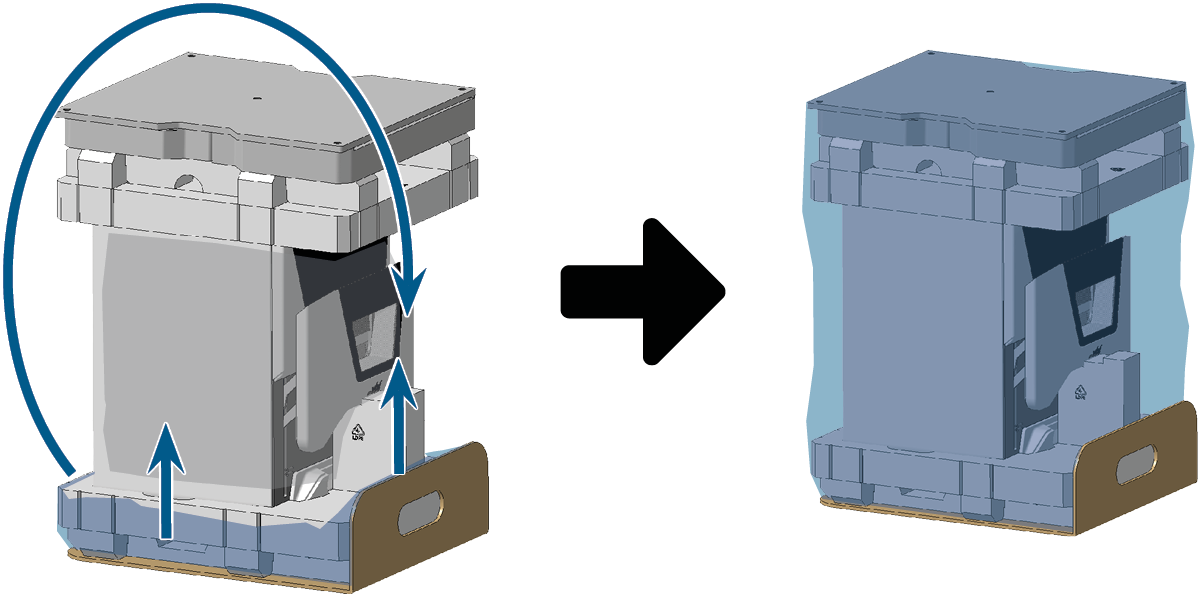

  25. Pull the protective transport cover over the machine on all sides until the ends meet in front of the working chamber door.

  26. Tape the ends of the protective transport cover together with adhesive tape.

  27. If the back of the transport carton is not in contact with a solid wall, have a 2nd person hold the carton in place.

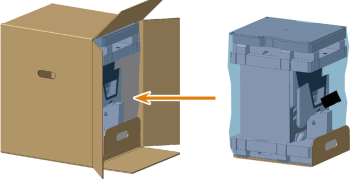

  28. Slowly slide the machine including the inserter into the transport carton.

    The machine must not slip off the inserter.

  29. Close the transport carton.

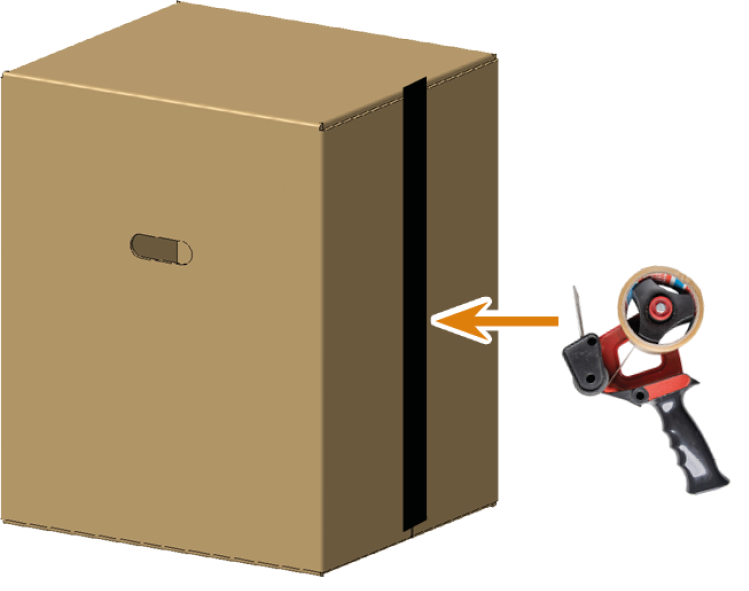

  30. Tape the closing flaps together with adhesive tape.
