Milling zirconia

How to mill zirconia? Are there nesting guidelines for zirconia discs?

• Milling zirconia
• • Introduction
  • • Collet chuck
    • DentalCNC
  • Machines suitable for zirconium oxide
  • Tools for machining zirconia
  • Correct setting of bars
  • • Positioning bars in X- and Y-direction
    • Positioning bars in Z-direction
  • Special recommendations for nesting objects in translucent zirconia discs
  • • Small and medium sized objects
    • Medium sized objects
    • Multiunit bridge with a sinter bar and several small objects

Introduction

Collet chuck

If you want to achieve perfect results, you should pay attention to the following points:

• The collet chuck of the spindle needs to be tightened firmly, otherwise the tool will be pressed into the collet chuck.
• The collet chuck of the spindle needs to be clean and without grease inside, otherwise rotational imperfections during machining will degrade the machining results and can cause tool breakages.
• The STL file must be free from design errors .

DentalCNC

To increase process reliability, we recommend the following:

• Activate the option Individual processing in DentalCAM.
• Add at least 1 backup tool to the tool magazine in case of a tool breakage.

Machines suitable for zirconium oxide

Machine	Wet /dry machining	Material	Supported holder
K4 / K4 edition	Dry machining	Blanks Only K4 edition: Blocks	Only K4 edition: Block holder
K5 / K5+	Dry machining	Discs, Blocks	Block holder
N4 / N4+	Wet machining	Blocks
R5	Dry machining	Discs, Blocks	Block holder
S1	Dry machining	Discs, Blocks	Block holder
S2 / S5	Dry machining	Discs, Blocks	Block holder
Z4	Wet machining	Blocks

Tools for machining zirconia

Match code (4-axis except E4)	Match code (5-axis plus E4)	Cutting edge diameter	Tool geometry	Teeth	DentalCAM 7	DentalCAM 8
Z060–R2D–35	Z060–R2D–40	0.6 mm	Radius	2	Yes	Yes
Z100–R2–35	Z100–R2–40	1.00 mm	Radius	2	Yes	Yes
Z100–R2D–35	Z100–R2D–40	1.00 mm	Radius	2	Yes	Yes
Z120–F2D–35	Z120–F2D–40	1.20 mm	Flat	2	Yes	Yes
Z200–R3–35	Z200–R3–40	2.00 mm	Radius	3	Yes	Yes
Z200–R3D–35	Z200–R3D–40	2.00 mm	Radius	3	Yes	Yes
-	Z200-R3D–40-T	2.00 mm	Radius	3	No	Yes

We highly recommend the use of original vhf tools for optimal results and a high service life of your machine and its components.

Correct setting of bars

Positioning bars in X- and Y-direction

Correct	Incorrect	Description
		Place bars evenly on all sides If you place bars on only one side, vibration during machining may occur. This can lead to the blank or tool getting damaged. Correct (left): Bars on all sides of the object Incorrect (right): Bars on only one side of the object
		Place bars with sufficient distance from each other If there isn't enough space between bars, the air nozzle of the spindle may not be able to blow off machining debris as required, which can damage the tool. Correct (left): Bars with suitable distances between them Incorrect (right): Bars without suitable distances between them
		Set enough bars You should at least set 3 bars for each object. Multi-unit-objects generally require 2 bars per unit. Otherwise, vibrations may occur during machining, which can lead to the blank or tool getting damaged. Correct (left): Enough bars have been set Incorrect (right): Too few bars have been set

Positioning bars in Z-direction

• Position all bars on the equator. If the equator is on the prepline, position the bar approx. 1 mm above the equator.

You need to position all bars completely on the object.

The bar in the figure below is positioned too high. Only a part of the bar is positioned on the object.

The bar in the figure below is positioned too low. Only a part of the bar is positioned on the object. Additionally, the bar is positioned on the prepline.

The bar in the figure below is correctly positioned on the equator.

Special recommendations for nesting objects in translucent zirconia discs

Translucent zirconia discs can be very sensitive and are easily damaged or scratched. Therefore, we recommend that you follow the general steps below when nesting objects in translucent zirconia discs.

• If possible, nest objects from the center to the disc border.
• If you activate the Deactivate safety distance to the blank border option in the DentalCAM settings, only mount the discs directly into the blank holder. Do not use the blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead.
• If you add objects to a disc and process it multiple times, follow the guidelines for different object sizes below.

Small and medium sized objects

If you process a disc multiple times, we recommend that you nest small and medium sized objects in the following way:

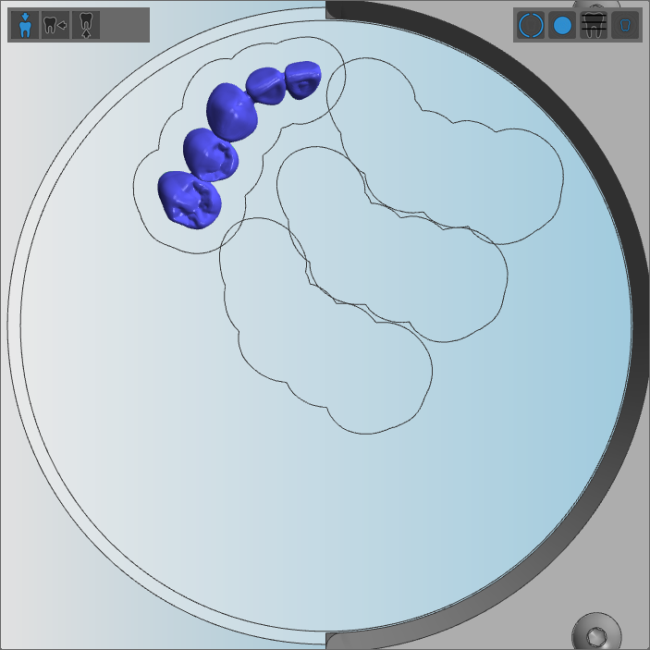

1. Position a small, round object in the disc center.
2. Position the next objects circularly around the first object.
3. Continue to nest objects from inside out.
• You have nested objects from the blank center towards the border.

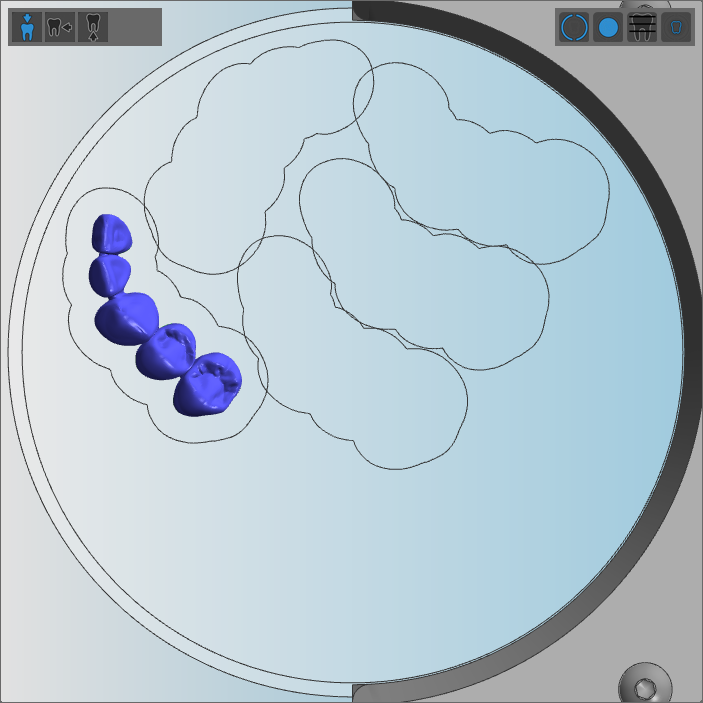

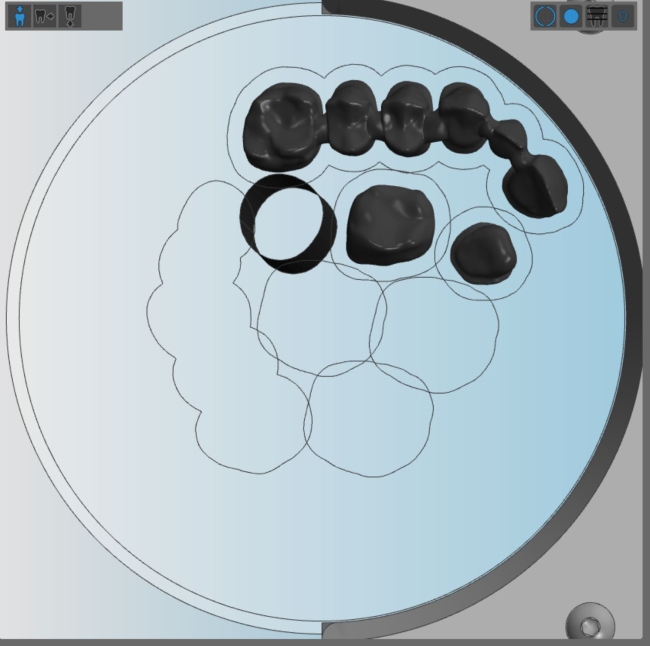

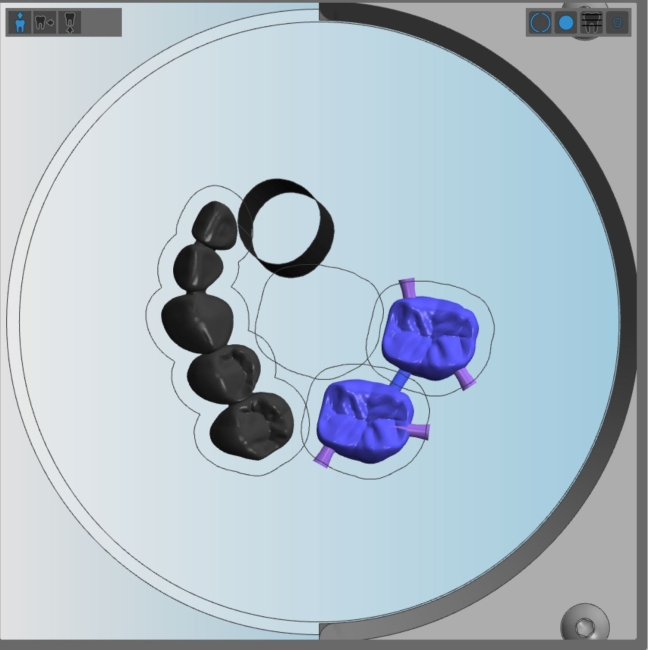

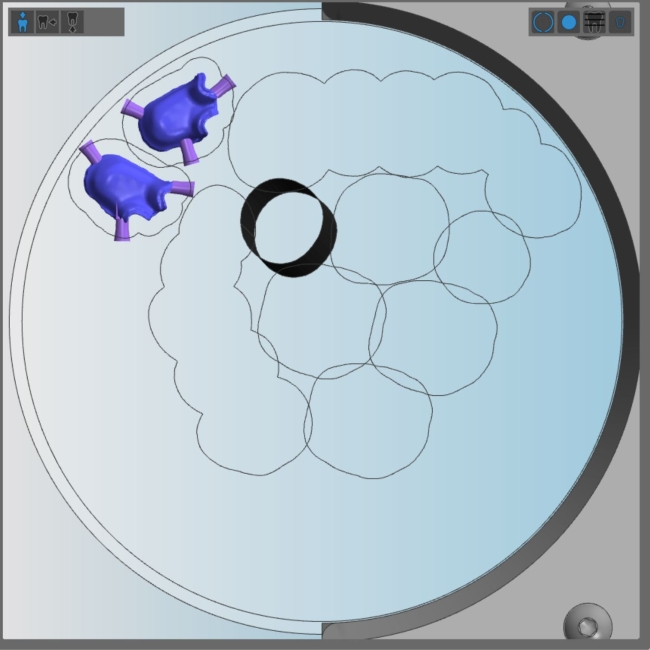

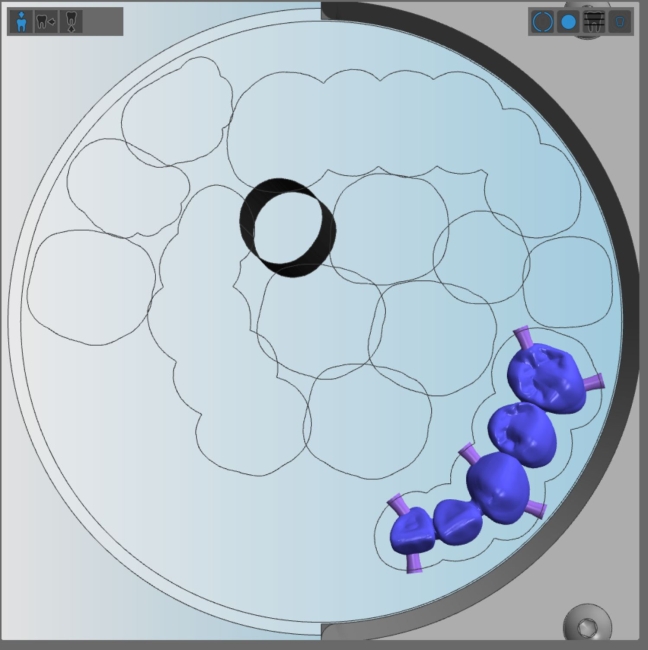

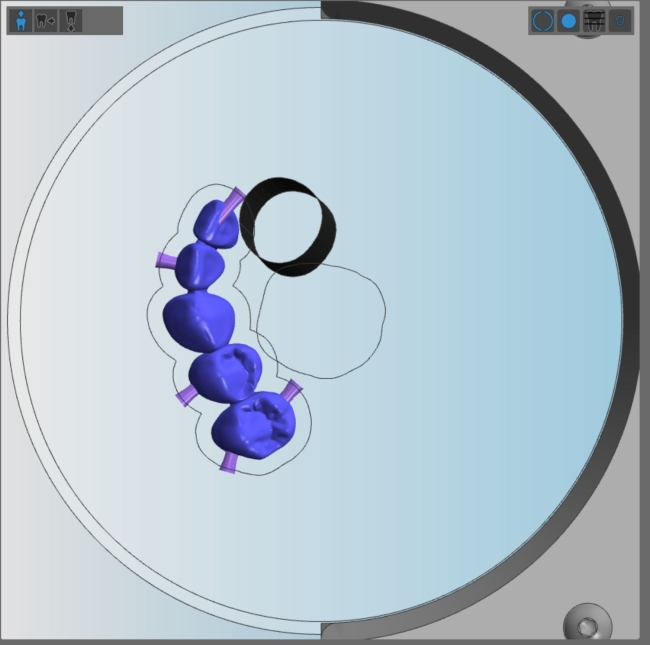

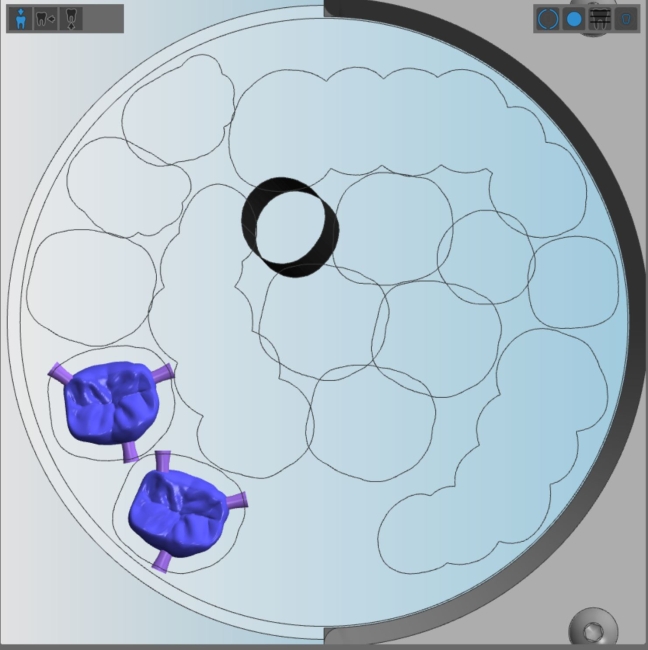

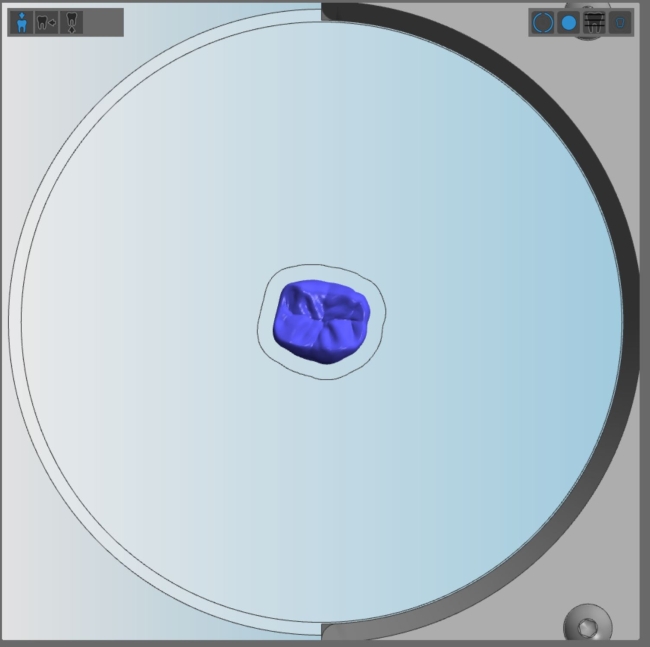

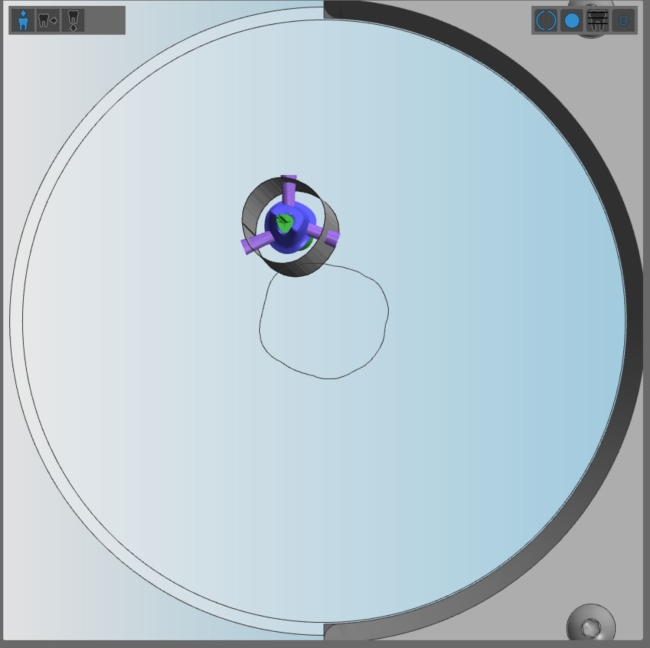

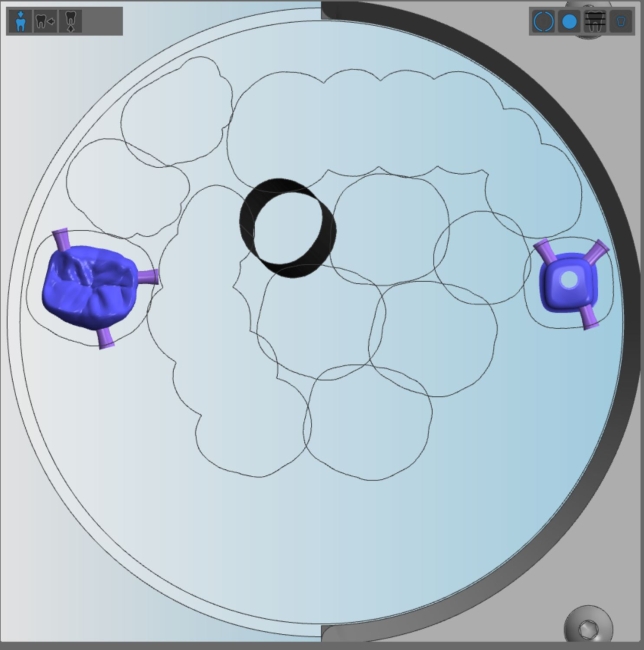

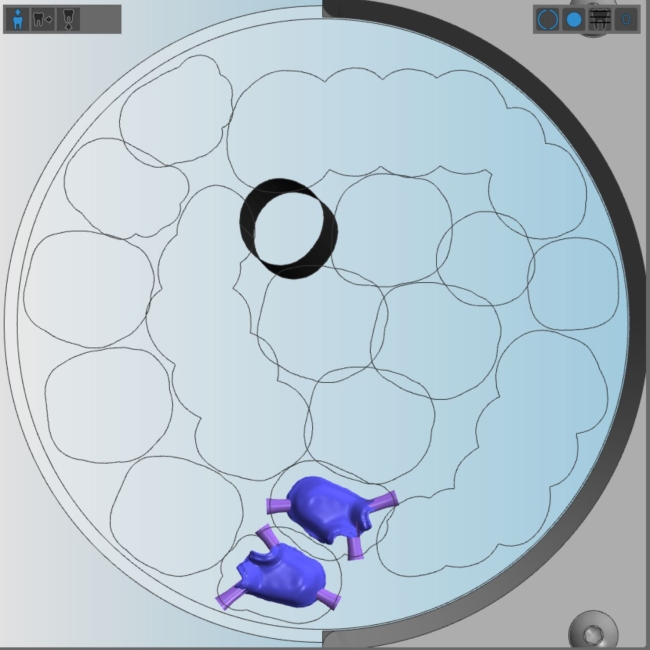

Example:

Medium sized objects

If you process a disc multiple times, we recommend that you nest medium sized objects in the following way:

1. Position the first object in the disc center.
2. Position the next object adjacent to the first object.
3. Continue to nest objects from inside out.
• You have nested objects from the blank center towards the border.

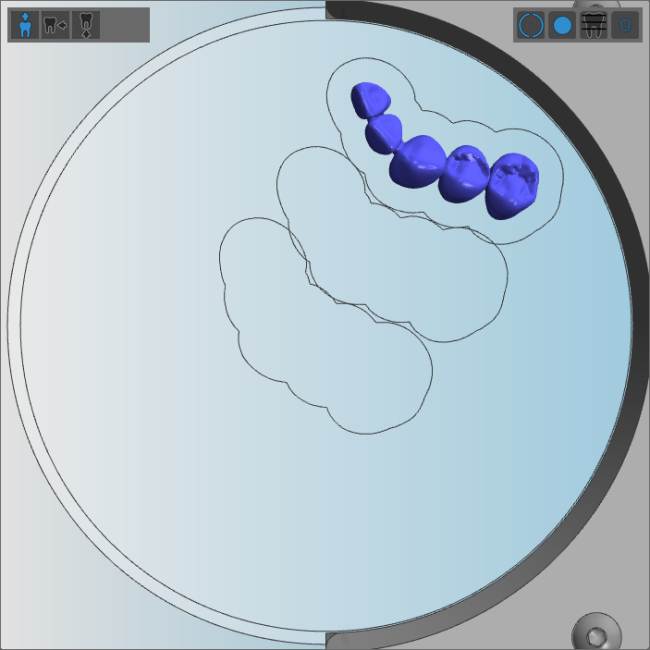

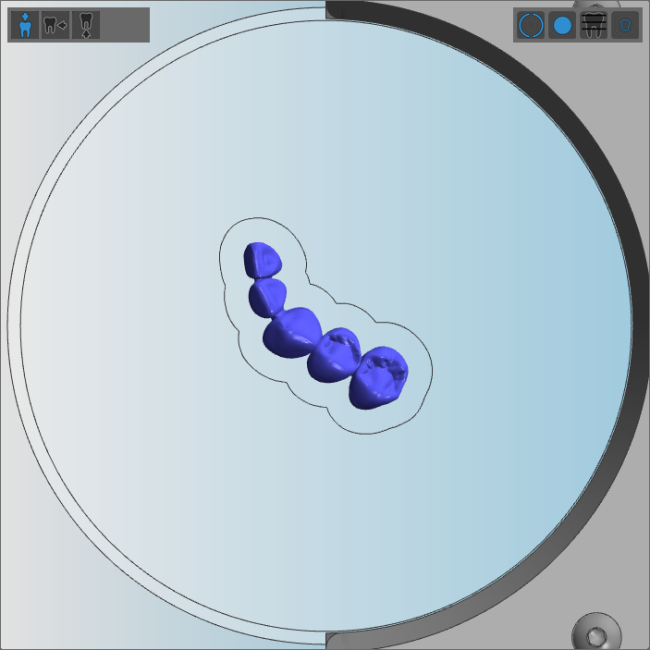

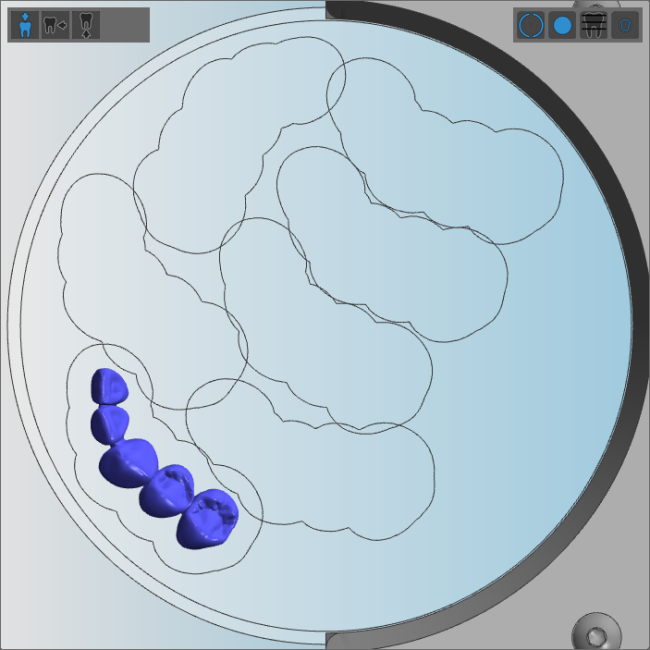

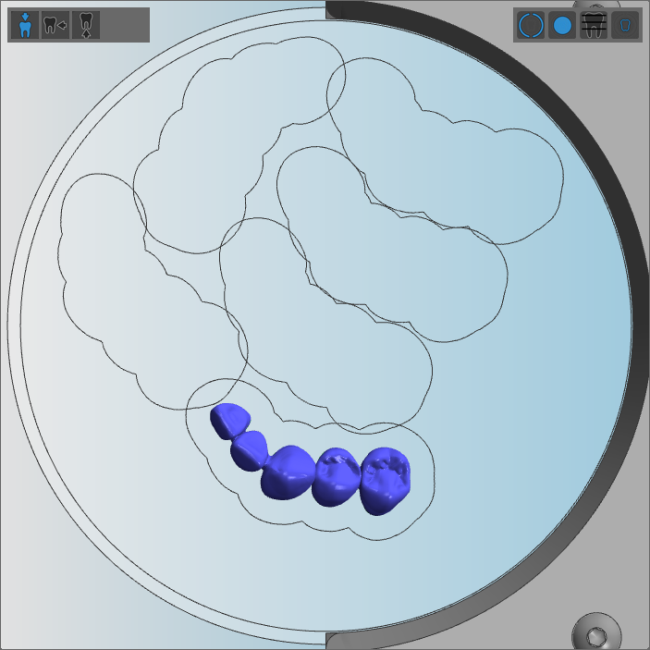

Example:

Multiunit bridge with a sinter bar and several small objects

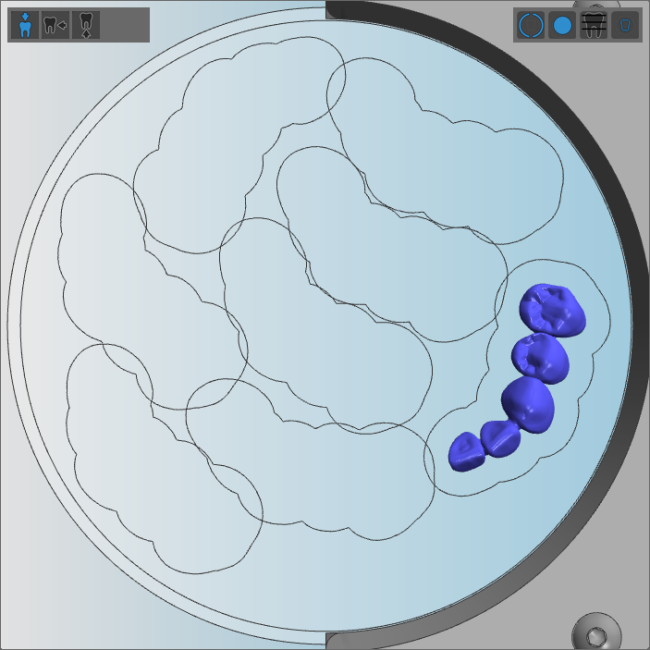

If you process the disc multiple times, we recommend that nest said objects in the following way:

1. Position the multi-unit bridge on the left side of the disc. Otherwise, you would not be able to reuse the disc because its stability would be too low after removing the bridge.
2. Execute the job.
3. Position the smaller objects in the remaining area.

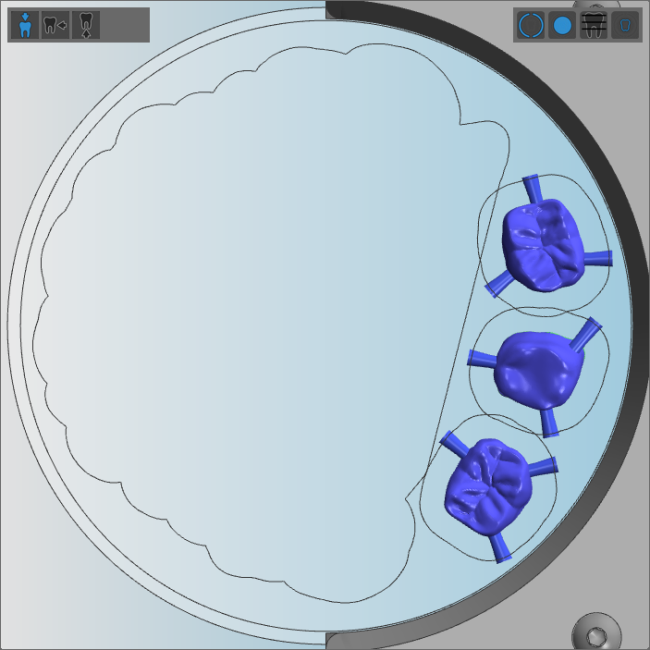

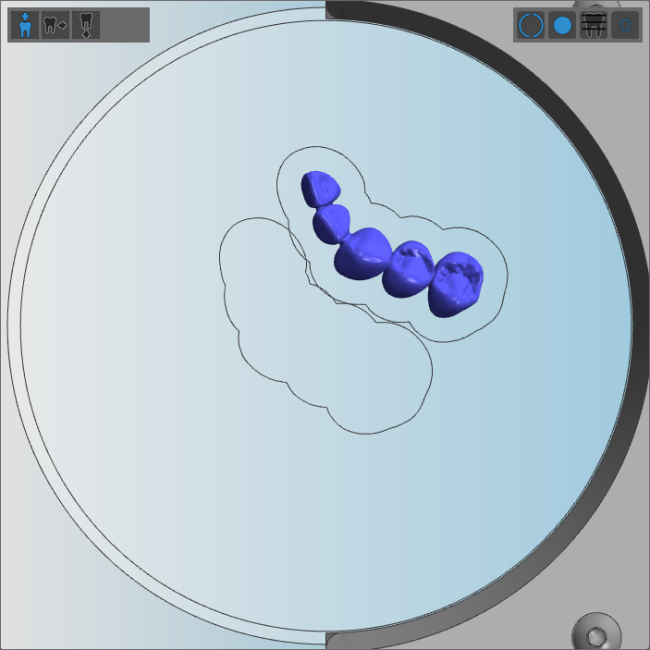

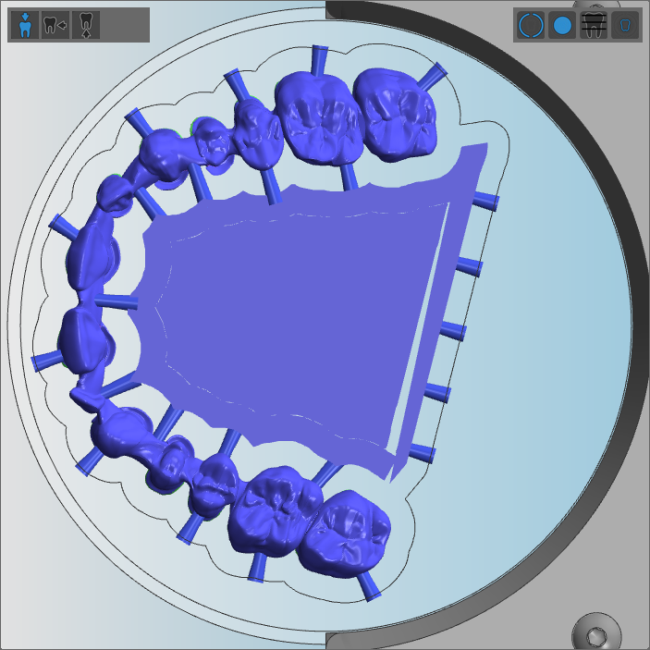

Example:
