Applies to: Z4

Machine overview

Front side of the machine



  1. Working chamber door
  2. Touchscreen for controlling the machine
  3. View window to the working chamber
  4. Multi-purpose drawer

Rear side of the machine

Machines from serial number Z4ID4... are delivered with an external CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.. Machines with serial number Z4ID2... + Z4ID3... can be retrofitted with an external CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.. The external CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC. is more powerful and more accessible. This does not change the processing with the machine.

Machines with internal CAM computer



  1. Start button
  2. Main power switch
  3. CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC. panel
  4. Network port (Ethernet RJ-45)
  5. Power connection
  6. Identification plate

CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC. panel internal CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.

  1. HDMI 1.4b port
  2. USB 2.0 port with WiFi device

Machines with external CAM computer

Machines from 2022-08 and retrofitted machines

  1. Main power switch
  2. CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.
  3. USB port 2.0 Type B
  4. Opening for emergency release of the drawer
  5. Identification plate
  6. Network port (Ethernet RJ-45)
  7. Power connection

The machines are delivered with different variants of the CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.. Follow the instructions for your variant.

Variant 1

Sockets for CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.

  1. Start button
  2. Power connection
  3. Network port (Ethernet RJ-45)
  4. DP 1.2
  5. WiFi antenna
  6. Network port (Ethernet RJ-45)
  7. USB port 2.0 Type A
  8. WiFi antenna

Variant 2

Sockets for CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.

  1. Start button
  2. Power connection
  3. HDMI port 1.4
  4. DP 1.2
  5. Network port (Ethernet RJ-45)
  6. USB port 3.1 Gen 1
  7. USB port 2.0 Type A

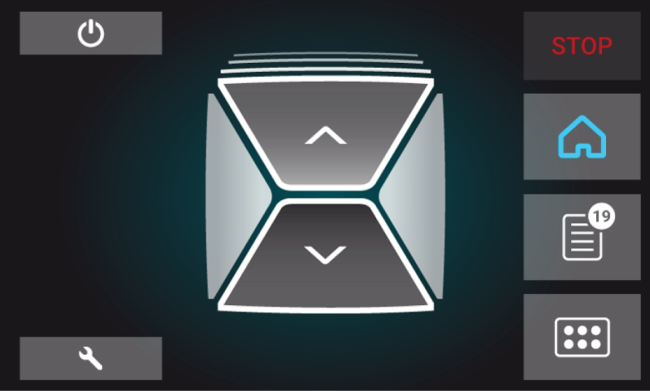

Touchscreen

The screen in the working chamber door of your machine responds to touch. You can use it to operate the machine by selecting icons on the user interface and to receive information about jobs, tools and the machine status.

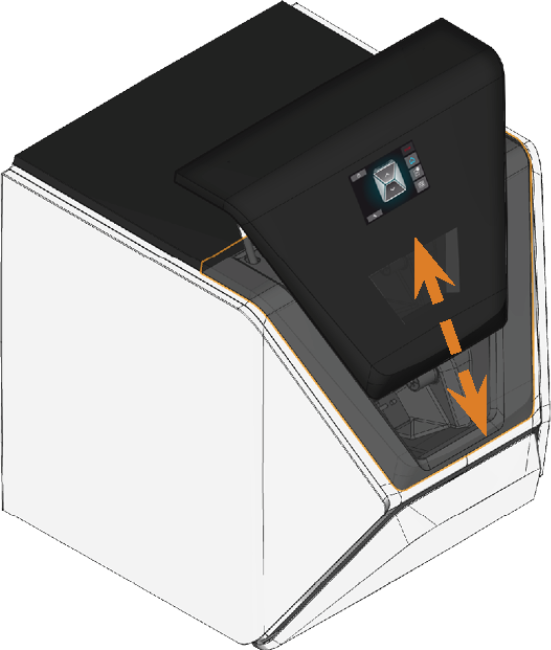

Working chamber door

The working chamber door locks the working chamber and protects the user from injuries during operation.

The working chamber door is operated by electricity. You can open and close the door via the touchscreen or with DentalCNC. You cannot open the door when the machine is switched off or while the axes are moving.



Working chamber



  1. Bellow / Nozzle plate
  2. Spindle with collet chuck for picking up tools
  3. Blank holder (with collet chuck); Rotational axis A
  4. Outlet for the cooling liquid
  5. Tool magazine holder
  6. Measuring sensor
  7. Webcam

Colors of the working chamber lighting

Color

Status

Working chamber door

White

The machine is ready for operation.

unlocked

Blue

The machine is operating.

locked

Red

A machine malfunction has occured.

locked

Multi-purpose drawer

The multi-purpose drawer contains the cooling liquid tank and up to 5 tool magazines. You can unlock the multi-purpose drawer via the touchscreen and then pull it out manually.



  1. Machine serial number
  2. Cooling liquid tank
  3. Cover of the cooling liquid tank with strainer basket
  4. Space for tool magazines

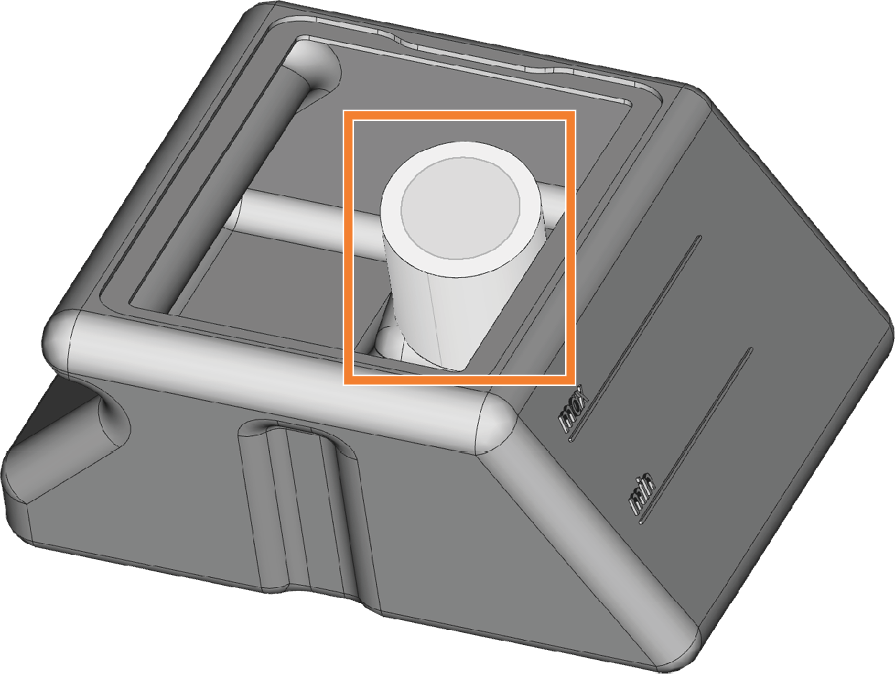

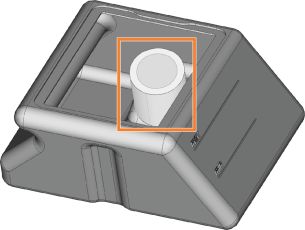

Cooling liquid filter

The cooling liquid filter is in cooling liquid tank.



Required computer hardware & software

This machine is designed for an integrated CAD / CAM workflow which allows you to manufacture restorations with the following components:

*Not included

You can use the touchscreen for standard operation and basic maintenance.

If you do not use an integrated CAD / CAM workflow, you will need to access Windows® on the CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC. during standard operation to directly work with DentalCAM & DentalCNC.

Identification plate and serial number

The identification plate of the machine contains identifying information such as the serial number. You can find the identification plate and machine serial number at the following location: Rear side of the machine
