Applies to: R5

Machine overview

Front side of the machine



  1. Connection panel and main power switch on the back

    Rear side of the machine

  2. Hose connection for the air extraction system

  3. Working chamber door

    Working chamber door

  4. View window to the working chamber

  5. Multi-purpose compartment

    Multi-purpose compartment

Rear side of the machine



  1. Main power switch
  2. Identification plate
  3. Pneumatic connection
  4. Network port (Ethernet RJ-45)
  5. Air extraction interface (6 pins, IEC 61076-2-106)
  6. Power connection including glass fuse T6,3A L250V

Working chamber door

The working chamber door locks the working chamber and protects the user from injuries during operation.

The working chamber door is operated by electricity. You can open and close the door with DentalCNC. You cannot open the door when the machine is switched off or while the axes are moving.



Multi-purpose compartment

The multi-purpose compartment contains the following components:

You can open and close the multi-purpose compartment via DentalCNC .


The open multi-purpose compartment (discs not included)

  1. Blank magazineClosed Part of the blank changer in which you store the blanks for automatic loading.
  2. Cooling liquid tank

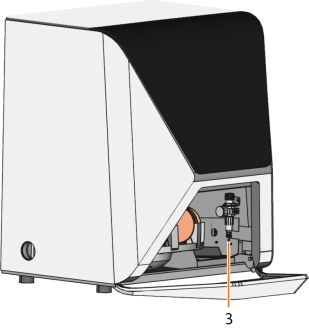

  3. Compressed air regulator (location depends on the series)

Working chamber

You can insert blanks and tools into the working chamber. This is where the blanks are machined.



  1. Webcam
  2. Blank changerClosed Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead flap
  3. Outlet for the cooling liquid
  4. Blank holder; Rotational axis A
  5. Spindle
  6. Measuring sensor
  7. Right ion jet
  8. Tool magazine
  9. Emergency overflow
  10. Air extraction opening
  11. Left ion jet

Colors of the working chamber lighting

Color

Status

White

The machine is ready for operation.

You can open the working chamber door.

Blue

The machine is operating.

The working chamber door is closed.

Red

A machine malfunction has occured.

The working chamber door is closed.

CAM computer

To operate the machine, you must use a computer running Windows® (“CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.”) and specially designed software (“manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC.”). The manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC. consists of the following components:

  • DentalCAMA CAM application for creating and calculating virtual blanks (“jobs”)
  • DentalCNCA CNC application for machining jobs and for maintaining the machine.

To create and design the dental objects you also need a CAD application (sold separately by specialist dealers).

You may want to read the overview of the workflow in DentalCAM and DentalCNC.

Axes

This machine has 5 axes: 3 linear axes and 2 rotational axes.

Linear axes

The spindle moves along these axes.



Rotational axes

The blank holder rotates about these axes.



Identification plate and serial number

The identification plate of the machine contains identifying information such as the serial number. You can find the identification plate and machine serial number at the following location: Rear side of the machine
