Applies to: Wet grinding module

Checking the scope of delivery

The installation steps up to operation are:

→

  • Unpack the machine and ensure that you have received the following items:

Machine, cables, hoses

1

2

3

4

5

6

Cooling liquid accessories

7

8

Maintenance tools and spare parts

9

10

11

12

13

  1. 1 x Wet grinding module

  2. 1 x Control cable for the cooling liquid pump

  3. 1 x IEC cable

  4. 1 x Standard power supply unit, alternatively: Power supply unit RCD wet grinding module

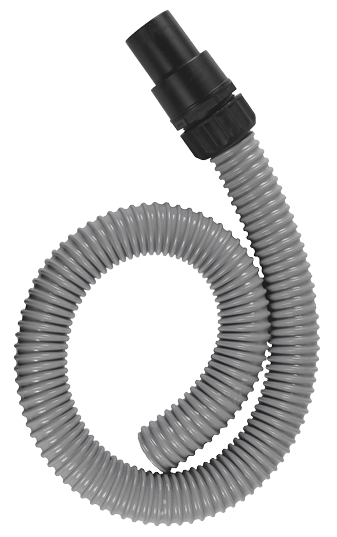

  5. 1 x Connecting hose

  6. 1 x Cooling liquid hose

  7. 1 x Tec Liquid Pro (1 l)

  8. 1 x Container with pH test strips

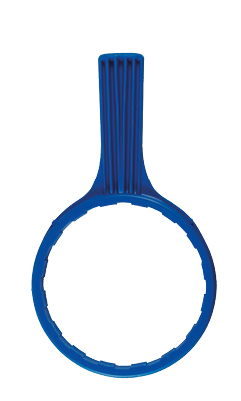

  9. 1 x Installation wrench for filter change

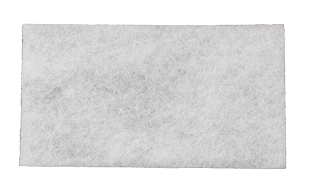

  10. 3 x Coarse filter mat

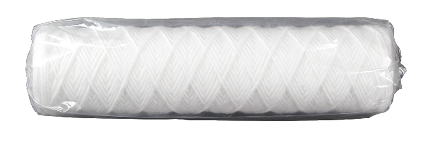

  11. 3 x Fine filter cartridges

  12. 1 x Castor set

  13. 3 x Front cover seal

Not shown:

  • 1 x Brief machine information

  • 1 x Software extension quick reference guide

  • 1 x Cleaning brush

  • 2 x Interdental brush

  • 1 x Measuring cup

  • 3 x Sealing rings

  • 1 x Hexagon screwdriver (1.5 mm)
