Applies to: N4+

Machine overview

Where can I find an overview over the N4+? Is there a description of the N4+?

With your N4+ you can machine blanks of different materials to create high-quality objects for the dental sector. You can find a list of the materials which you can process with the machine in the manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC..

The machine is designed for wet machining.

During wet machining, the tools and blanks are constantly being cooled by cooling liquid.

Front side of the machine

Front side of the machine

  1. Connection panel and main power switch on the back
  2. Identification plate
  3. Recessed grip for opening the working chamber door
  4. Working chamber door
  5. View window to the working chamber
  6. Cooling liquid drawer

Connection panel

Connection panel

  1. Pneumatic connection (6 mm push-in fitting)
  2. Network port (Ethernet RJ-45)
  3. Power connection including glass fuse T6,3A L250V
  4. Main power switch

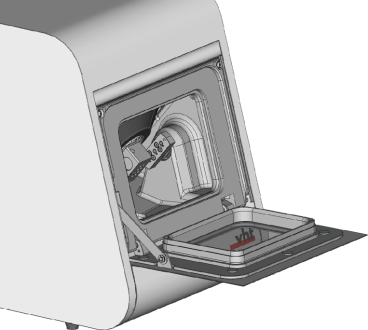

The working chamber door locks the working chamber and protects the user from injuries during operation. You can open and close the working chamber door manually.

You cannot open the door when the machine is switched off or while the axes are moving.

  • To open or close the working chamber door, pull it downwards or push it upwards. Use the recessed grip of the door.

Working chamber door

You can insert blanks and tools into the working chamber. This is where the blanks are machined.

Working chamber

  1. Measuring sensor
  2. Tool magazine
  3. Spindle
  4. Nozzle plate
  5. Blank holder; Rotational axis A
  6. Outlet for the cooling liquid
  7. Webcam

Colors of the working chamber lighting

If the working chamber lighting is insufficient, provide additional lighting.

The machine illuminates the working chamber in different colors. The color will change depending on the state of the machine. You will find the colors and respective machine status in the following table:

Color

Status

Green

The machine is ready for operation.

You can open the working chamber door.

White

The machine is ready for operation.

You can open the working chamber door.

Blue

The machine is operating.

The working chamber door is closed.

Red

A machine malfunction has occured.

The working chamber door is closed.

The cooling liquid tank is located in the cooling liquid drawer below the working chamber. Cooling liquid tank

  • To access the cooling liquid tank, manually pull the cooling liquid drawer out of the machine. Only open the cooling liquid drawer when the working chamber door is closed and the machine is not operating. Immediately wipe up leaked cooling liquid.

Opening the cooling liquid drawer

Cooling liquid drawer

  1. Cover of the cooling liquid tank
  2. Strainer basket
  3. Cooling liquid tank
  • To close the cooling liquid drawer, push it into the machine until it is completely closed.

To operate the machine, you must use a computer running Windows® (“CAM computerClosed The computer that is connected to your machine and which runs DentalCAM and DentalCNC.”) and specially designed software (“manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC.”). The manufacturing softwareClosed Term for the software package consisting of DentalCAM and DentalCNC. consists of the following components:

  • DentalCAMA CAM application for creating and calculating virtual blanks (“jobs”)
  • DentalCNCA CNC application for machining jobs and for maintaining the machine.

To create and design the dental objects you also need a CAD application (sold separately by specialist dealers).

You may want to read the overview of the workflow in DentalCAM and DentalCNC.

The actual sound emission of the machine varies heavily depending on the manufacturing material and the machining conditions.

  • If the machine is exceptionally loud, check the following operating conditions:
  • Cleanliness of the blank holder
  • Condition of the tools
  • Quality of the blank
  • If loud noise cannot be avoided, wear ear protection during machining.

Sound measurement

Measuring conditions:

  • Machined material: MEDENTIKA® PreFace®-Abutment Titanium, 11.5 mm
  • Tool status: new

  • Measured value: Sound power level

  • Measurement according to ISO 3746, survey method 3

Established sound emission:

Operating condition

A-weighted sound power level

Machining

76.5 dB(A)

All other operating conditions (tool change, movement of the axes etc.)

<70 dB(A)

The identification plate of the machine contains identifying information such as the serial number. You can find the identification plate and machine serial number at the following location: Connection panel

This machine has 4 axes: 3 linear axes and 1 rotational axis.

N4+: Linear axes X, Y, Z (The spindle moves along these axes.); Rotational axis A (The blank holder rotates about this axis.)

Dimensions (W/D/H)



Unit

Value

Footprint (approx.)

mm

in

340 x 320

13.4 x 12.6

Housing fully closed (approx.)

mm

in

360 x 450 x 470

14.2 x 17.7 x 18.5

Minimum required space for operation (approx.)

mm

in

710 x 810 x 470

28.0 x 31.9 x 18.5

Base system



Unit

Value

Weight (approx.)

kg

lbs

53

117

Axes

– Rotational axis A



4

+190° to -10°

Overvoltage category (IEC 60664-1)



II

External compressed air supply



Unit

Value

Min. / max. air pressure

bar

psi

4 / 8

60 / 120

Recommended air pressure

bar

psi

4.5

65

Compressed air consumption (approx.)

l/min

cfm

25/45 (at 4/8 bar)

0.9/1.6 (at 60/120 psi)

Air purity (ISO 8573-1:2010)



Solid particles: class 3

Water: class 4

Total oil content: class 3

Ambient conditions



Unit

Value

Relative humidity



80 %, non-condensing

Ambient temperature for storage/transport

°C

°F

‑20 – 60

-4 – 140

Ambient temperature for operation

°C

°F

10 – 35

50 – 95

Location type



Indoor

Maximum height above mean sea level

m

ft

2000

6561

Ambient air (IEC 60664-1)



Dust free, pollution degree 2

Electromagnetic radiation (IEC 61326-1)



Residential, business and commercial areas

Electromagnetic interference (IEC 61326-1)



Industrial environment

Spindle



Unit

Value

Model



SFN+ 400P (synchronous)

Maximum rotational speed

rpm

80,000

Nominal power under continuous operation (S1)

W

440

Nominal power under uninterrupted periodic operation (S6)

W

600

Peak power (Pmax)

W

800

Collet chuck diameter

mm

3

Tools



Unit

Value

Maximum number of tools in magazine



8

Maximum tool length

mm

35

Standard blank holder



Unit

Value

Maximum block dimensions (L/D/H)

mm

45 x 20 x 20

Cooling liquid system



Unit

Value

Cooling liquid

– For titanium



Drinking water

Emulsion of water and the cooling lubricant Tec Liquid Pro

Maximum amount of cooling liquid

l

qt

3.5

3.7

Sound emission

Operating condition

Unit

Value

Machining

dB(A)

(Undefined variable: GLB_ProductDataN4plus.SoundPowerLevel)

All other operating conditions

dB(A)

<70 dB(A)

Measuring conditions

ValueN4+

Machined material

MEDENTIKA® PreFace® abutment, titanium, 11.5 mm

Condition of the tools

new

Measured value

Sound power level

Measurement according to

ISO 3746, accuracy grade 3

Connections



Unit

Value

Pneumatic connection, push-in fitting (Diameter)

mm

6

Power connector

(and maximum power consumption in watts)

V AC

Hz

W

100 – 240

50/60

640

Glass fuse T6,3A L250V

Network connection

– Speed



RJ-45

10BASE/100BASE-TX/1000BASE-T (Auto-sensing)
