Applies to: K5+

Unpacking and positioning

Choosing the installation site

The installation site must meet the limit values and requirements in chapter Technical data.

 Technical data

Unpacking the machine

1. Remove the screws (marked orange) that secure the lid of the transport box.

   The number of screws may vary.



2. Lift off the lid (marked orange).



3. Remove the accessories.

4. Remove the upper padding (marked orange).



5. Remove the accessory case.

6. Remove the screws (marked orange) that secure the crate frame to the pallet.

   The number of screws may vary.



7. Lift the crate frame (marked orange) off the pallet.



CAUTION!Injuries caused by unsafe transportation

NOTICE! Housing damage by pulling on the housing

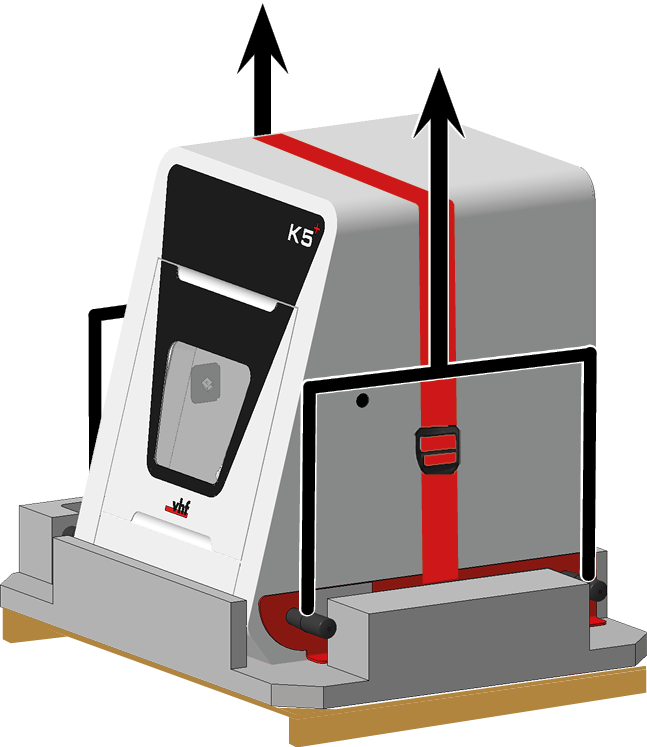

8. Grasp the handles of the carrying aid. Use as many people to lift the machine as required by law.



9. Place the machine on a surface that can carry the weight of the machine.

10. NOTICE! Make sure that the following safety distances are always maintained.

    Top view





    Side view





    Top view



    Blue area: workspace

    Side view

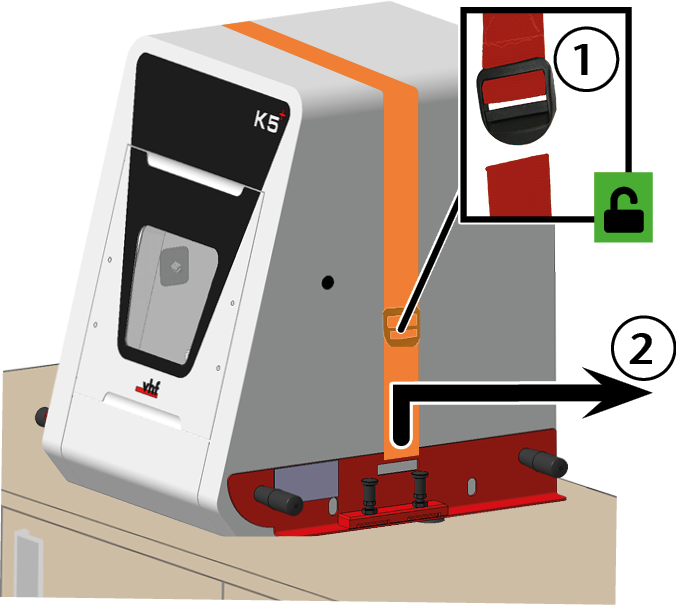

11. Use the buckle to loosen the strap (marked orange). Remove the strap.

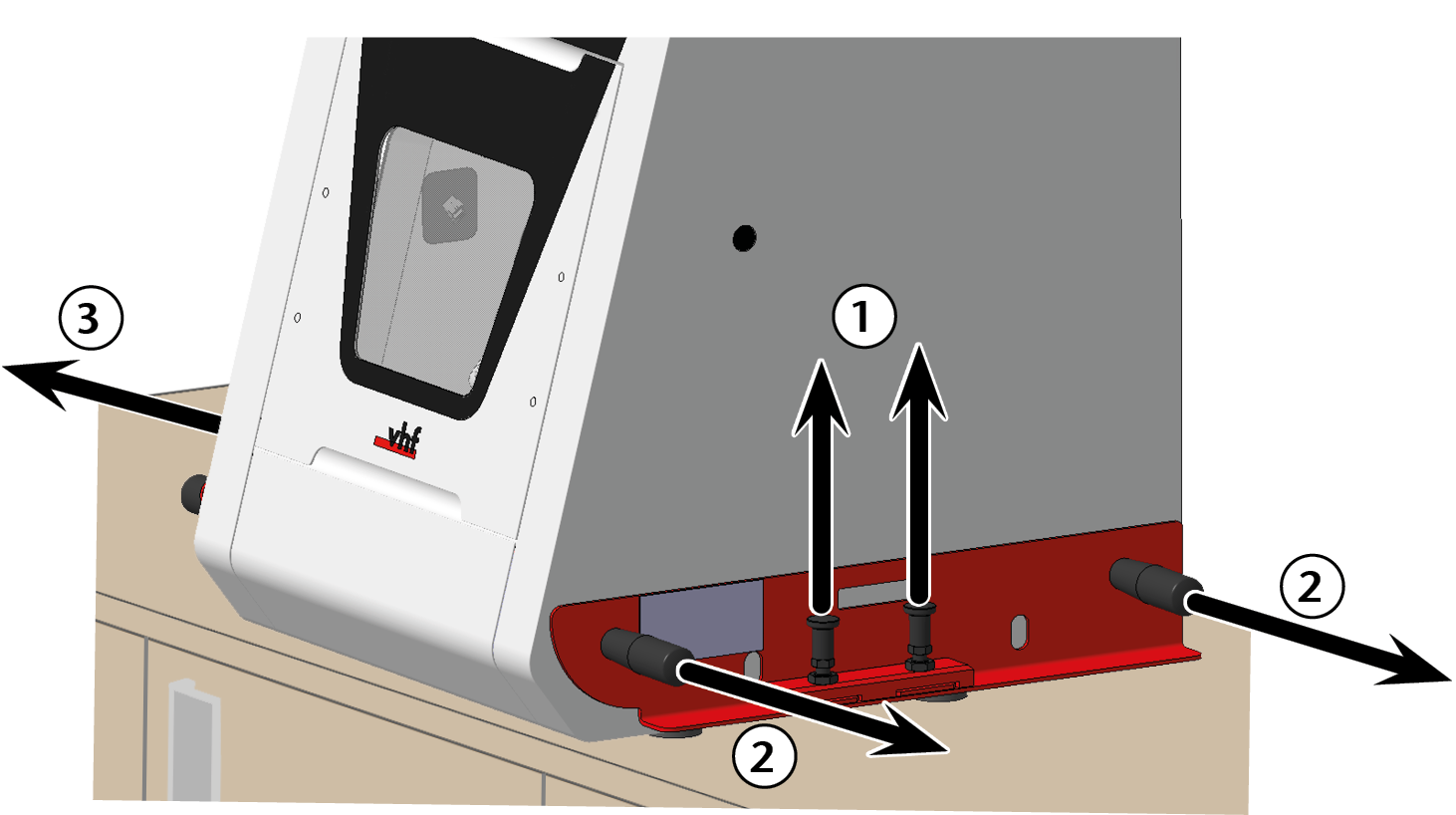

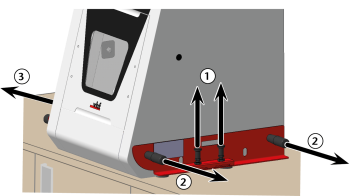

12. Pull the 2 locking bolts upwards and remove the carrying aid.



13. Remove the hood.

14. Keep all parts of the transport lock and the packing set for possible service returns.
