Applies to: K5+

Checking the scope of delivery

The installation steps up to operation are:

→

→

→

  • Unpack the machine and ensure that you have received the following items:

Machine, cables, hoses

1

2

3

4

5

Dental tools

6





Tools

7

Maintenance tools

8

9

10

11

12

13

Spare parts

14

  1. 1 x Machine K5+

  2. 1 x Ethernet network cable (type: straight)

  3. 1 x Power cable

  4. 1 x Pneumatic hose

  5. 1 x Compressed air regulator

  6. 1 x Administrated tool board (ATB)

  7. 1 x Key for the emergency release of the working chamber door

  8. 1 x Small cleaning brush for the blank holder

  9. 1 x Calibration set:

    • 1 x Micrometer

    • 3 x Calibration blank

    • 1 x Single-tooth radius cutter (P200-R1-40)

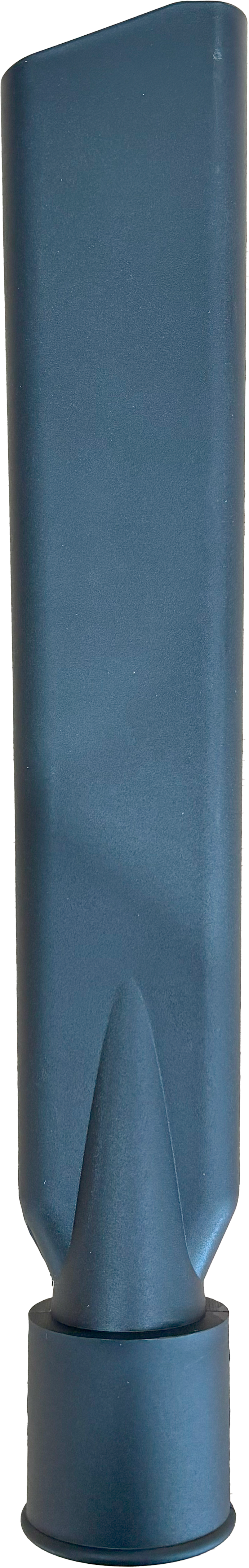

  10. 1 x Crevice nozzle

  11. 1 x Measuring pin

  12. 1 x Drill bit for tool positions (2.8 mm)

  13. 1 x Spindle service set

  14. 2 x Tool magazine insert

Not shown:

  • 1 x Brief machine information
  • 1 x Carrying aid for transporting the machine
  • 1 x Supplement about removing the carrying aid and transport lock
  • 4 x Spare screw (M4 x 12) for the tool magazine cover

  • Transport lock in the working chamber

    • 1 x Spindle lock cushion 1

    • 1 x Spindle lock cushion 2

    • 1 x Spindle lock cushion 3

  • Packing set

    • 1 x Transport box

    • 1 x Top and bottom cushion

    • 1 x Transport protection cover

    • 1 x Housing protection cover

Unpacking and positioning

  • Keep the packaging of the machine, the carrying aid and the transport lock for future transports.
