Applies to: DentalCNC 8.10 / R5

Drying the working chamber with compressed air

How can I manually activate the working chamber drying with compressed air?

The DirectClean Technology of the R5 improves the cleanliness of the machine, especially when alternating between wet and dry jobs. It consists of the following processes:

Blowing off the blank with compressed air
Drying the working chamber with heated compressed air
Discharging machining debris during machining with the ionizer for suitable blank types

The blowing and drying process is triggered by the sequence and type of jobs. You can find the corresponding details in the table below.

Job	followed by	Program	D
dry job	no job	Blowing off the blank1	2
wet job	no job	Drying	15*
dry job	any job	Blowing off the blank	2
wet job	no job	Drying	15*
wet job	dry job	Drying	15
wet job	wet job	Drying	15*

1 Can be deactivated in the DentalCNC settings

* Can be reduced to 2 minutes in the DentalCNC settings

D	Duration in minutes
	Blank inserted into the working chamber
	Blank(s) loaded from the blank magazine Part of the blank changer in which you store the blanks for automatic loading.

To minimize the cleaning time, we recommend executing all dry jobs before all wet jobs.

Manually starting the drying program

You can also start the drying program manually.

Open the DentalCNC Application settings with the following icon in the main icon bar:
Open the Machine maintenance view with the following icon in the local icon bar:

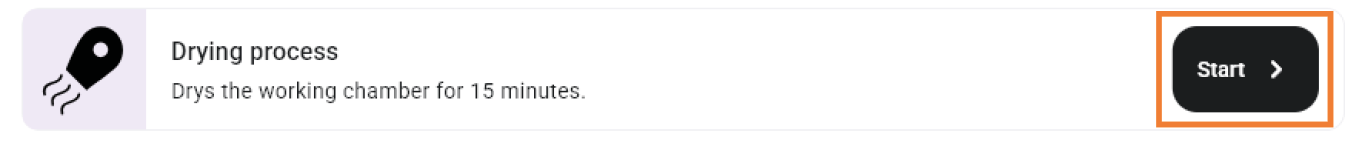

Select the following icon:
