Applies to: Wet grinding module

Machine overview

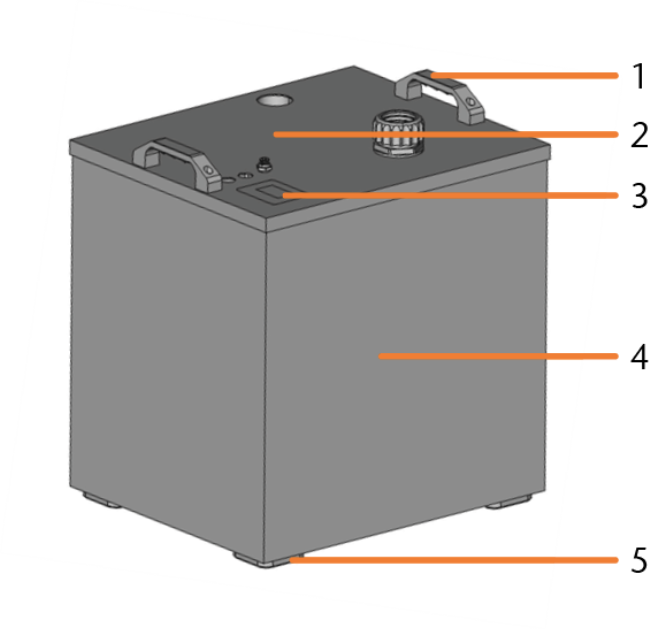

Front side of the machine



  1. Handle
  2. Module insert
  3. Display
  4. Housing
  5. Housing foot / castor

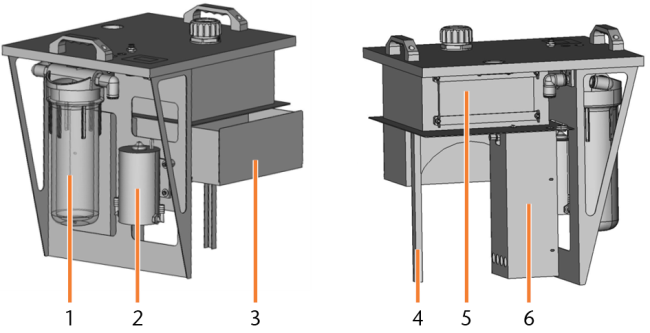

Module insert



  1. Fine filter container
  2. Cooling liquid pump
  3. Coarse filter drawer
  4. Support foot
  5. Flat pleated filter
  6. Measuring station

Connection panel



  1. Power connector
  2. Switch input for the cooling liquid pump
  3. Cooling liquid connection
  4. Connection for the suction hose
  5. Connection for the connecting hose

Display

The display shows you all the important data of the wet grinding module at a glance:

  • Fill level of the cooling liquid

  • Operating hours

  • Control version

  • Status of the cooling liquid pump

Fill level

 Display color Effect Example image

>120%

> approx. 200 mm

 Flashing red

Cooling liquid pump does not start

120 – 101%

approx. 200 – 180 mm

 Yellow

-

100 – 41%

approx. 180 – 110 mm

 Green

-

40 – 16%

approx. 110 – 80 mm

 Yellow

Intermittent warning tone below 30%

15%

approx. 80 mm

 Red

Cooling liquid pump stops, steady warning tone

A difference of 10% on the display corresponds to a difference of 1 l of liquid.

Identification plate and serial number

The identification plate of the machine contains identifying information such as the serial number. You can find the identification plate and machine serial number at the following location: Front side of the machine
