Applies to: N4+

Cleaning the nozzle plate

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

Clean the openings in the nozzle plate every time you clean the collet chuck.

  1. Have the interdental brush ready.
  2. Move the axes into the cleaning position by selecting the depicted icon in the Machining view in DentalCNC.
  3. Open the working chamber door.

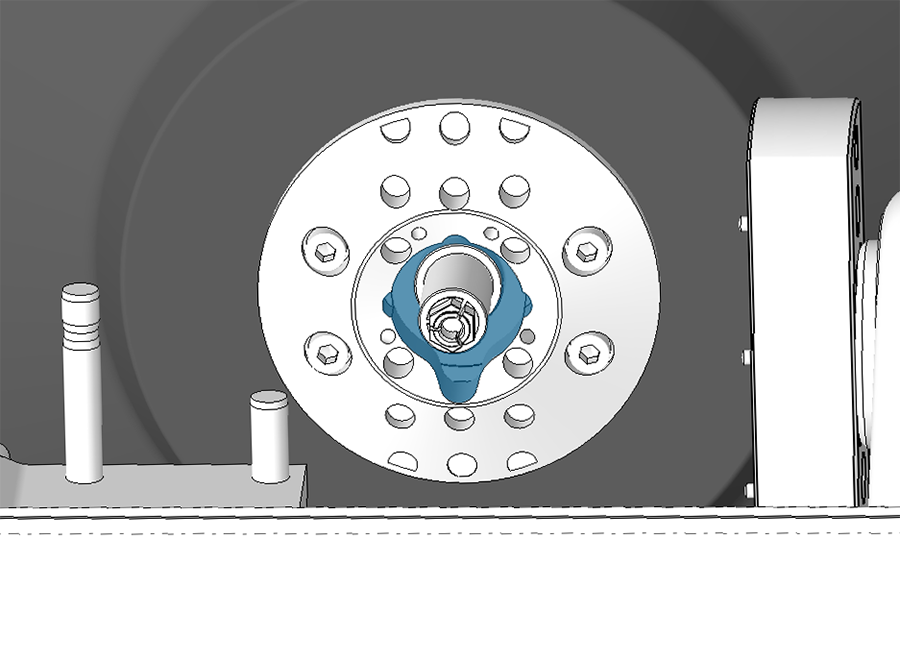

  4. Clean the smaller openings in the inner area of the nozzle plate. For this, move the interdental brush up and down.

    (The number of nozzles in your machine may vary.)

  5. Clean the area around the collet chuck with a small brush.



If necessary, apply some water with a cleaning agent and let it sit for some minutes.
