Applies to: E5

Exchanging the gasket of the working chamber door

The gasket of the working chamber door is clamped to the edge of the machine housing which surrounds the opening to the working chamber.

1. Have ready:

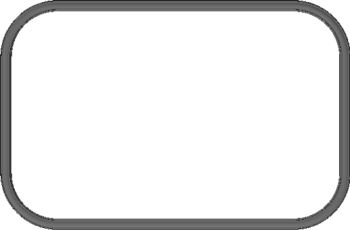

   1 x Spare gasket





   1 x Cleaning cloth





   1 x Wire cutter





2. Open the working chamber door.





3. Remove the existing door gasket. Start where the ends of the gasket meet.

4. Clean the surface on which the gasket is located with the cloth.













5. Clamp the spare gasket to the edge surrounding the opening to the working chamber:

   1. Align the spare gasket such that the gap in the gasket is at the top.

   2. Clamp the 1st end of the gasket to the center of the upper edge.

   3. Clamp the remaining part of the gasket on in a clockwise direction until just before the 1st end.

      Ensure that the entire gasket is firmly clamped to the edge.

   4. Clamp the 2nd end at the opening:

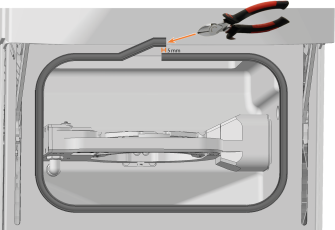

      1. Use wire cutters to cut the gasket to length with a projection of approx. 5 mm to the 1st end.

      2. Clamp the 2nd end gap-free to the 1st end at the opening.

















6. Check whether the working chamber door opens and closes correctly and whether the working chamber door lies flat.

7. If one of the points does not apply, adjust the placement of the gasket.
