Applies to: E5

Exchanging the fixing latches and clamping blocks on the lower service cover

If the lower service cover no longer holds, exchange the fixing latches and the clamping blocks if necessary.

    1. Have ready:

      • TX10 angle screwdriver



      • Spare fixing latch, number as required, maximum 4

        Separate latch: Socket left, plug right

      • Spare clamping blocks (optional), number as required, maximum 4

        Screw holes marked orange

    2. Close the working chamber door.

  1. Remove the lower service cover:

    1. Grasp the left and right sides of the cover.

    2. Pull the cover forward.





  2. Exchange the plugs of the damaged fixing latches on the service cover:

    1. Loosen the 2 screws and remove the connectors.

    2. Screw on the spare connectors in the same position.

    3.







  3. Exchange the sockets on the damaged fixing latches on the machine housing:

    1. Loosen the 2 screws and remove the jacks and clamping blocks.

    2. Screw on the spare sockets and clamping blocks in the same position.

      If necessary, use spare clamping blocks.

    4.







  4. Install the lower service cover:

    1. Place the top edge of the cover on the positioning bar above the system module shaft.

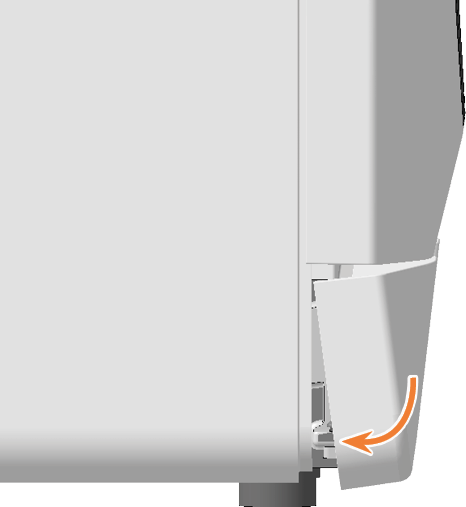

    2. Tilt the bottom half of the cover to the machine.

    3. Press the cover until it snaps into place.
