Applies to: E4

Exchange tool magazine inserts and associated holders

NOTICE

Machine and tool damage if not all tools are removed

DentalCNC always drills holes in all tool magazines in the working chamber.

If a tool remains in the working chamber, a collision will ensue.

  • Always remove all tools from the working chamber when exchanging inserts.

  • Always exchange all inserts together.

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

New inserts are delivered without holes for the tools. The holes must be drilled into the inserts with the machine.

In case of a defect, you can replace the holders for the inserts separately.

Tool magazine insert and AirTool insert (marked orange)

  1. Have ready:

    • 1 x Angle screwdriver TX10 and TX20



    • 1 x Drill bit for tool positions (2.8 mm)



      • If you want to exchange the inserts:

    • 1 x Tool magazine insert for 16 tools

      1 x Tool magazine insert for 6 tools



      • and

    • 1 x AirTool insert



      • If you want to exchange at least one of the holders:

    • 1 x Holder for tool magazine insert



      • and / or

    • 1 x Holder for AirTool insert



  2. Quit DentalCNC.

  3. Open the working chamber door.

  4. Switch off the machine at the main power switch.

  5. CAUTION!Wear gloves.

  6. Pull the tool magazine off the tool magazine holder.

  7. NOTICE! Remove all tools from the tool magazine and remove the AirTool from insert C1.

  8. If the screw to the left of the AirTool insert C1 is covered with a cover cap, remove the cover cap with a pointed tool.



  9. Unscrew the screw to the left of AirTool insert C1.

  10. Use the angle screwdriver to push the holder with insert out of the opening from below.

  11. Push the insert out of the holder.







  12. Get the required spare parts.

  13. Press the AirTool insert into the rectangular opening of the holder.

  14. Clean the opening with a damp cloth.

  15. Insert the holder into the opening and screw it down.







  16. If the screw opening next to the AirTool insert was covered with a cover cap, cover the screw opening with a new cover cap.



  17. Unscrew the 2 screws of the tool magazine insert holder on the underside of the tool magazine.

    • The holder for the tool magazine insert and the screws slide into your hand.

  18. Press the tool magazine insert down out of the opening.







    • The tool magazine insert slides out of the opening into your hand.



  19. Get the required spare parts.

  20. Insert the tool magazine insert into the opening from below.

  21. Insert the tool magazine insert holder into the tool magazine.

  22. Insert the 2 screws into the screw holes in the holder and tighten it.

  23. Place the tool magazine on the tool magazine holder.

    24.







  24. Close the working chamber door.

  25. Switch on the machine at the main power switch.

  26. Start DentalCNC.

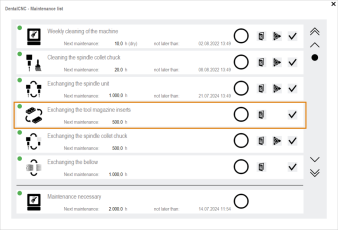

  27. Open the Maintenance section window with the following icon in the main icon bar:

  28. Select the following icon of the Exchange tool magazine inserts entry:

  29. Follow the instructions in the documentation for DentalCNC and drill the tool positions using the provided drill bit.
