Applies to: E4

Exchanging the tank cover

1. Have ready:

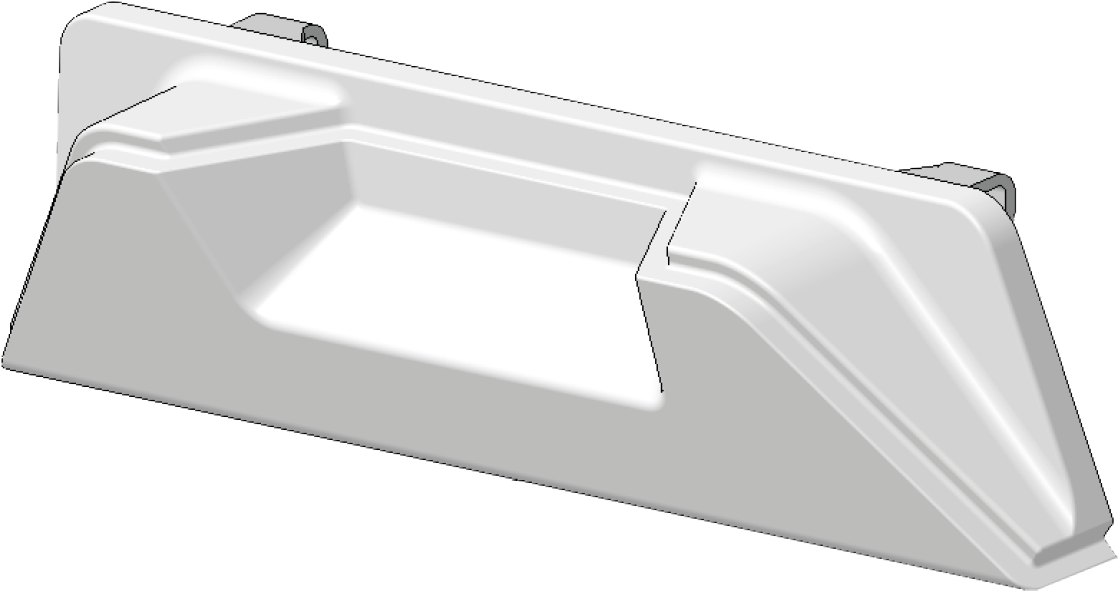

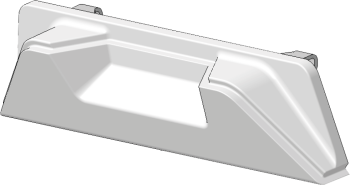

   1 x Spare tank cover





   1 x 10 mm wrench





2. Pull the tank out of the machine.

   If you exchange the cooling liquid tank cover, drain and clean the cooling liquid tank.

   Exchanging the cooling liquid and cleaning the cooling liquid tank

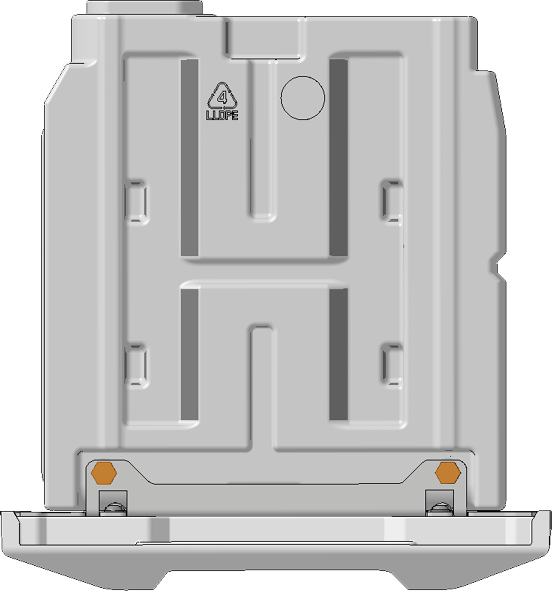

3. Use the wrench to unscrew the 2 screws (marked orange) that secure the tank cover to the tank.

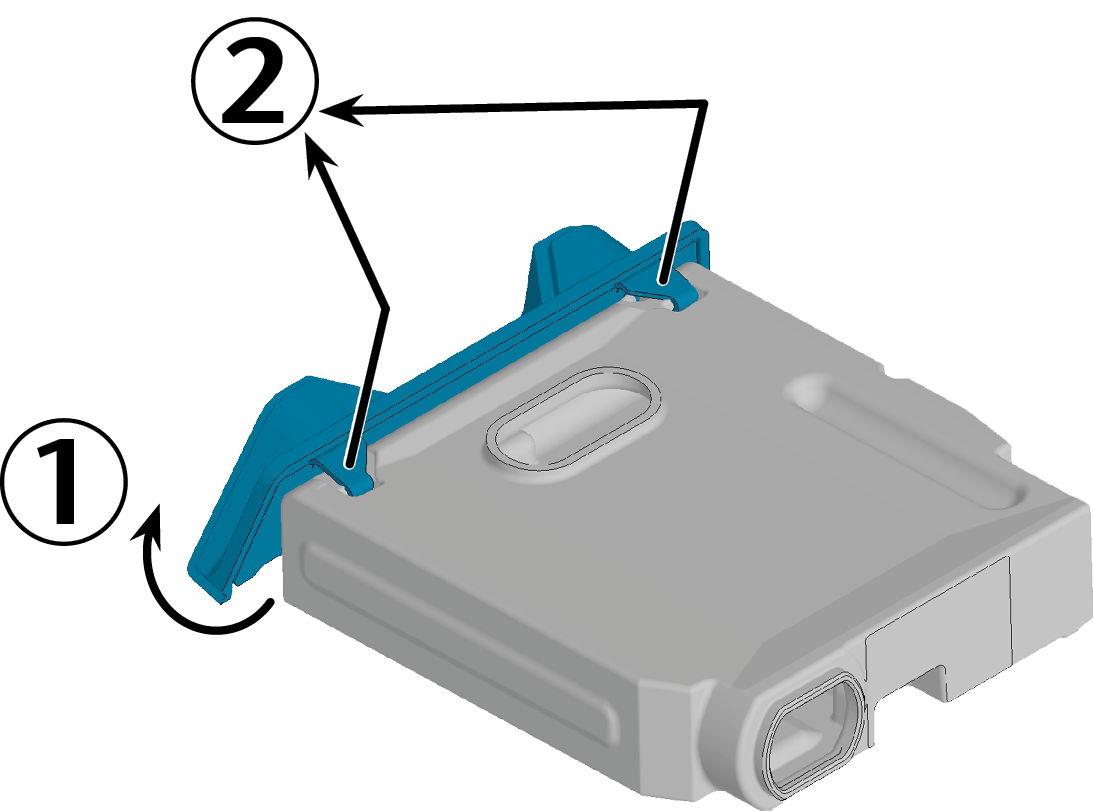

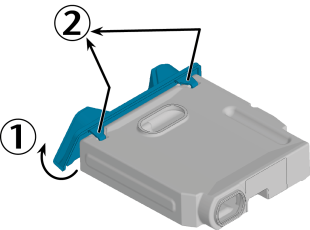

4. Remove the tank cover from the tank.

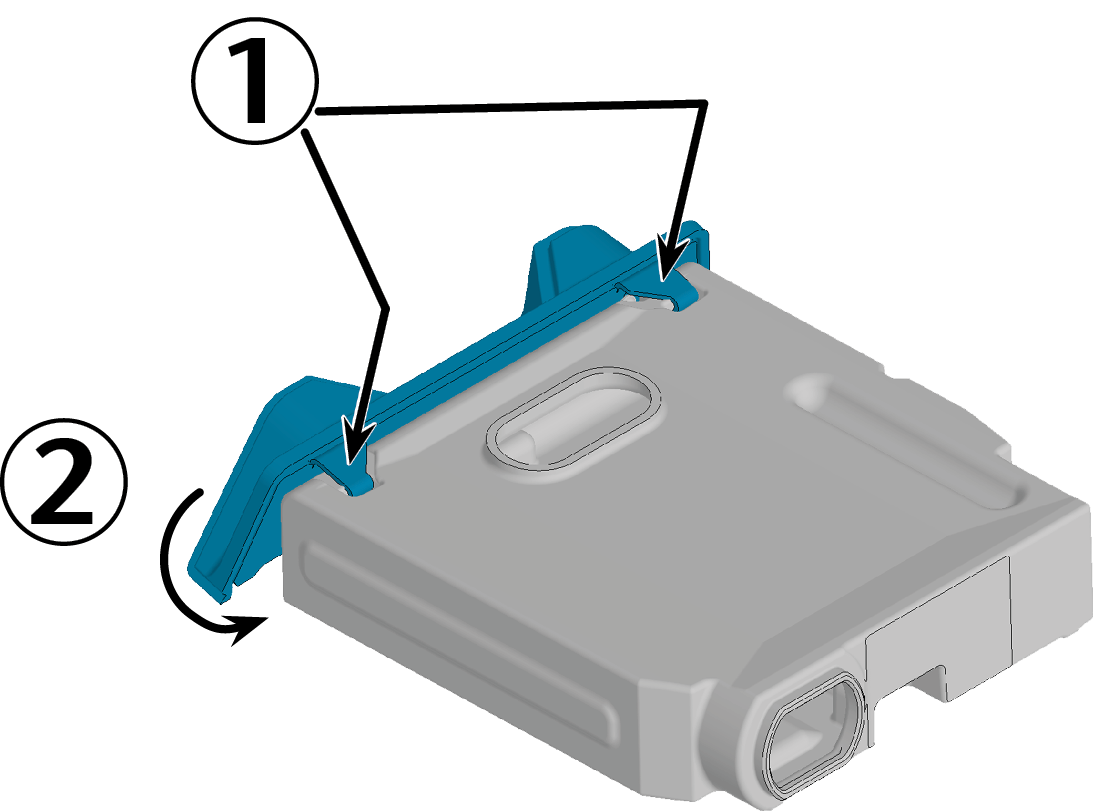

5. Hook the tabs of the spare tank cover into the provided recesses (marked in blue) on the top of the tank.

6. Use the wrench to tighten the 2 screws (marked orange) that secure the tank cover to the bottom of the tank.









7. If you are exchanging the cooling liquid tank cover, insert the return mat, both filter maps and strainer basket into the cooling liquid tank.

8. Fill cooling liquid into the tank.

   Exchanging the cooling liquid and cleaning the cooling liquid tank

9. Insert the tank into the machine.
