Transportation and storage

WARNING

Injuries caused by unsafe transportation

If you transport the machine unsafely, the machine may slip and cause injuries.

Parts that are not properly mounted can fall and injure you and/or become damaged.

  • Only stack machines that are properly packed and secured against slipping.

  • Do not stack any loads on the machines.
  • Only transport packed machines on the provided pallet. Secure the machine against slipping.
  • Ensure that only trained personnel transport the machine to and from the installation site.
  • Always transport the machine in an upright position.
  • Transport and position the machine with as many people as required for the weight of the machine in accordance with local and / or national laws and regulations.
  • Grip unpacked machines only by the left and right handles at the bottom of the machine. Always carry the machine in an upright position.



NOTICE

Machine damage due to improper transport and / or storage

  • Ensure that all conditions set forth in the chapter are met during the entire transport and / or storage period Technical data.

Transporting the machine in the carton

  • Grasp the carton by the recessed handles.

Storing the machine

  1. Clean the machine.

    Cleaning the machine

  2. Switch off the machine at the main power switch.

  3. Disconnect the machine from all lines.

Putting the machine back into operation after storage

  • Follow the instructions for initial start-up.

Commissioning

Packing the machine

Preparing transport

  1. Remove the blank from the working chamber if present.

  2. Clean the machine and move the axes to the default position.

    Cleaning the machine

  3. In case of overseas transport, take proper measures against corrosion.

Watch the video

YouTube video – When viewing this video, personal data is sent to YouTube, LLC, USA. Privacy statement

Packing the machine

  1. Have ready:

    • 1 x Transport carton



    • 1 x Inserter



    • 1 x Top pad



    • 1 x Bottom pad



    • 1 x Support pad



    • 1 x Transport lock, 3 parts



    • 1 x Accessory pad



    • 1 x Accessory cover



    • 5 x Plastic dowel



    • 1 x Transport protection cover



    • 1 x Housing protection cover



    • 1 x Adhesive tape



  2. If possible, use the original packaging. If the original packaging is not available, use packaging of similar size and quality.

    Original packaging is available from customer service.

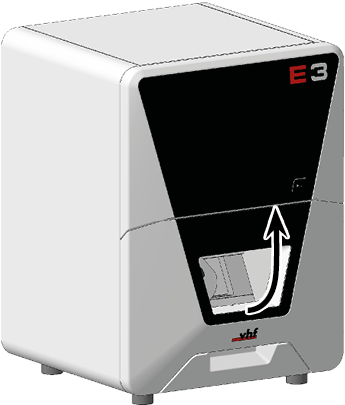

  3. Open the working chamber door.

  4. DANGER!Switch off the machine at the main power switch.

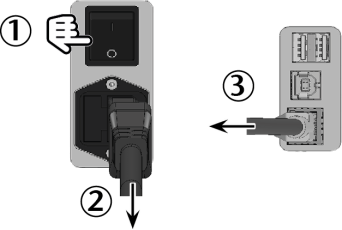

  5. Disconnect the machine from all lines.

    6.

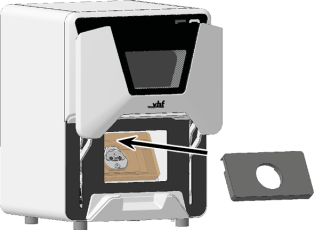

  6. Attach the transport lock in the working chamber:

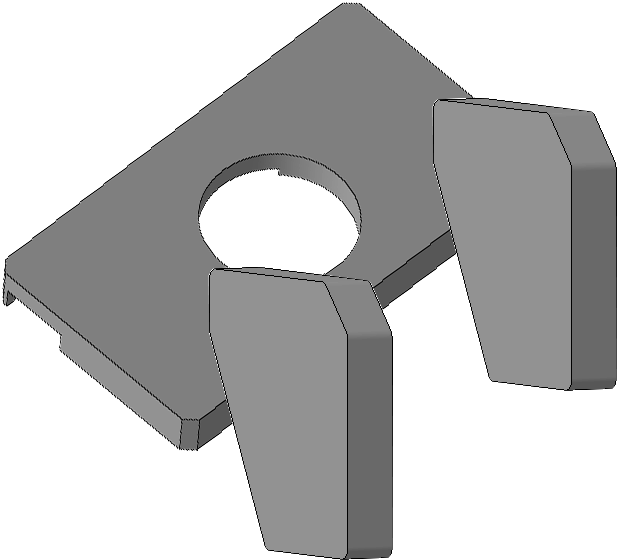

    1. Place the large part of the transport lock with the circular recess onto the blank holder.

      Make sure that the elongated recess is at the top on the back.

    2. Place the small parts of the transport lock vertically on the left and right in the working chamber.

    7.



  7. Position the transport carton on a surface that can support the machine weight including the packing set.

    • Open the carton at the front with the label Open here.

    • Recommendation: The back of the carton should touch a solid wall. Otherwise, you will need a 2nd person for inserting the machine.

  8. Place the inserter in front of the transport carton such that the handle (marked green) is on the opposite side of the carton opening.

    9.

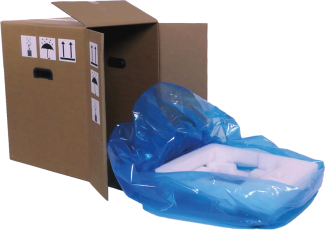

  9. Spread out the blue transport protection cover evenly on the inserter with the opening facing upward.

  10. Center the bottom pad in the protective transport cover.

  11. Press down the transport protection cover on all sides such that the surface of the bottom pad is exposed.

  12. Slide your hands under the machine until you have a firm grip on the underside of the machine.

  13. Lift the machine into the bottom pad:

    • The back of the machine points towards the carton opening.

    • The left and right recessed grips in the bottom pad provide room for your hands.

    14.





  14. Place the support pad in the bottom pad and close the working chamber door until it rests on the support pad.

  15. Place the protective housing cover over the machine from above.





  16. Place the top pad on the machine top.

  17. If customer service has asked you to send in accessories, stow the items in the accessory pad.

  18. Attach the accessory cover to the accessory pad using the plastic dowels.

  19. Place the accessory pad on the top pad.

    20.

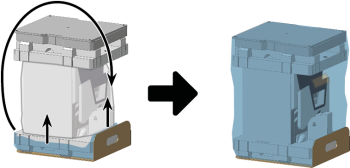

  20. Pull the transport protection cover over the machine on all sides until the ends meet in front of the working chamber door.

  21. Tape the ends of the transport protection cover together with adhesive tape.

  22. If the back of the transport carton is not in contact with a solid wall, have a 2nd person hold the carton in place.

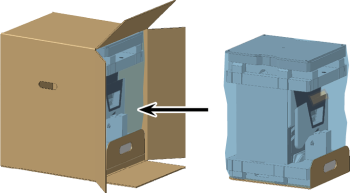

  23. Slowly slide the machine including the inserter into the transport carton.

    The machine must not slip off the inserter.

  24. Close the transport carton.

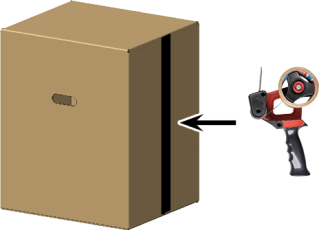

  25. Tape the closing flaps together with adhesive tape.
